19″ Raspberry Pi Rackmount Kit | 12x Pi Slot | 24x Connector | 3.00U
>> Suitable for all Single Board Computers (SBC) with Raspberry Pi form factor
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
12x Pi in the 19 inch server cabinet
With the „UM-SBC-211“ you can neatly accommodate up to 12 Raspberry Pi´s or similar SBCs on 3.00U in the 19″ Rack.
All of our rackmount kits are individually configurable. Choose the configuration that suits you below.
This Raspberry Pi rackmount kit is specially designed to fit 12x single board computers into the 19 inch rack.
- All assembly and plug-in connections have been matched.
- We use keystone inline couplers for our connectors.
- USB and network ports on the front.
- Single Board Computers are not in the scope of supply.
UM-SBC-211
Delivery time: 4-5 days In Stock
Supported Models:
Raspberry Pi 2B
Raspberry Pi 3B
Raspberry Pi 3B+
Raspberry Pi 4B
SBC with Raspberry Pi form factor | Details
Rack: 19 inch
Rack Unit: 3.00U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 132.2 x 310 mm
*) Dimensions = width/height/depth
Price starting from:
185,88 €
12x Pi in the 19 inch server cabinet
With the „UM-SBC-211“ you can neatly accommodate up to 12 Raspberry Pi´s or similar SBCs on 3.00U in the 19″ Rack.
All of our rackmount kits are individually configurable. Choose the configuration that suits you below.
This Raspberry Pi rackmount kit is specially designed to fit 12x single board computers into the 19 inch rack.
- All assembly and plug-in connections have been matched.
- We use keystone inline couplers for our connectors.
- USB and network ports on the front.
- Single Board Computers are not in the scope of supply.
Configurator
Configure the Rack Mount Kit according to your requirements here.
Available build space for Raspberry Pi add-on boards
If you are toying with the idea of accommodating additional boards such as PoE-HAT or UPS in the rack, you will find the available scope below.
Insert D:
From the lower edge of the circuit board to the lower edge of the slot, you have 25.2mm available.
- PoE-HAT: There is 4mm space from the fan screw head to the lower edge of the slot.
- USV: There is 2mm space between the top edge of the GPIO pins and the bottom edge of the slot.

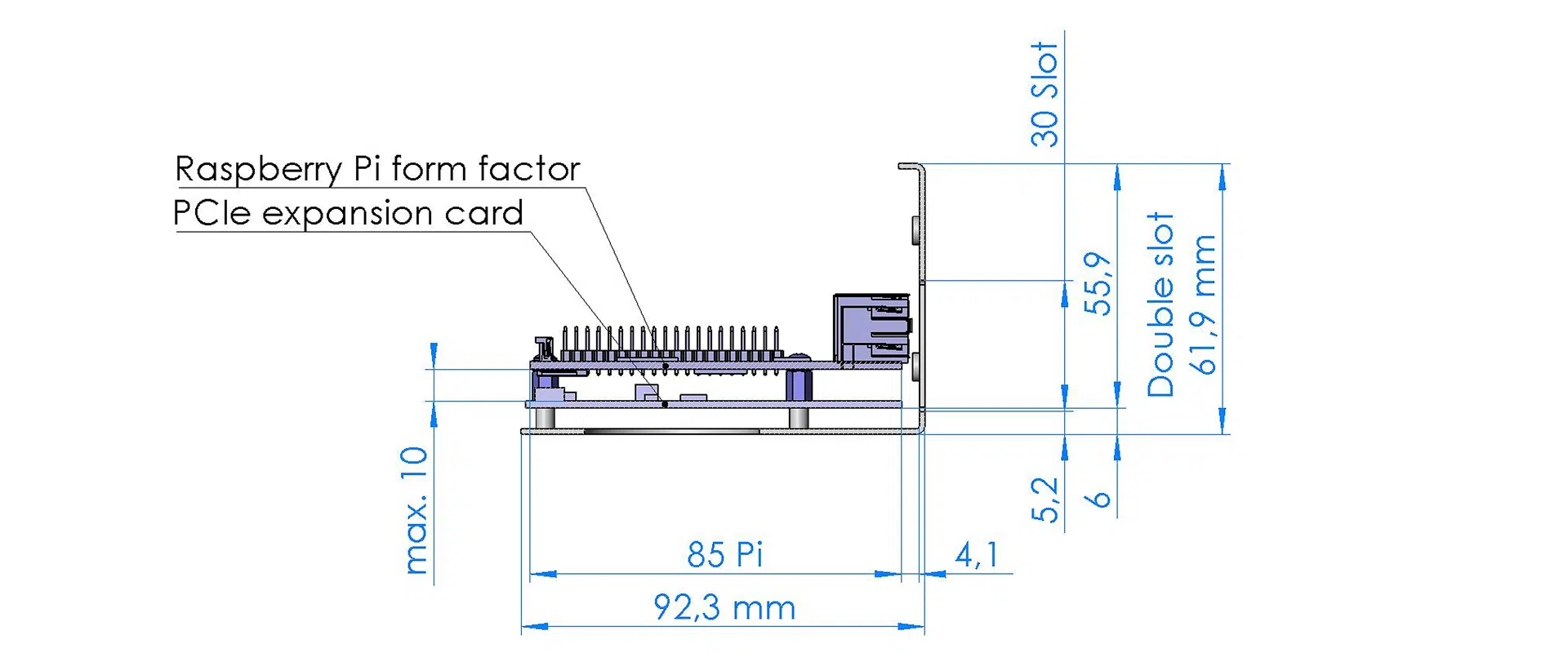

Insert E, F:
From the lower edge of the circuit board to the lower edge of the slot, you have 56.4mm available.
- PoE-HAT: There is 27.2mm space from the fan screw head to the lower edge of the slot.
- USV: There is 25.2mm space between the top edge of the GPIO pins and the bottom edge of the slot.
Single Board Computer with identical form factor
As mentioned above, you can mount single board computers with the same form factor as the Pi 2 in the Raspberry Pi Rackmount Kit. Pay attention to the basic dimensions (framed in yellow) of the Pi and the drilling pattern/diameter (framed in red).
If they match, your single-board computers are compatible with our rack and can therefore be used without any problems. Single board computers tested by us for compatibility are: ASUS Tinker Board | ODROID-C1+
