Intel
Features of our Intel Rack Mounts
Assembly of my Intel Rackmount Kit
The Intel is attached to the rackmount kit using Velcro straps. So no screws are necessary and you don’t have to unscrew your device. The rackmount kit comes fully assembled and ready for use.
All rackmount kits are designed to support good air circulation. Using our self-developed spacers in combination with the Velcro straps, the Intel is mounted in such a way that the existing ventilation openings are not affected. This allows us to achieve a time-saving and device-friendly assembly solution.
Air System
Cutouts for air circulation are provided at the points where the Intel and its power supply unit are mounted and bring sufficient cooling in your system.
Rail System
With the rail system you can easily extend the Intel by 200 mm. The fully extendable telescopic rails allows for easy access and makes commissioning and maintenance work on the device much easier.
Strap System
The Intel is attached to our rackmount kits in a screwless, secure and non-slip manner using a special strap system, without screws or other aids affecting the device. To avoid damage to the housing, the straps are fixed with high-quality Velcro. This also prevents a possible loss of warranty.
Socket Management
Using a high-quality Keystone inline coupler and cable combination, we bring the Intel connectors from the back to the front of the rack mounting kit. The keystones are installed flush and make further cabling in the rack much easier. Each socket is labeled with a front foil.
Scope of supply
All Intel rack mount kits have the following as standard included in the scope of supply.
- – Rack Mount Screw Set
- – Cable Tie 100mm
- – Cable Tie 300mm
- – Velcro Strap with Spacer
- – Product Data Sheet
- – Assembly Instructions
Intel Rackmount Kit accessories
In order to tailor your Intel rackmount kit set to your individual needs, a configurator with a large selection and many combination options is available on each product page.
Our Intel Rack Mount Kits
What is the right Intel Rack Mount Kit for me?
We currently offer Intel Rackmount Kits, all supporting:
- – Intel NUC 8 Pro
- – Intel NUC 10 Performanc
- – Intel NUC 11 Essential
- – Intel NUC 11 Performance
- – Intel NUC 11 Pro
- – Intel NUC 12 Pro
- – Intel NUC 13 Pro
1.00U Intel NUC Rack Mount for 19″ racks
The following Intel NUC rackmount kits are specifically designed and developed for installation in a 19″ rack on 1.00U.
UM-INT-204
This Intel NUC Rack Mount Kit is designed to mount one Intel NUC 11 Essential Mini PC with power supply and 7 ports in 19 inch racks on 1.00U. Select the connector configuration that matches your Intel NUC product model. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200mm.
UM-INT-205
This Intel NUC Rack Mount Kit is designed to mount one Intel NUC 8 Pro Kit Slim / Intel NUC 10 Performance Kit Slim / Intel NUC 11 Performance Kit Slim / Intel NUC 11 Pro Kit Slim / Intel NUC 12 Pro Kit Slim / Intel NUC 13 Pro Kit Slim Mini PC with power supply and 7 ports in 19 inch racks on 1.00U. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Intel NUC product model. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200mm.
UM-INT-208
This Intel NUC Rack Mount Kit is specially designed for mounting two Intel NUC 8 Pro Kit Slim / Intel NUC 10 Performance Kit Slim / Intel NUC 11 Performance Kit Slim / Intel NUC 11 Pro Kit Slim / Intel NUC 12 Pro Kit Slim / Intel NUC 13 Pro Kit Slim Mini PC with power supplies and 6 ports in 19 inch racks on 1.00U. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Intel NUC product model. The Intel NUC PCs can be mounted in either directions. Ports face forward or power switch faces front. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or temporarily/permanently cover a free slot with our “Slot Cover”.
UM-INT-210
This Intel NUC Rack Mount Kit is specially designed for mounting three Intel NUC 8 Pro Kit Slim / Intel NUC 10 Performance Kit Slim / Intel NUC 11 Performance Kit Slim / Intel NUC 11 Pro Kit Slim / Intel NUC 12 Pro Kit Slim / Intel NUC 13 Pro Kit Slim Mini PC with power supplies on 1.00U in a 19-inch rack. The Intel NUC PCs can be mounted in either directions. Ports face forward or power switch faces front. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or temporarily/permanently cover a free slot with our “Slot Cover”.
1.00U Intel NUC Rack Mount for 10″ racks
The following Intel NUC rackmount kits are specifically designed and developed for installation in a 10″ rack on 1.00U.
UM-INT-306
This Intel NUC Rack Mount Kit is specially designed for mounting one Intel NUC 8 Pro Kit Slim / Intel NUC 10 Performance Kit Slim / Intel NUC 11 Performance Kit Slim / Intel NUC 11 Pro Kit Slim / Intel NUC 12 Pro Kit Slim / Intel NUC 13 Pro Kit Slim Mini PC with power supplies and 3 ports in 10 inch racks on 1.00U. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Intel NUC product model. The Intel NUC PCs can be mounted in either directions. Ports face forward or power switch faces front. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200mm.
1.33U Intel NUC Rack Mount for 19″ racks
The following Intel NUC rackmount kits are specifically designed and developed for installation in a 19″ rack on 1.33U.
Different heights? No problem
The cases of the Intel NUC models from the Pro and Performance Kit series have two form factors, Slim and Tall. They differ greatly in height. From 36 mm – 54 mm.
If you want to combine different NUC Pro / Performance Kit models with different form factors, our “Intel NIC Slot Adapter” will help you. Use the Slot Adapter to compensate for the height differences of the form factors.
UM-INT-207
This Intel NUC Rack Mount Kit is specially designed for mounting two Intel NUC 8 Pro Kit Slim & Tall / Intel NUC 10 Performance Kit Slim & Tall / Intel NUC 11 Performance Kit Slim & Tall / Intel NUC 11 Pro Kit Slim & Tall / Intel NUC 12 Pro Kit Slim & Tall / Intel NUC 13 Pro Kit Slim & Tall Mini PC with power supplies and 12 ports in 19 inch racks on 1.33U. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Intel NUC product model. The Intel NUC PCs can be mounted in either directions. Ports face forward or power switch faces front. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or temporarily/permanently cover a free slot with our “Slot Cover”.
UM-INT-209
This Intel NUC Rack Mount Kit is specially designed for mounting three Intel NUC 8 Pro Kit Slim & Tall / Intel NUC 10 Performance Kit Slim & Tall / Intel NUC 11 Performance Kit Slim & Tall / Intel NUC 11 Pro Kit Slim & Tall / Intel NUC 12 Pro Kit Slim & Tall / Intel NUC 13 Pro Kit Slim & Tall Mini PC with power supplies on 1.33U in a 19-inch rack. The Intel NUC PCs can be mounted in either directions. Ports face forward or power switch faces front. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or temporarily/permanently cover a free slot with our “Slot Cover”.
1.66U Intel NUC Rack Mount for 19″ racks
The following Intel NUC rackmount kits are specifically designed and developed for installation in a 19″ rack on 1.66U.
Different heights? No problem
The cases of the Intel NUC models from the Pro and Performance Kit series have two form factors, Slim and Tall. They differ greatly in height. From 36 mm – 54 mm.
If you want to combine different NUC Pro / Performance Kit models with different form factors, our “Intel NIC Slot Adapter” will help you. Use the Slot Adapter to compensate for the height differences of the form factors.
UM-INT-001
This Intel NUC Rack Mount Kit is specially designed for mounting two Intel NUC 8 Pro Kit Slim & Tall / Intel NUC 10 Performance Kit Slim & Tall / Intel NUC 11 Performance Kit Slim & Tall / Intel NUC 11 Pro Kit Slim & Tall / Intel NUC 12 Pro Kit Slim & Tall / Intel NUC 13 Pro Kit Slim & Tall Mini PC with 12 ports in 19 inch racks on 1.66U. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Intel NUC product model. Optionally, you can configure temporarily/permanently cover a free slot with our “Slot Cover”.
1.66U Intel NUC Rack Mount for 10″ racks
The following Intel NUC rackmount kits are specifically designed and developed for installation in a 10″ rack on 1.66U.
Different heights? No problem
The cases of the Intel NUC models from the Pro and Performance Kit series have two form factors, Slim and Tall. They differ greatly in height. From 36 mm – 54 mm.
If you want to combine different NUC Pro / Performance Kit models with different form factors, our “Intel NIC Slot Adapter” will help you. Use the Slot Adapter to compensate for the height differences of the form factors.

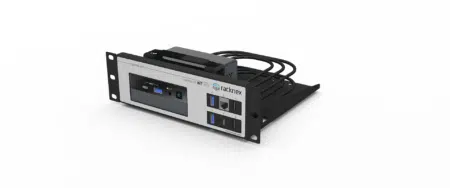

UM-INT-303
This Intel NUC Rack Mount Kit is specially designed for mounting one Intel NUC 8 Pro Kit Slim & Tall / Intel NUC 10 Performance Kit Slim & Tall / Intel NUC 11 Performance Kit Slim & Tall / Intel NUC 11 Pro Kit Slim & Tall / Intel NUC 12 Pro Kit Slim & Tall / Intel NUC 13 Pro Kit Slim & Tall Mini PC with 6 ports in 10 inch racks on 1.66U. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Intel NUC product model.
