ASUS / Intel NUC Slim and Tall Rackmount Kit | 3x Slot | 19 inch | 1.33U | Rail System 200mm

Mount three ASUS / Intel NUCs in the 19 inch rack

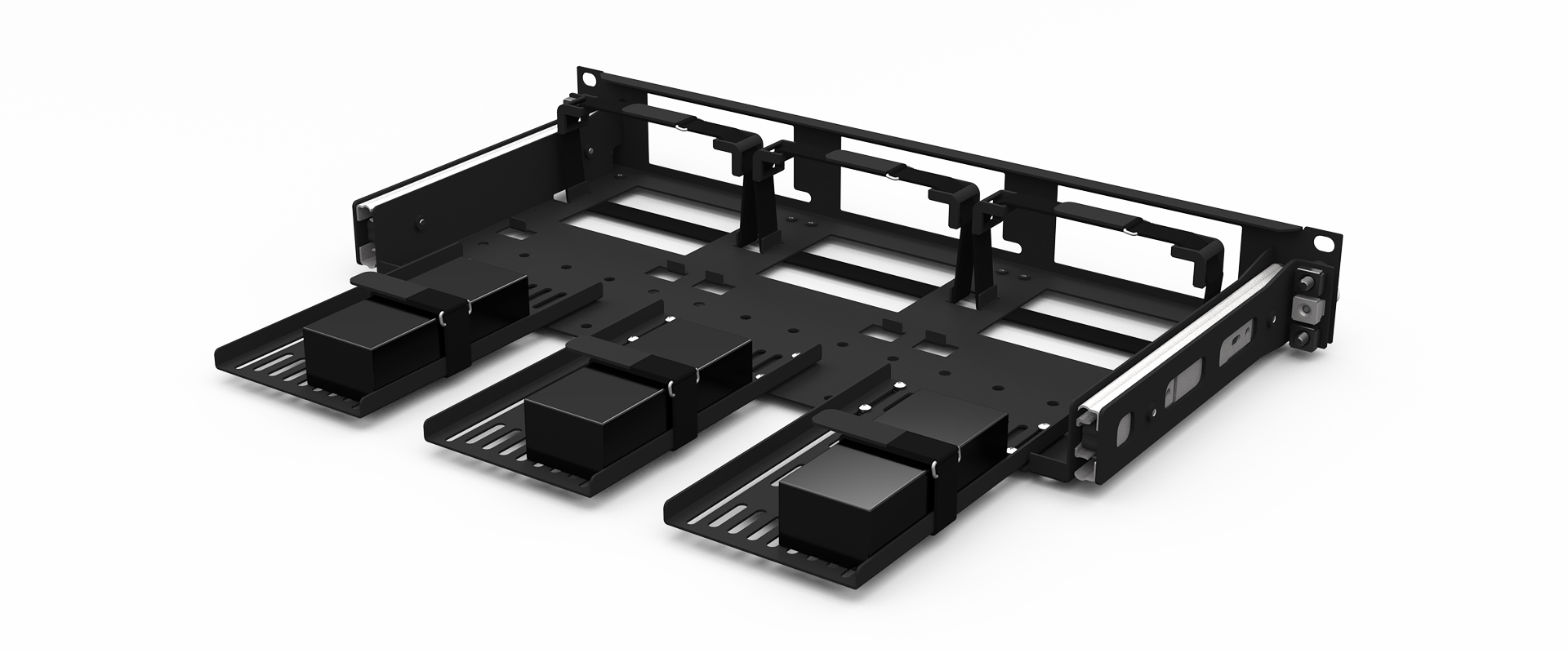

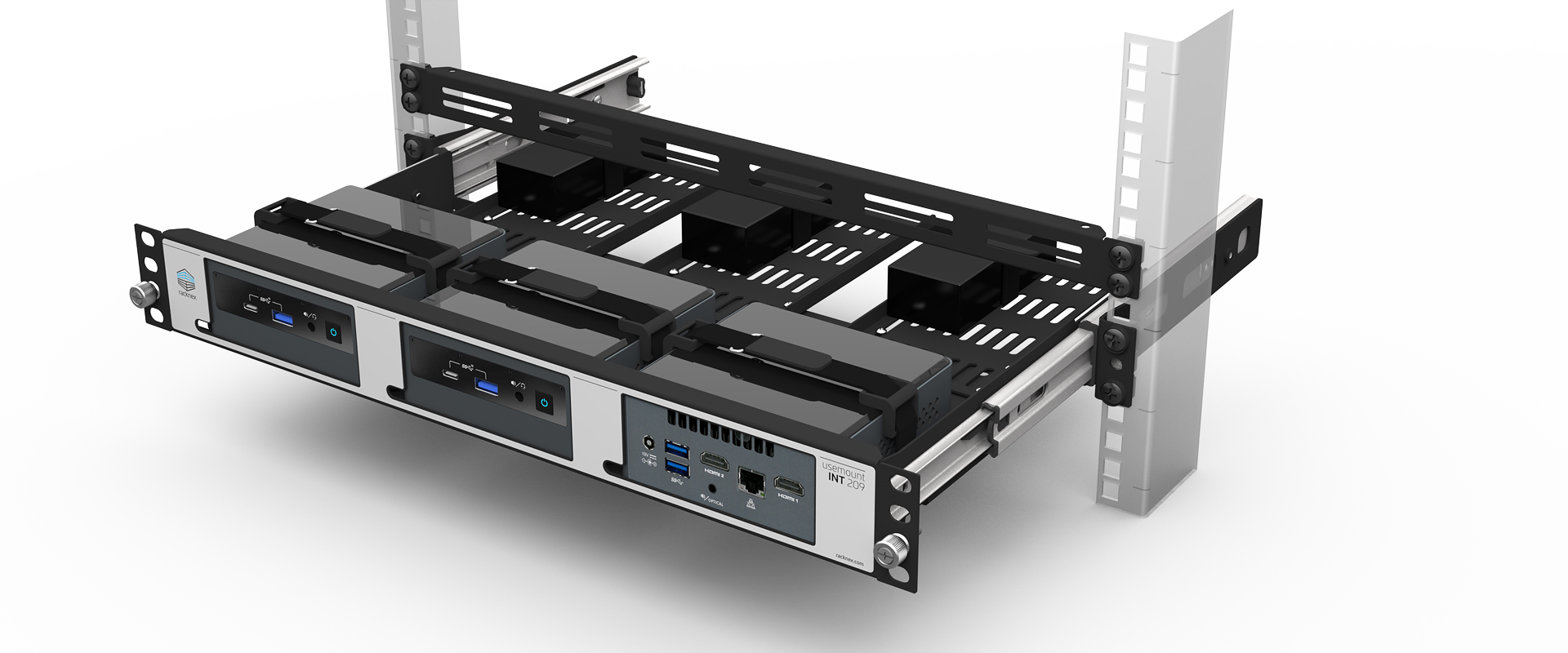

The ASUS / Intel NUC Rack Mount Kit “UM-INT-209” allows mounting three ASUS / Intel NUCs with form factor Tall on 1.33U in a 19 inch rack.

ASUS / Intel NUCs with form factor tall are those that have a height of 52 – 54 mm. The ASUS NUC 12 Pro Tall, ASUS NUC 13 Pro Tall, ASUS NUC 14 Pro Tall, Intel NUC 8 Pro Kit Tall, Intel NUC 10 Performance Kit Tall, Intel NUC 11 Performance Kit Tall, Intel NUC 11 Pro Kit Tall, Intel NUC 12 Pro Kit Tall and Intel NUC 13 Pro Kit Tall are fully supported.

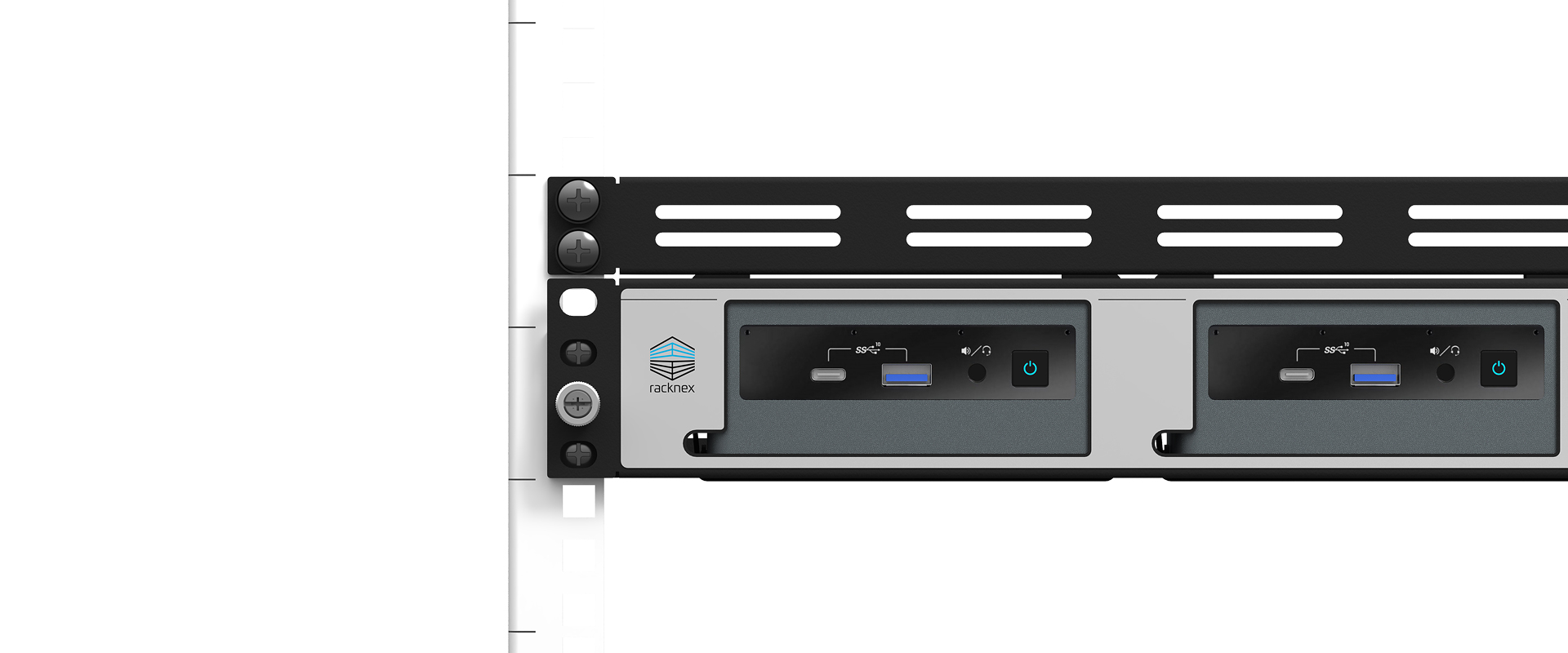

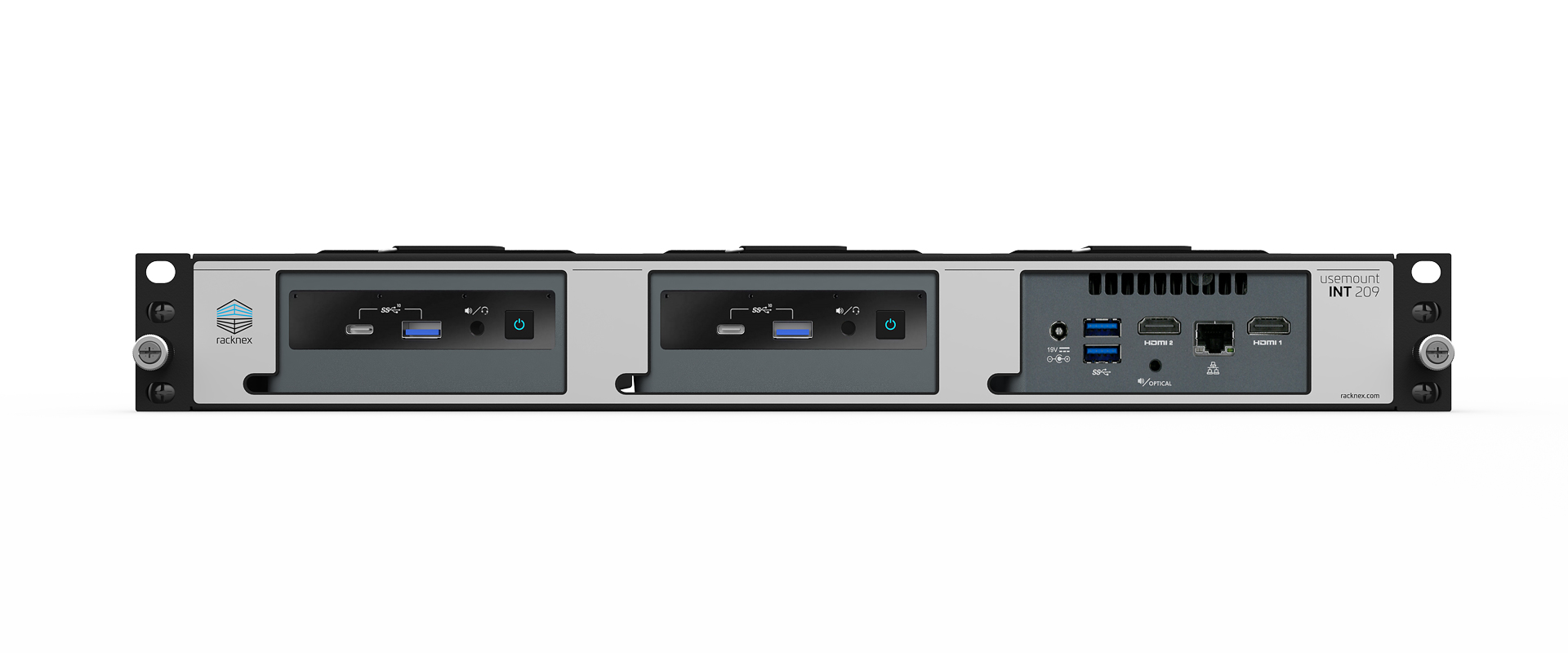

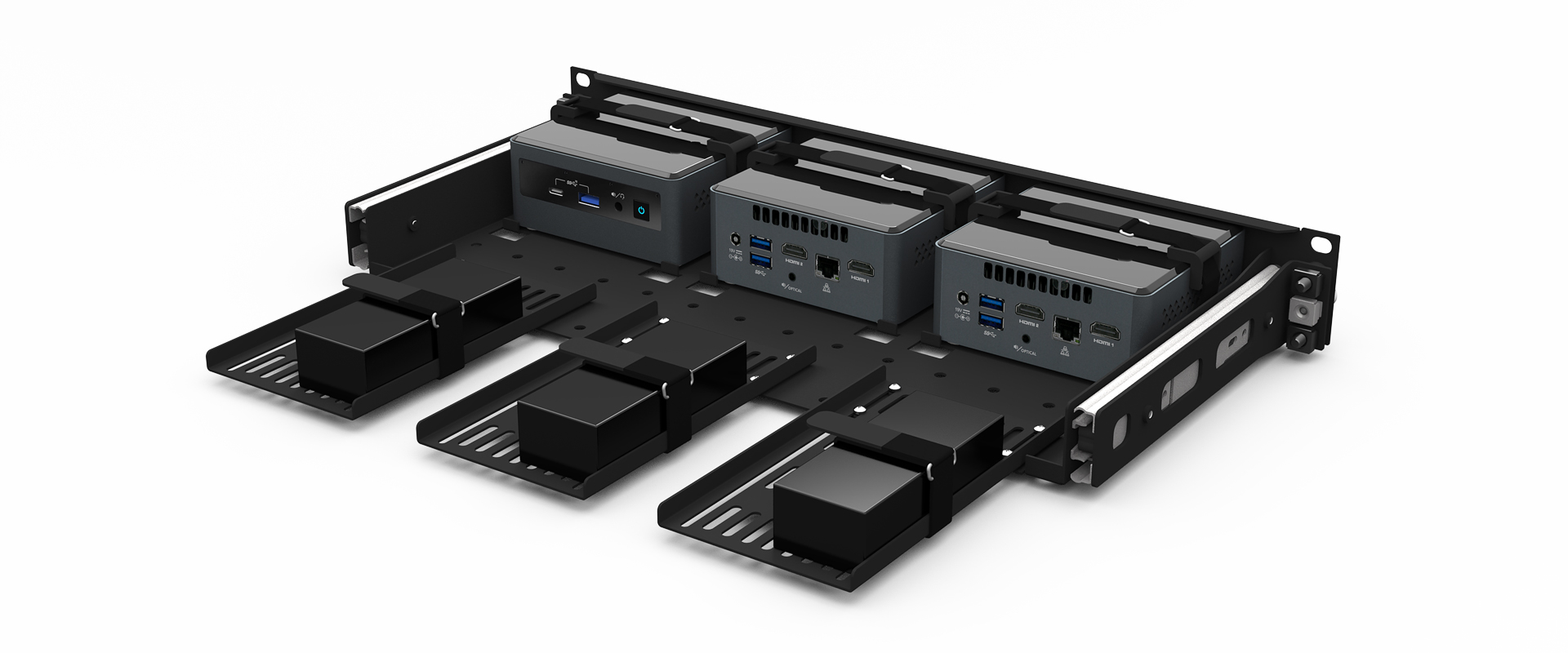

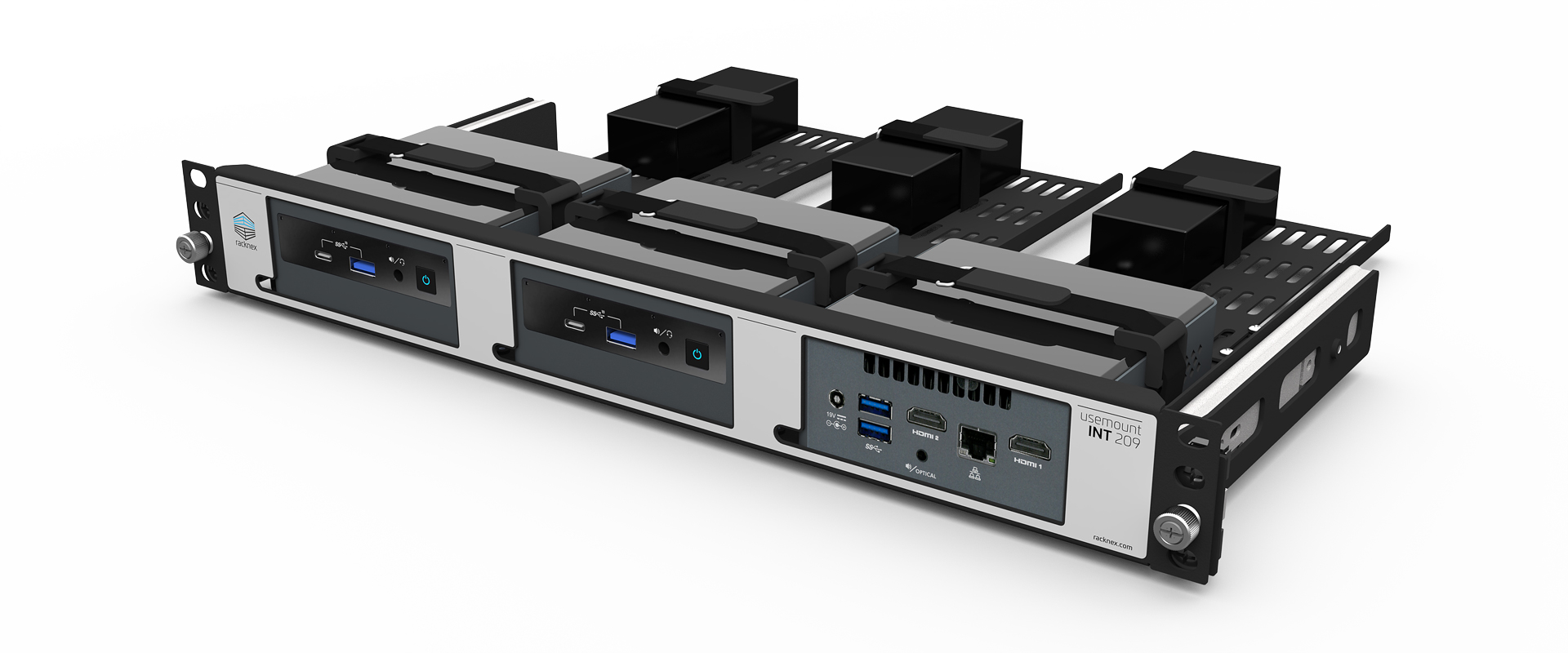

The NUCs can be mounted in either direction. The power button faces forward or the NUC ports face forward. If the NUC ports point to the front, the power supply cable can be routed in the small recess at the front. The ASUS / Intel NUCs themselves are gently attached to the rack mount kit with Velcro straps.

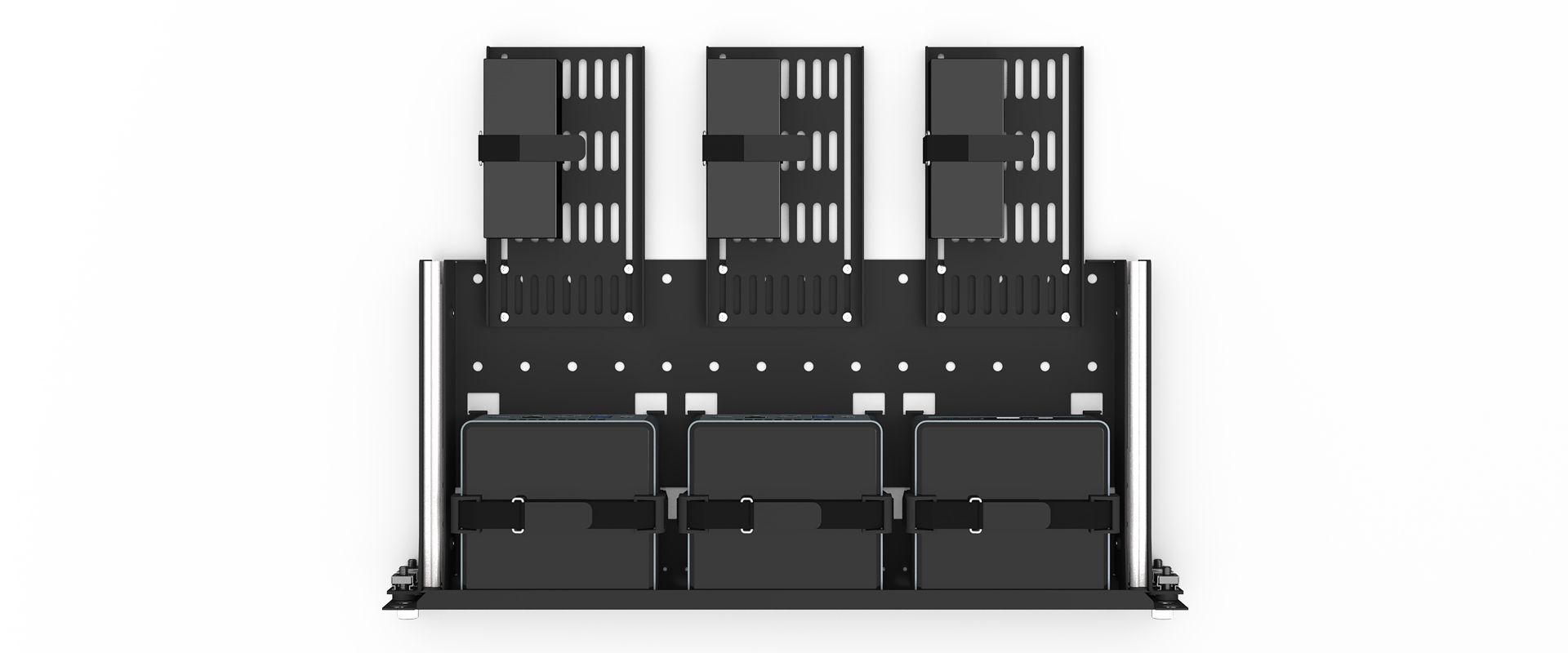

For neat cable management, the rack mount kit features holes directly behind the connectors. The included cable ties make it easy to secure cables to the rack mount kit. To help with air circulation, there are also cutouts where the NUC attaches to the rack mount kit.

Optionally, you can extend the rack mount kit by 200 mm with our “Rail System” or cover a free slot temporarily or permanently with a “Slot Cover”. If you want to combine different NUC form factors, our “Slot Adapter” will help you. Use the Slot Adapter to compensate for the height differences of the form factor Slim to Tall.

The ASUS / Intel NUCs are not included in the scope of delivery.
