Netgate
Features of our Netgate Rack Mount Kits
Ports on the front
Inverted installation or with a simple keystone + cable combination, our rack mount kits bring the Netgate ports from the back to the front of of your rack and make further wiring easy. If the keystone + cable combination is used, keystones end flush. A front foil labels each connector or Status-LED and give the rack mount kit a unique look.
Screwless mounting
The Netgate´s are mounted securely and non-slip on our rackmount kits using a special Strap System. Without using screws or other aids acting on the device.
The straps are fixed with high-quality Velcro. In combination with our spacer, a sufficient distance is created between the Velcro and the Netgate´s to prevent damage to the housing.
This also prevents a possible loss of warranty.
Good Airflow
Cutouts on the bottom and side surfaces of the rack mount kit ensure sufficient cooling in the system.
Even after attachment to the rackmount kit, the outlets are not covered by our screwless Strap System.
Our Netgate Rack Mount kits
What is the right Netgate rackmount kit for me?
19″ Netgate Rack Mount
The following Netgate rack mount kits have been specifically designed and developed for installation in a 19″ rack.
We currently offer three Netgate Rack Mount Kits perfectly matched to each supported Netgate product model.

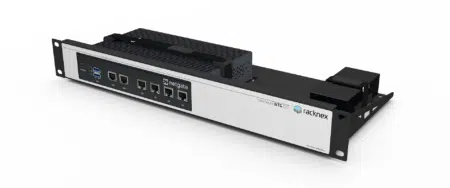

NM-NTG-001
NM-NTG-001 gives a perfect fit for the Netgate SG-5100 and it´s asosiated power supply.
The SG-5100 rack mount occupies 1.37U.

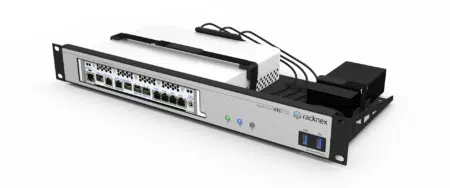

NM-NTG-002
NM-NTG-002 gives a perfect fit for the Netgate 4100 / 6100 and there assosiated power supply.

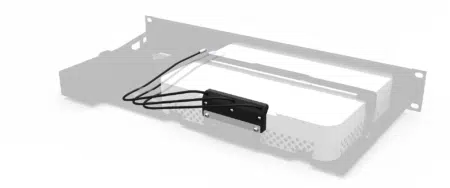

A “LED Light Guide Set” can be optionally configured to view the various status indicators of your Netgate on the front of the rack mount.
The kit occupies 1.37U.

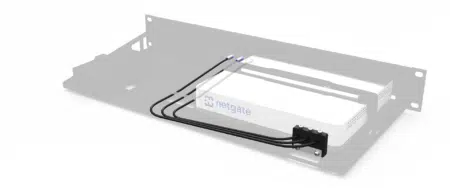

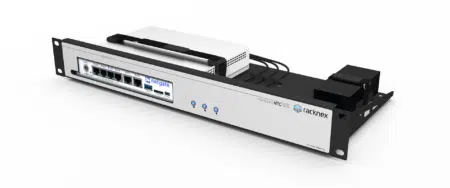

NM-NTG-003
NM-NTG-003 gives a perfect fit for the Netgate SG-3100 and it´s assosiated power supply.
A “LED Light Guide Set” can be optionally configured to view the various status indicators of your Netgate on the front of the rack mount.
The kit occupies 1.33U.
Scope of supply
All Netgate rack mount kits have the following as standard included in the scope of supply.
- 4 x Rack Mount Screw Set
- 10 x Cable Tie 100mm
- 5 x Cable Tie 300mm
- 1 x Velcro Strap with Spacer (Strap System)
- 1 x Product Data Sheet
- 1 x Assembly Instructions
