Netgate SG-3100 Rackmount Kit | 19 inch | 1.37U
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
19″ Netgate SG-3100 Rack Mount Kit – NM-NTG-003

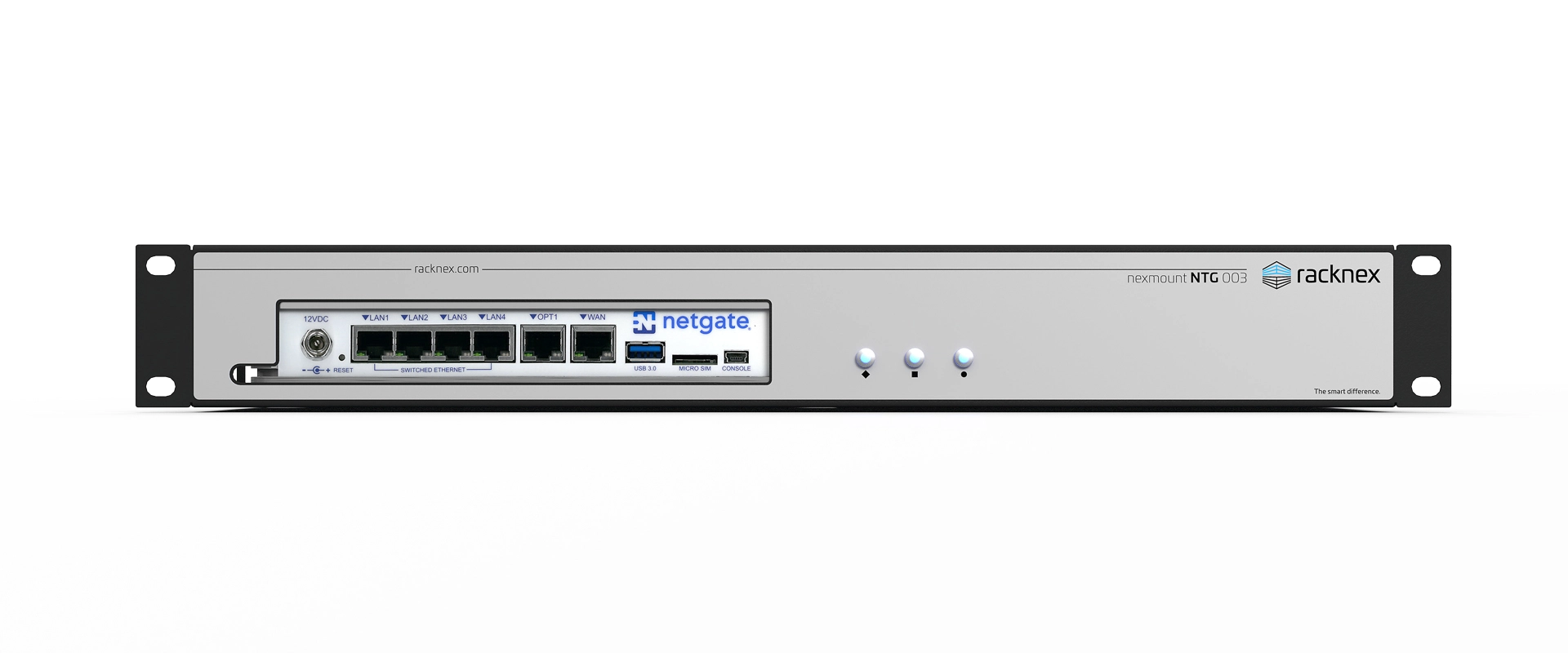

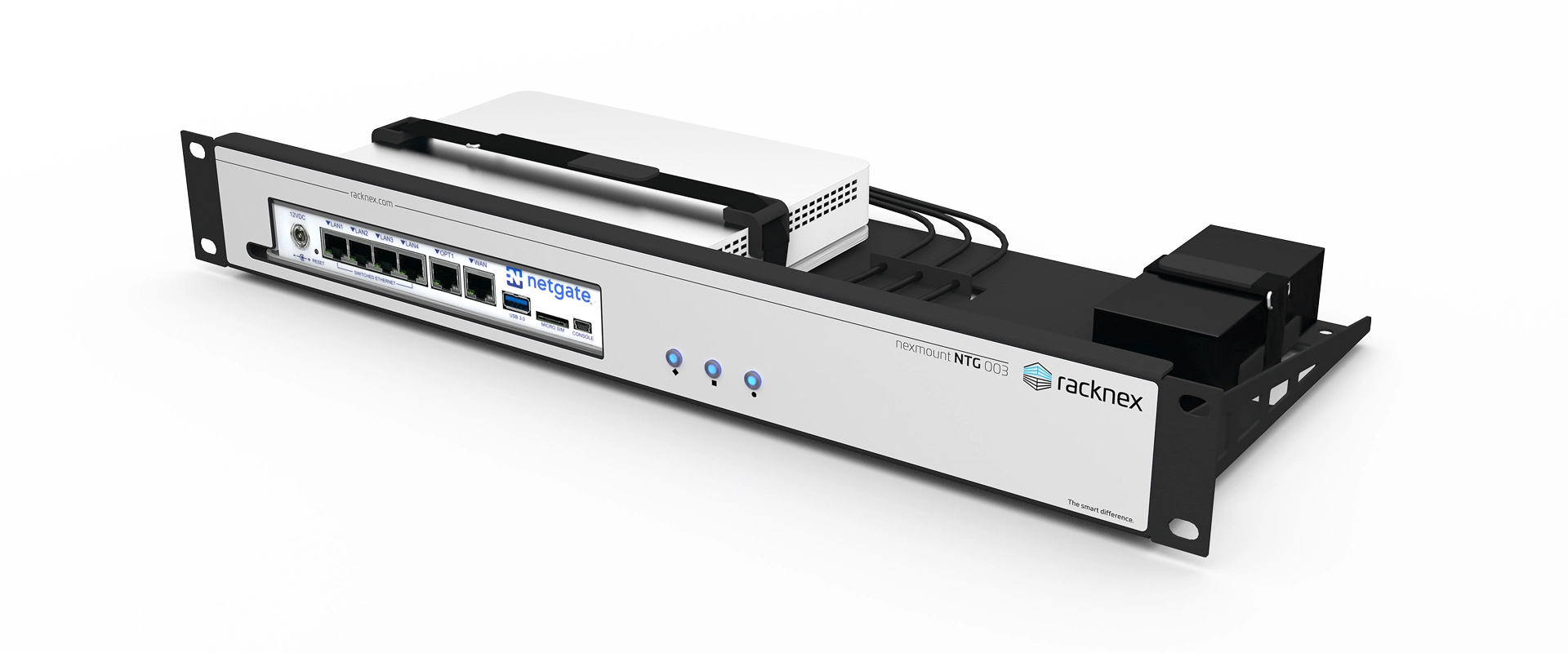

Due to the inverted installation of the Netgate SG-3100 the “NM-NTG-003” provides all connections conveniently on the front of the rack mount.
This makes further wiring in the rack much easier.

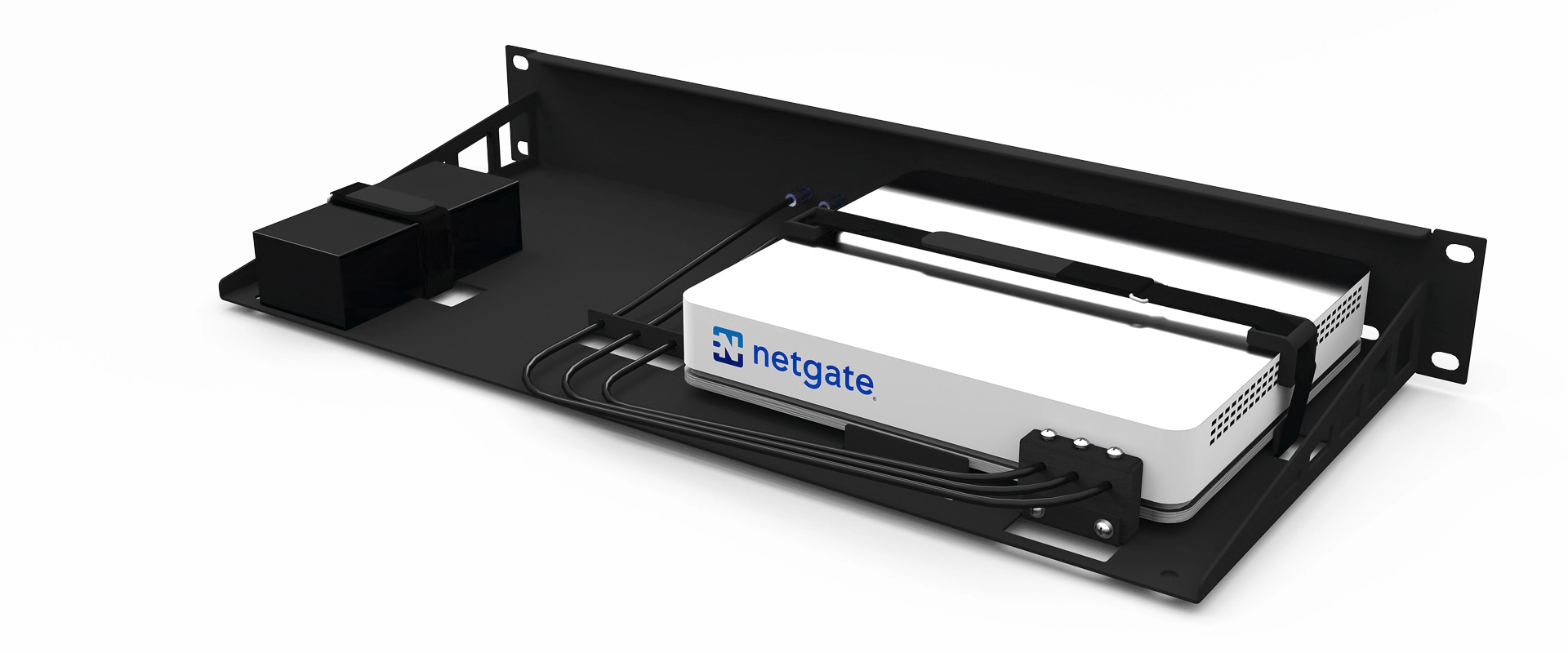

At the right end of the rack mount kit the power supply can be mounted.
The power cable is routed next to the Netgate through a small cutout extension on the front of the rack mount kit.

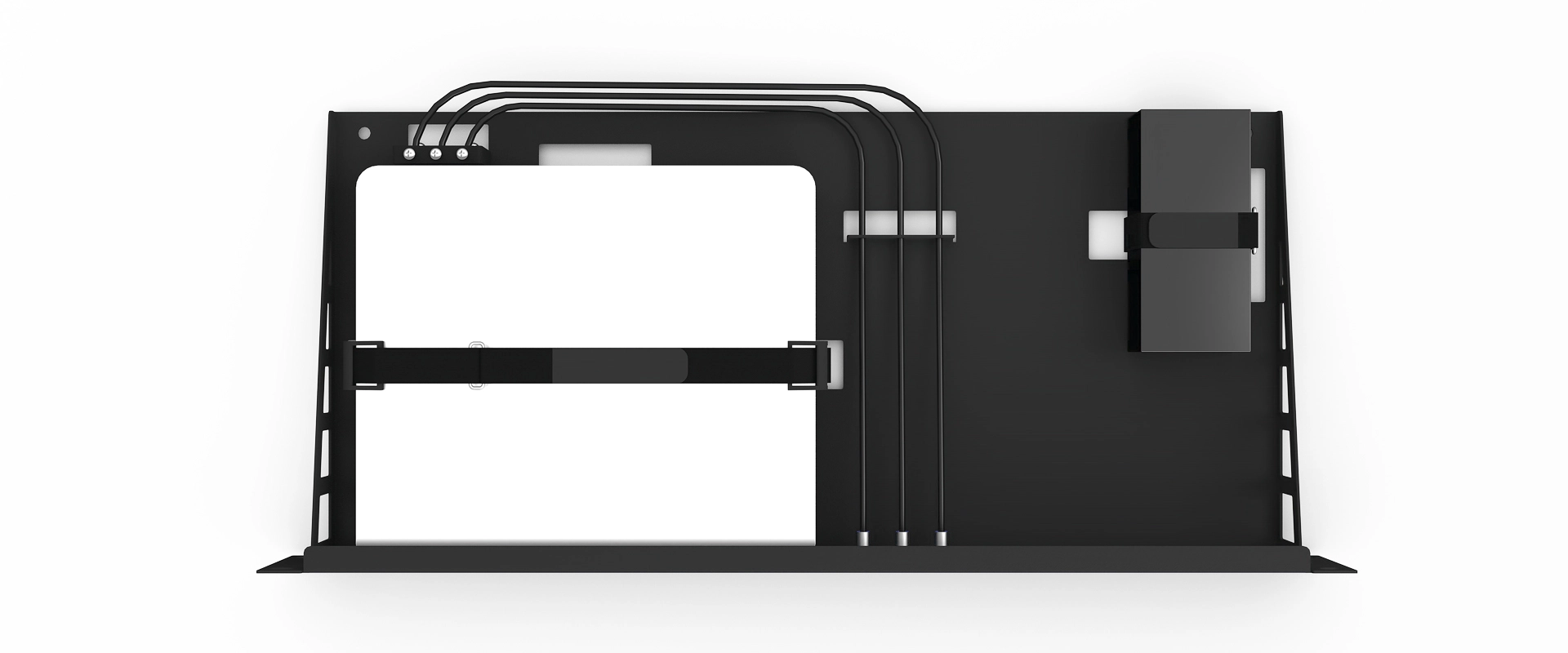

The Netgate SG-3100 is mounted securely and non-slip on the rack mount kit using a special Strap System. Without using screws or other aids acting on the device.
The straps are fixed with high-quality Velcro. In combination with our spacer, a sufficient distance is created between the Velcro and the Netgate to prevent damage to the housing.
This also prevents a possible loss of warranty.
Cutouts on the bottom and side surfaces of the rack mount kit ensure sufficient cooling in the system.
Even after attachment to the rack mount kit, the outlets are not covered by our screwless Strap System.
Optionally, you can use the “LED Light Guide Set” to view the various status indicators of your Netgate on the front of the rack mount.
A front foil labels each LED and gives the Netgate SG-3100 rack mount a unique look. “NM-NTG-003″ occupys 1.37U.
NM-NTG-003
Delivery time: 4-5 days In Stock
Supported Models:
Netgate SG-3100
Rack: 19 inch
Rack Unit: 1.37U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 60 x 210 mm
*) Dimensions = width/height/depth
Price starting from:
125,88 €
19″ Netgate SG-3100 Rack Mount Kit – NM-NTG-003
Due to the inverted installation of the Netgate SG-3100 the “NM-NTG-003” provides all connections conveniently on the front of the rack mount.
This makes further wiring in the rack much easier.
At the right end of the rack mount kit the power supply can be mounted.
The power cable is routed next to the Netgate through a small cutout extension on the front of the rack mount kit.
The Netgate SG-3100 is mounted securely and non-slip on the rack mount kit using a special Strap System. Without using screws or other aids acting on the device.
The straps are fixed with high-quality Velcro. In combination with our spacer, a sufficient distance is created between the Velcro and the Netgate to prevent damage to the housing.
This also prevents a possible loss of warranty.
Cutouts on the bottom and side surfaces of the rack mount kit ensure sufficient cooling in the system.
Even after attachment to the rack mount kit, the outlets are not covered by our screwless Strap System.
Optionally, you can use the “LED Light Guide Set” to view the various status indicators of your Netgate on the front of the rack mount.
A front foil labels each LED and gives the Netgate SG-3100 rack mount a unique look. “NM-NTG-003″ occupys 1.37U.
