Raspberry Pi Rackmount Kit | 4x Slot – 58x20mm | 19 inch | 1.00U | Rail System 200mm
>> Suitable for all Single Board Computers (SBC) with Raspberry Pi form factor
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
4x Pi on 1.00U in the 19 inch server cabinet
With the „UM-SBC-204“ you can neatly accommodate up to four Raspberry Pi´s or similar SBCs on 1.00U in the 19″ Rack. Each Pi is screwed to the Rackmount Kit four times with M2.5 screws (included in the scope of supply). After mounting the Pi´s on the rack, you have 34 mm from the bottom of the circuit board to top of the Raspberry Pi Rack for possible structures (PoE-HAT, USV). If you need more space, the „UM-SBC-202“ might be the right choice for you. Single board computers are not included.
Details
Configuration options of the “UM-SBC-204”
Like every Raspberry Pi rackmount kit from us, you can configure the “UM-SBC-204” according to your specific needs.
Rail System
This allows your devices to be conveniently operated by pulling out the rackmount kit. A telescopic rail on each side of the Raspberry Rack allows for easy access. The rail extension is 200 mm. We recommend it if you want to always have access to your memory card without dismantling the rackmount kit.
Fan 40×40

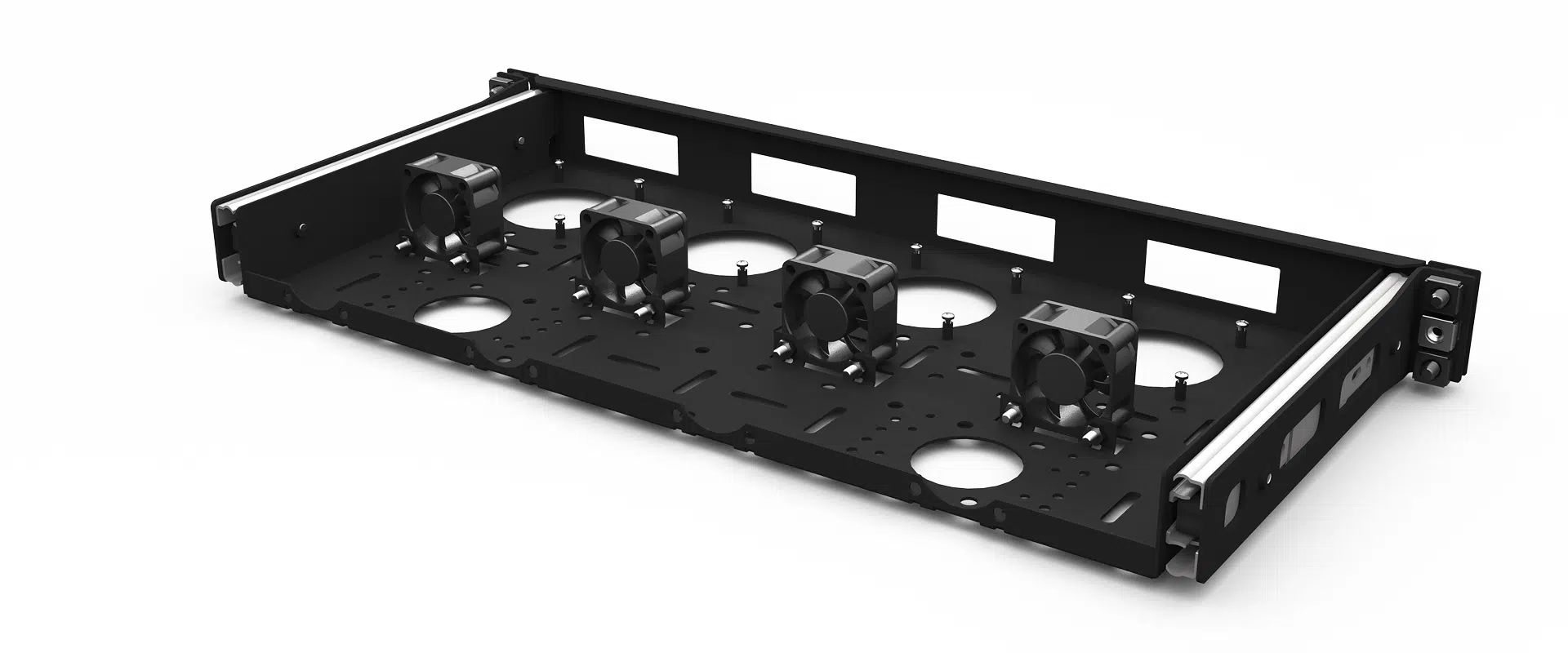

The “UM-SBC-204” offers a mounting option for up to 4 fans (40 x 40 mm with a hole spacing of 32 x 32 mm). This allows the devices to be additionally ventilated. Each fan attaches to the rackmount kit with two screws directly behind the Pi.
Slot Display
The slot display is a bracket that allows a display to be installed in the rack kit. It occupies one Pi slot and mounts in the same rackmount kit holes as the Pi. Can be used to display important information about your running system. Note that the display is not included.
Slot Cover
This allows free slots in the rackmount kit to be covered. It mounts to the same rackmount kit holes as the Pi. Perfect if you want to temporarily cover one or more slots and upgrade your system at a later date.
Rack Panel 1.00U
This allows the free space of the rack mount kit to be closed up to the next full rack unit. You can choose between an air or blank version.
UM-SBC-204
Delivery time: 1-2 weeks In Stock
Supported Models:
Raspberry Pi 2B
Raspberry Pi 3B
Raspberry Pi 3B+
Raspberry Pi 4B
Raspberry Pi 5
SBC with Raspberry Pi form factor | Details
Rack: 19 inch
Rack Unit: 1.00U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 43.4 x 210 mm
*) Dimensions = width/height/depth
Price starting from:
153,60 €
4x Pi on 1.00U in the 19 inch server cabinet
With the „UM-SBC-204“ you can neatly accommodate up to four Raspberry Pi´s or similar SBCs on 1.00U in the 19″ Rack. Each Pi is screwed to the Rackmount Kit four times with M2.5 screws (included in the scope of supply). After mounting the Pi´s on the rack, you have 34 mm from the bottom of the circuit board to top of the Raspberry Pi Rack for possible structures (PoE-HAT, USV). If you need more space, the „UM-SBC-202“ might be the right choice for you. Single board computers are not included.
Details
Configuration options of the “UM-SBC-204”
Like every Raspberry Pi rackmount kit from us, you can configure the “UM-SBC-204” according to your specific needs.
Rail System
This allows your devices to be conveniently operated by pulling out the rackmount kit. A telescopic rail on each side of the Raspberry Rack allows for easy access. The rail extension is 200 mm. We recommend it if you want to always have access to your memory card without dismantling the rackmount kit.
Fan 40×40
The “UM-SBC-204” offers a mounting option for up to 4 fans (40 x 40 mm with a hole spacing of 32 x 32 mm). This allows the devices to be additionally ventilated. Each fan attaches to the rackmount kit with two screws directly behind the Pi.
Slot Display
The slot display is a bracket that allows a display to be installed in the rack kit. It occupies one Pi slot and mounts in the same rackmount kit holes as the Pi. Can be used to display important information about your running system. Note that the display is not included.
Slot Cover
This allows free slots in the rackmount kit to be covered. It mounts to the same rackmount kit holes as the Pi. Perfect if you want to temporarily cover one or more slots and upgrade your system at a later date.
Rack Panel 1.00U
This allows the free space of the rack mount kit to be closed up to the next full rack unit. You can choose between an air or blank version.
Configurator
Configure the Rack Mount Kit according to your requirements here.
Available build space for Raspberry Pi add-on boards
If you are toying with the idea of accommodating additional boards such as PoE-HAT or UPS in the rack, you will find the available scope below.
For 1.00U Raspberry Pi Rack Mount Kits
From the lower edge of the circuit board to the lower edge of the slot, you have 35.4mm available.
For 1.33U Raspberry Pi Rack Mount Kits
From the lower edge of the circuit board to the lower edge of the slot, you have 50.2mm available.
For 2.00U Raspberry Pi Rack Mount Kits
From the lower edge of the circuit board to the lower edge of the slot, you have 87.8mm available.
Single Board Computer with identical form factor for Raspberry Pi
As mentioned above, you can mount single board computers with the same form factor as the Pi 5 in the Raspberry Pi Rackmount Kit. Pay attention to the basic dimensions of the Pi and the drilling pattern/diameter.
If they match, your single-board computers are compatible with our rack and can therefore be used without any problems. Single board computers tested by us for compatibility are: ASUS Tinker Board | ODROID-C1+
