AVM FRITZ!Box 6590 / 6591 / 6690 Cable Rackmount Kit | 19 inch | 2.00U
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).

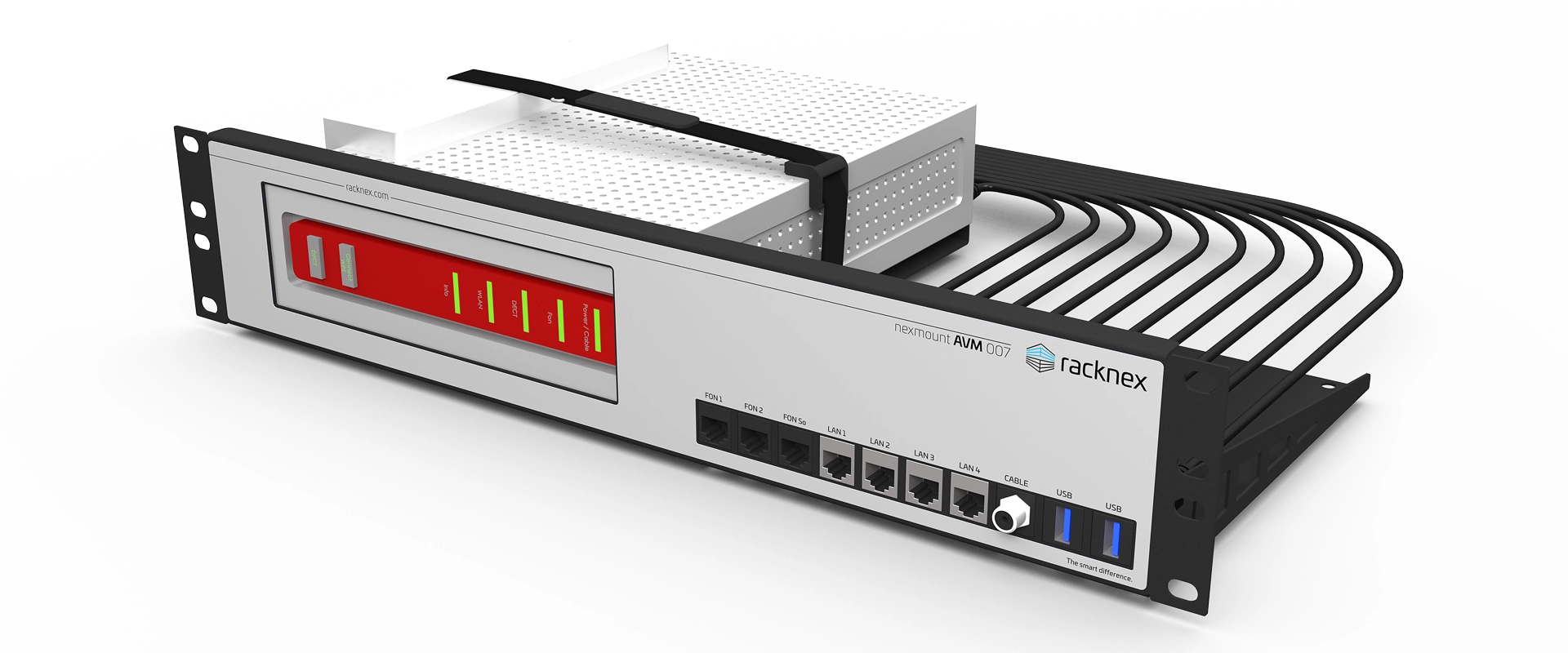

Mount your FRITZ!Box 6590 / 6591 / 6690 Cable in the 19 inch server cabinet
Install the FRITZ!Box 6590 / 6591 / 6690 from the top router manufacturer AVM now conveniently and easily with our Rackmount Kit „NM-AVM-007“ in the 19 inch server cabinet. With our „Strap-System“, we enable easy, tool-free assembly and in combination with our „Air-System“, your device always keeps a cool head. All of our rackmount kits are individually configurable. Choose the configuration that suits you below.
Details
Details
This FRITZ!Box rackmount kit was specially developed for installation in a 19 inch rack.
- All assembly and plug-in connections have been matched.
- After installation, the buttons on the FRITZ!Box can still be operated from the front.
- We use keystone inline couplers for our connectors.
- You can choose between a shielded and unshielded version.
- The FRITZ!Box is not in the scope of supply.
Strap-System
The devices are attached to the rackmount kit using Velcro straps. So no screws are needed and you don’t have to unscrew your device. The rackmount kit comes fully assembled and ready to use.
Air-System
All rackmount kits are designed to support good airflow. With our self-developed spacers in combination with the Velcro straps, the device is mounted in such a way that the existing ventilation openings are not impaired. This enables us to achieve a time-saving, device-friendly assembly solution.
NM-AVM-007
Delivery time: 1-2 weeks In Stock
Supported Models:
AVM FRITZ!Box 6590 Cable
AVM FRITZ!Box 6591 Cable
AVM FRITZ!Box 6690 Cable
Rack: 19 inch
Rack Unit: 2.00U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 87.8 x 248 mm
*) Dimensions = width/height/depth
Price starting from:
142,08 €
Mount your FRITZ!Box 6590 / 6591 / 6690 Cable in the 19 inch server cabinet
Install the FRITZ!Box 6590 / 6591 / 6690 from the top router manufacturer AVM now conveniently and easily with our Rackmount Kit „NM-AVM-007“ in the 19 inch server cabinet. With our „Strap-System“, we enable easy, tool-free assembly and in combination with our „Air-System“, your device always keeps a cool head. All of our rackmount kits are individually configurable. Choose the configuration that suits you below.
Details
Details
This FRITZ!Box rackmount kit was specially developed for installation in a 19 inch rack.
- All assembly and plug-in connections have been matched.
- After installation, the buttons on the FRITZ!Box can still be operated from the front.
- We use keystone inline couplers for our connectors.
- You can choose between a shielded and unshielded version.
- The FRITZ!Box is not in the scope of supply.
Strap-System
The devices are attached to the rackmount kit using Velcro straps. So no screws are needed and you don’t have to unscrew your device. The rackmount kit comes fully assembled and ready to use.
Air-System
All rackmount kits are designed to support good airflow. With our self-developed spacers in combination with the Velcro straps, the device is mounted in such a way that the existing ventilation openings are not impaired. This enables us to achieve a time-saving, device-friendly assembly solution.
Configurator
Configure the Rack Mount Kit according to your requirements here.
Related products
2 reviews for NM-AVM-007
Only logged in customers who have purchased this product may leave a review.
Henning Halfpap –
Very good for a clean Install
After many years, we decided to “clean up” our “internet corner” which sits, unfortunately in the living room. In the process, I bought a new router, switches and a rack to tidy it all up. For the Fritz!Box I found the NM-AVM-007 rackmount kit which helped me mount the Fritz!Box tidily to the rack as well – and on the ground plate there’s enough space so I could fit our cable splitter / amplifier, too!
A few little caveats:
– For this mounting option, the Fritz!Box fits only one way, the buttons on the left corner and the LEDs on the right, which places them somewhere in the middle of the mount. I would have preferred the other way round, but that’s impossible due to the unwieldy base of the device which only sits flush if placed on the left side.
– Although the velcro strap indeed holds the device tight, due to the aformentioned base of the Fritz!Box, it’s top (now right in the center of the rack mount) stays suspended in the air – I would like to see some support bracket so the device is pysically supported on both sides, although there’s no forces (except for the velcro strap) asserted on the device so having it’s top hanging free is more of a nuisance to my inner monk than a real problem.
– The support at the back of the device is adjustable but it’s not easy to get it tight – maybe a small cushion could help here
– I ordered the Keystone modules (3x) for the telephone jacks with cables. There were 3 RJ11 RJ45 cables in the package – but the S0 connector is actually RJ45, too, not RJ11. Also just a small detail and nothing that one the patch cables I already had couldn’t solve.
All in all these are all very minor issues, in general I am very happy that my Fritz!Box now sits tidily in the rack, together with all the other components!
Verified Purchase
Enno Gotthold –
I saved myself with this unit 3U in my rack as previously the router had to be standing on a shelf without any other equipment on the shelf. With this mount, I was able to move the unit to the back of my rack where it now sits perfectly mounted. The delivery was fast and the packaging was sturdy. I was able to install everything on my own without a need for a third hand.
Verified Purchase
