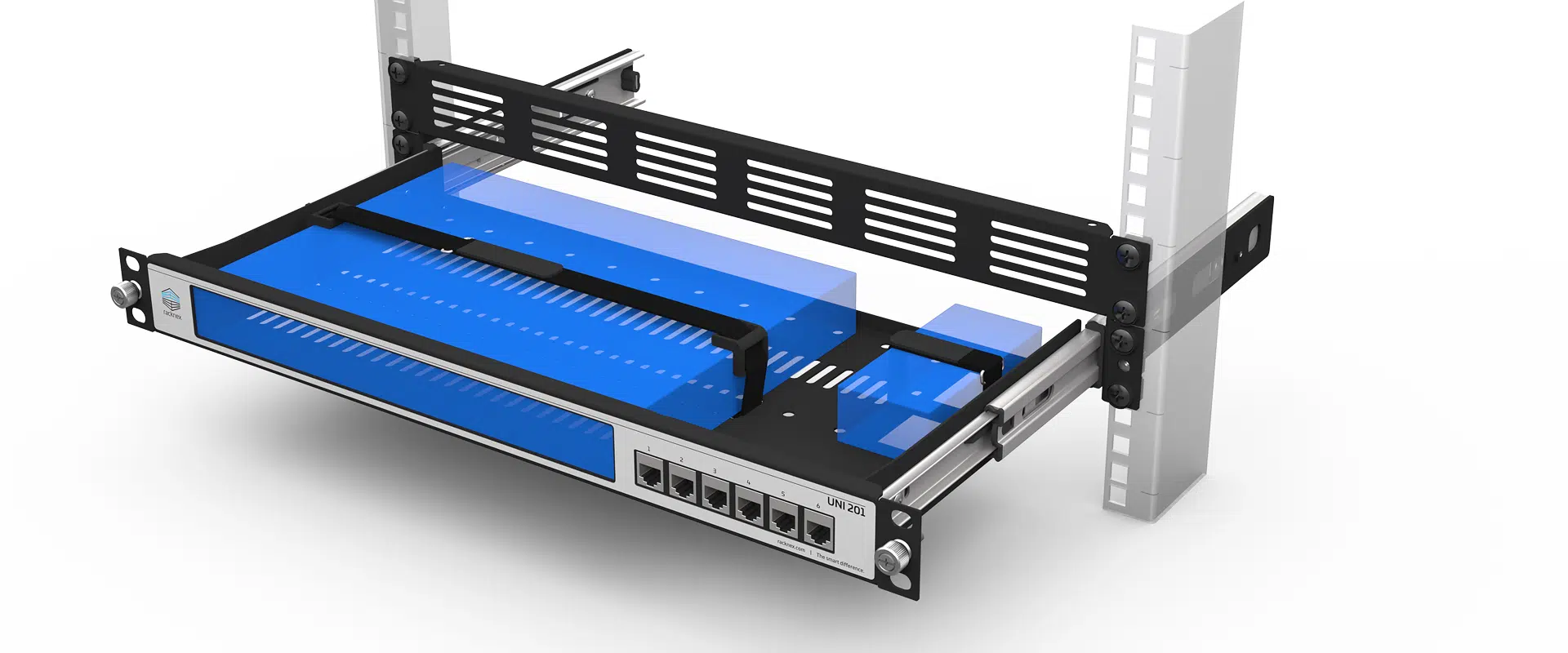

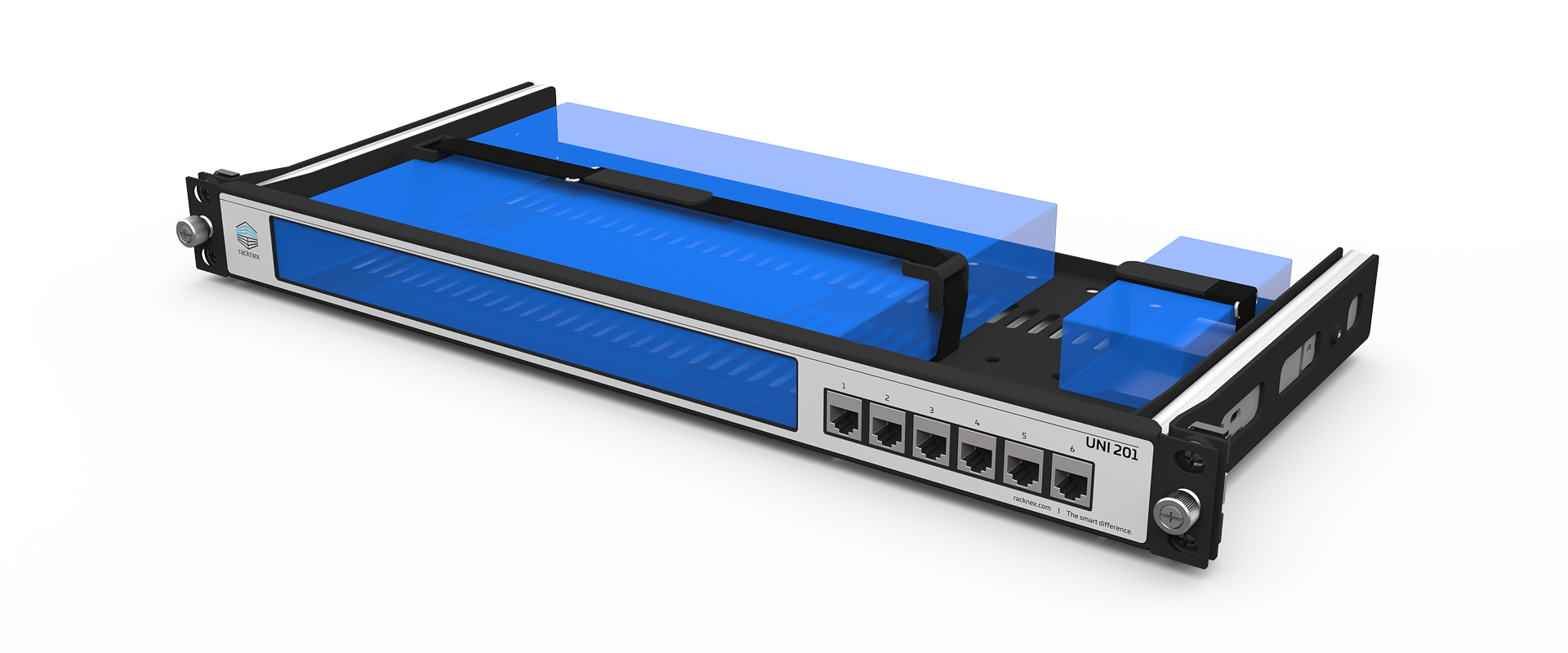

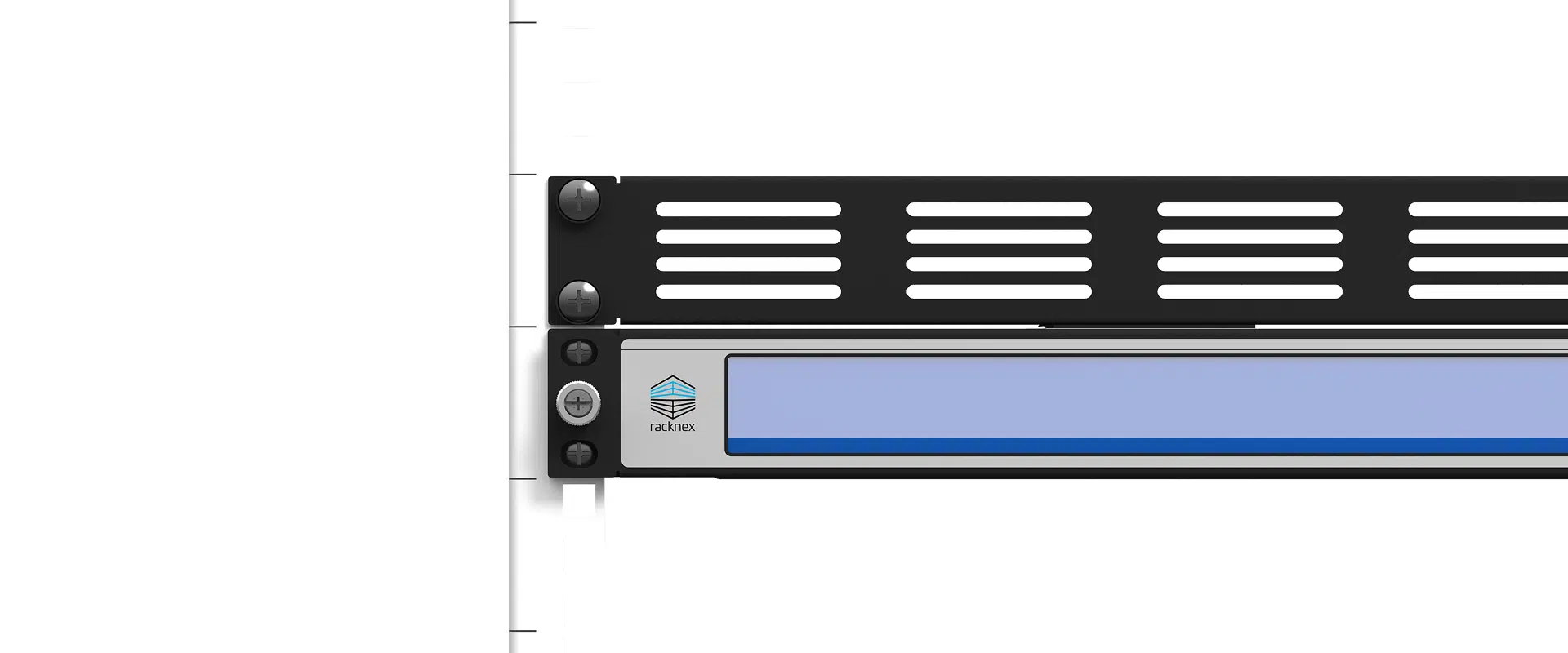

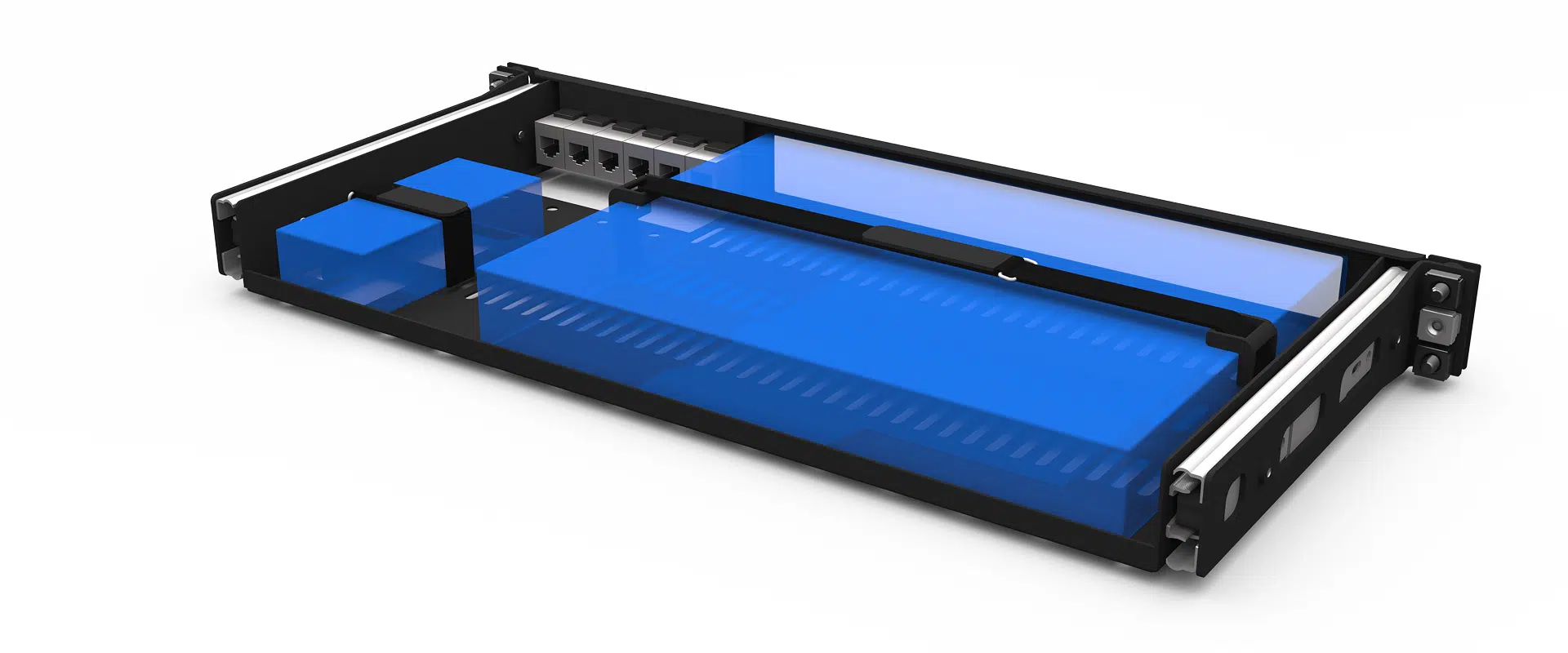

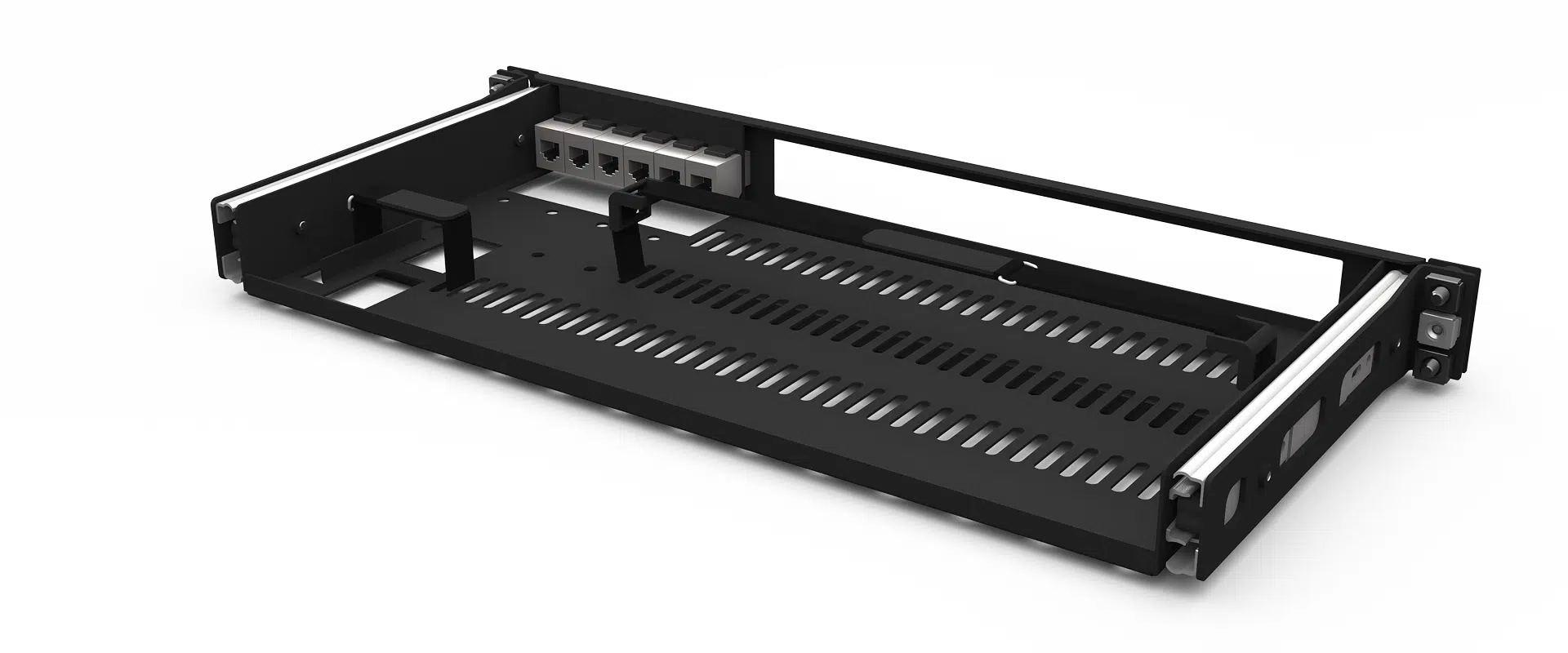

The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).

The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).

Can’t find the right rack mount kit for your firewall, router, switch or mini PC from us?

With our Universal Rackmount Kit NM-UNI-201“ you will also find a clean solution for mounting in the 19 inch server cabinet for devices outside of our product range. With our „Strap-System“, we enable easy, tool-free assembly and in combination with our „Air-System“, your device always keeps a cool head.

Details

Details

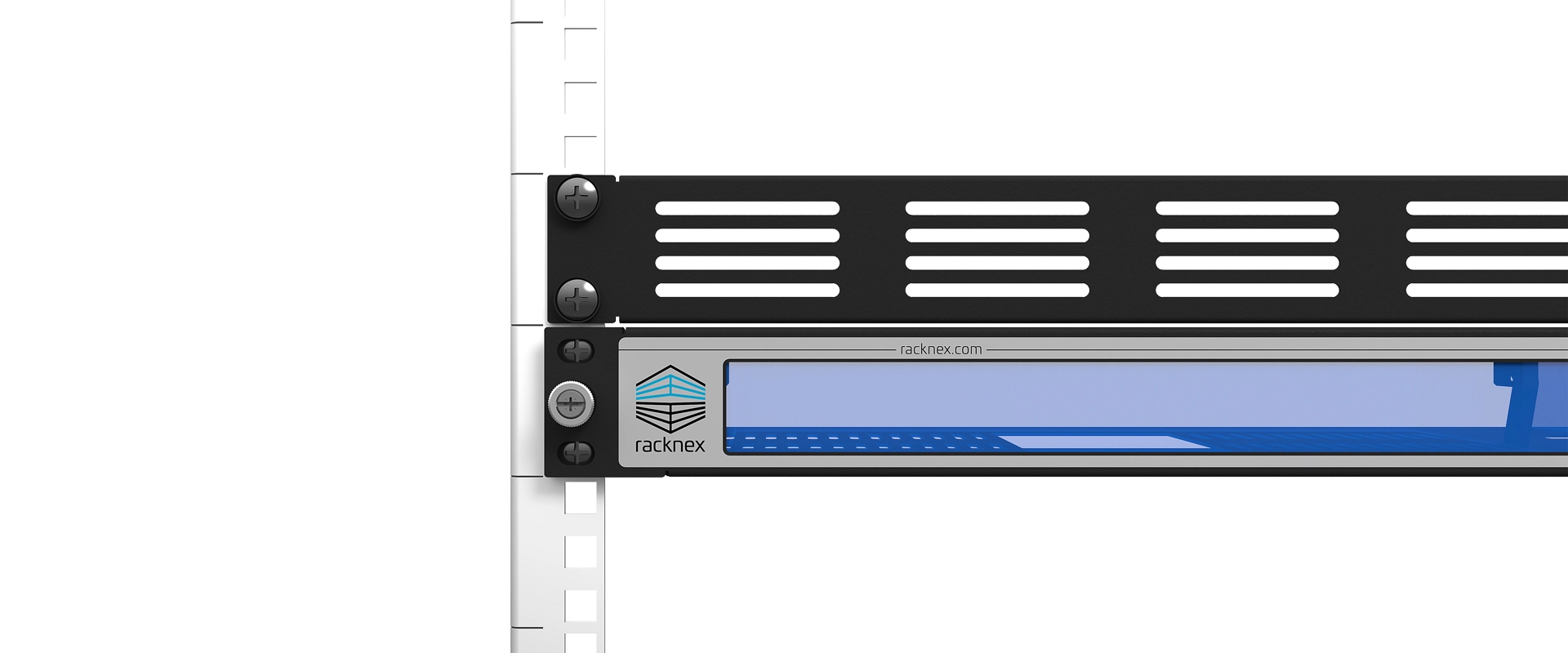

This rackmount kit was specially developed for installation in a 19 inch rack.

  • All assembly and plug-in connections have been matched.

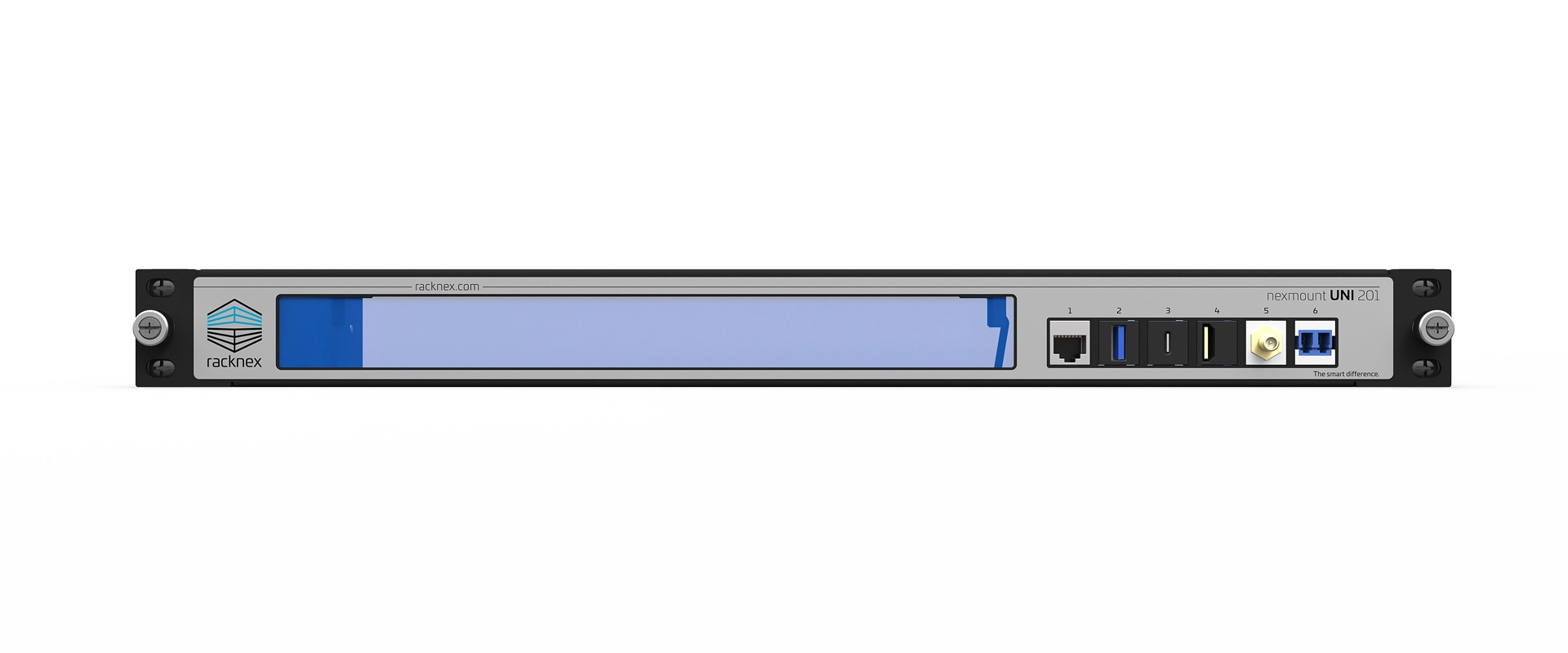

  • 6 connections individually configurable. Choose the configuration that suits you.

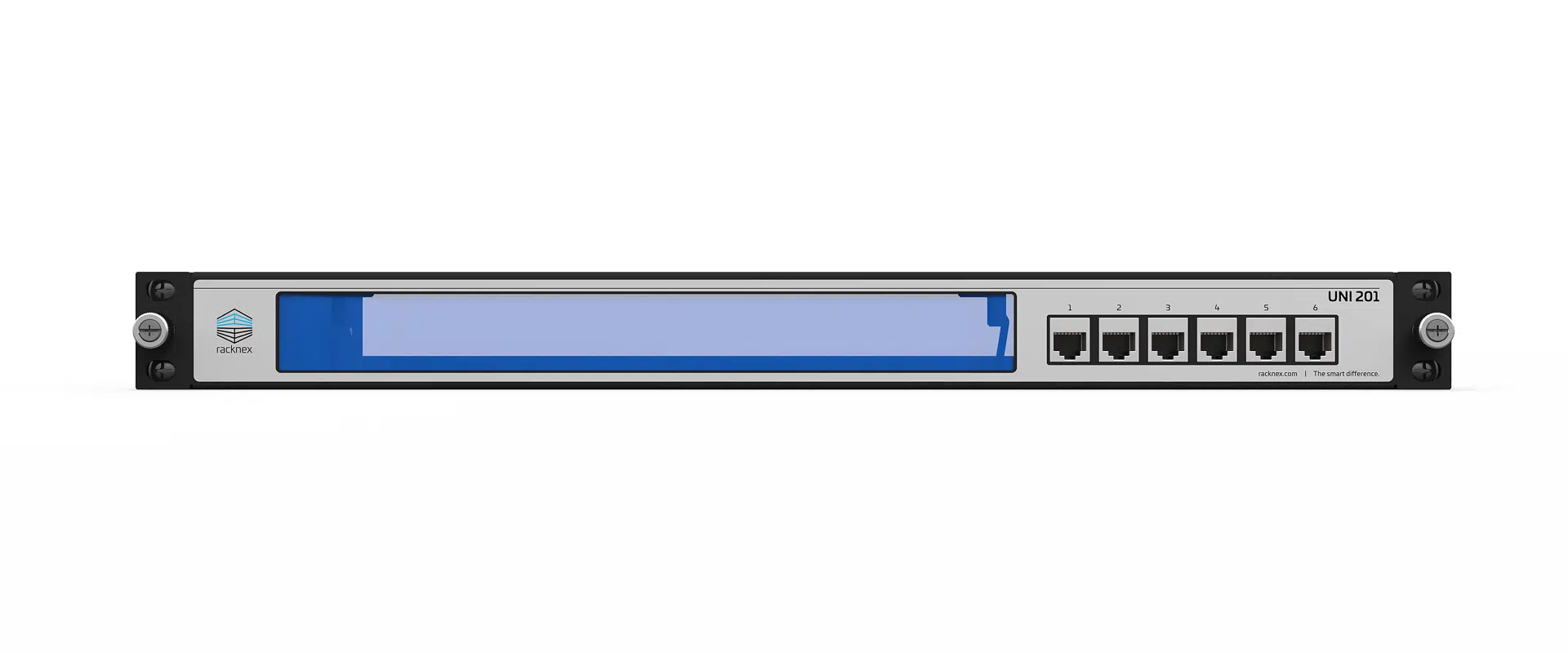

  • We use keystone inline couplers for our connectors.

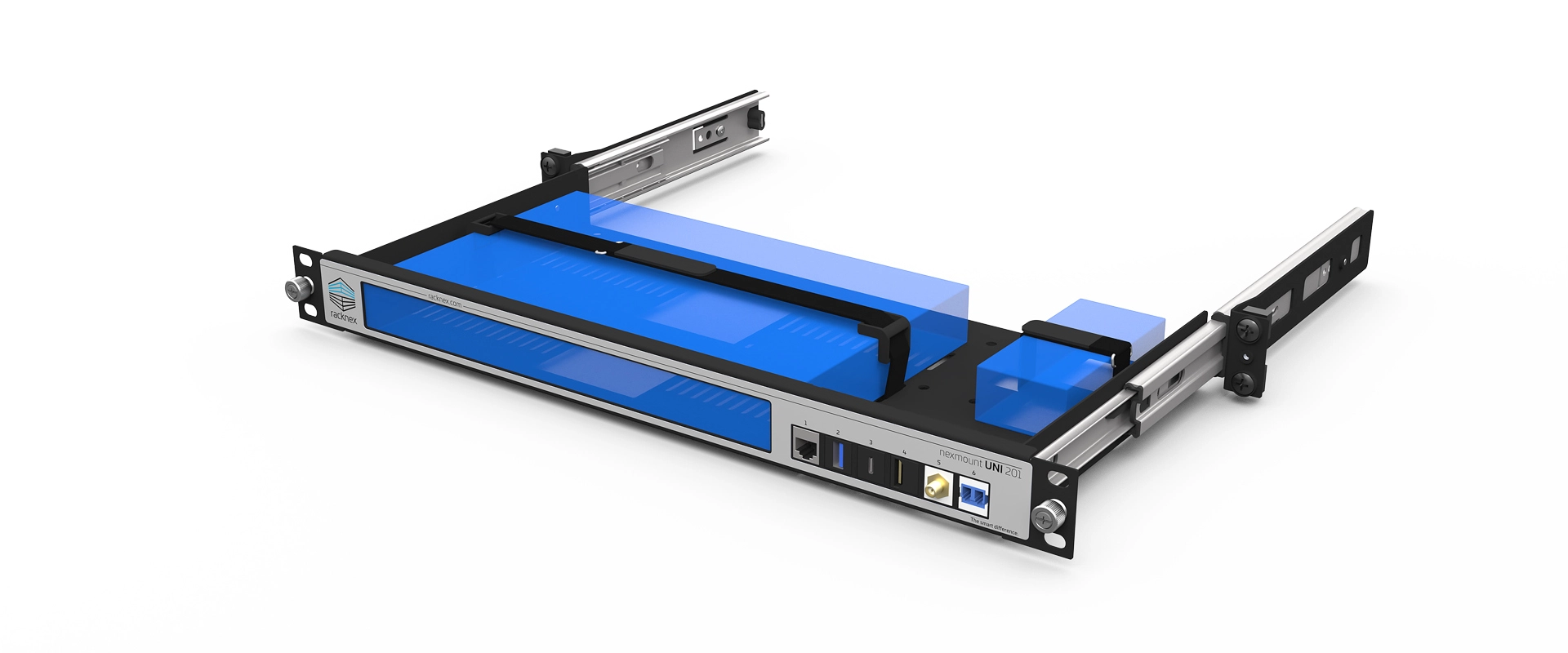

  • Optionally extendable with our Rail System

Supported Models:

Desktop Devices with:

  • Width: 100 – 275 mm
  • Height: Max. 33.5 mm incl. rubber bumper
  • Depth: Any depth
  • Panel front cutout: 270 x 26 mm

Strap-System

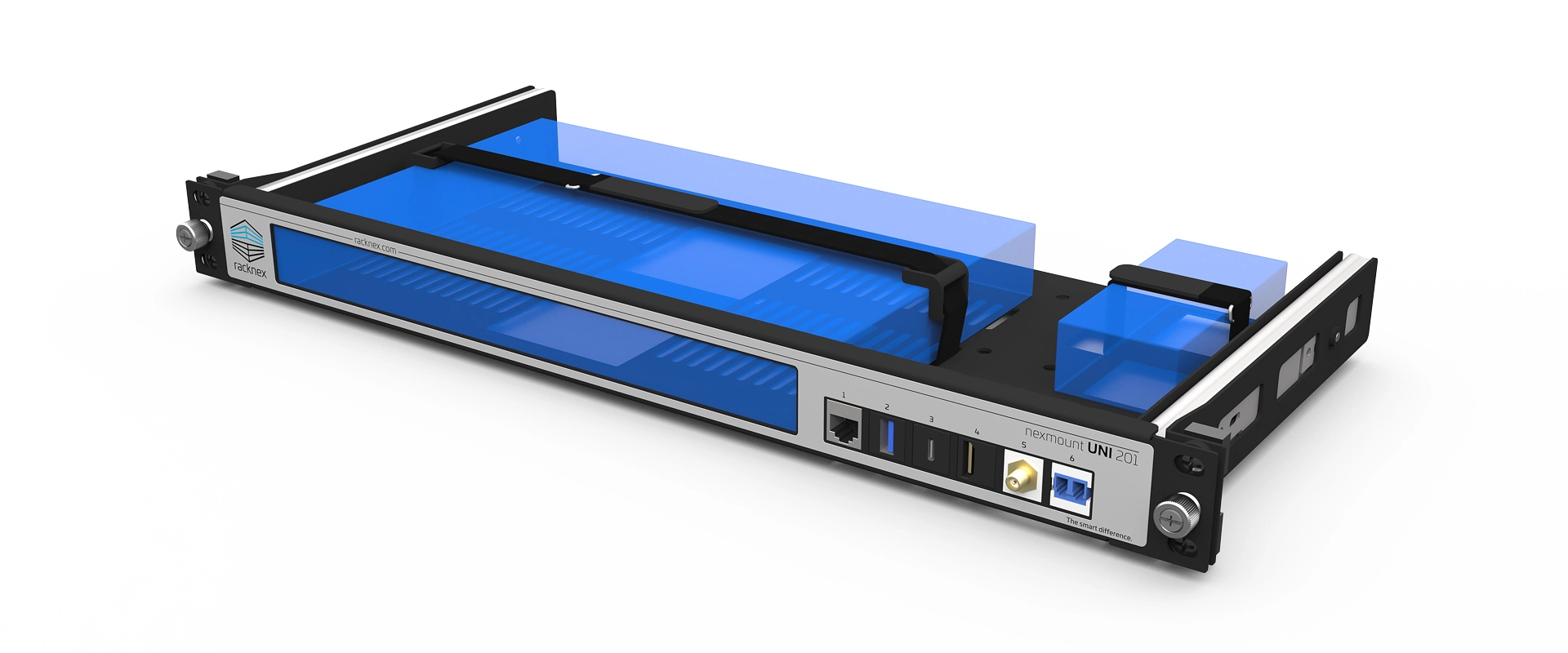

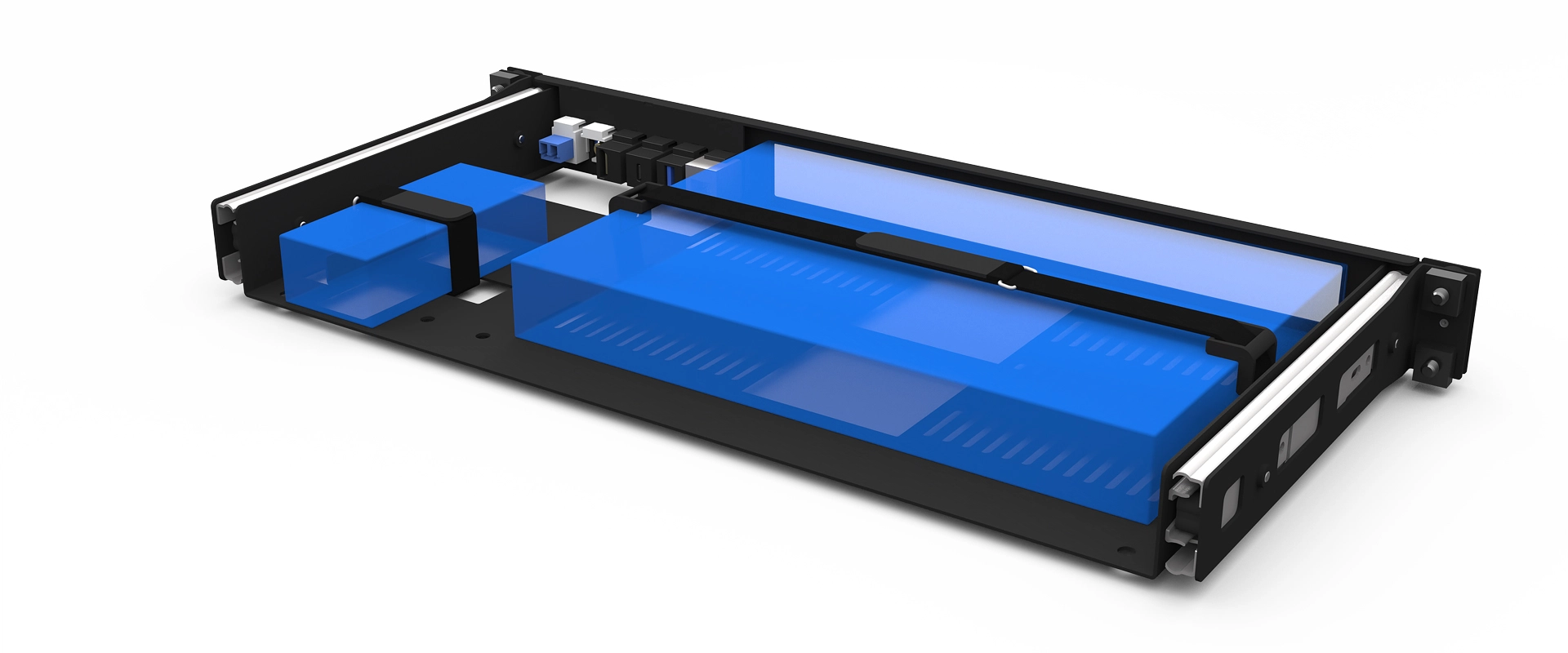

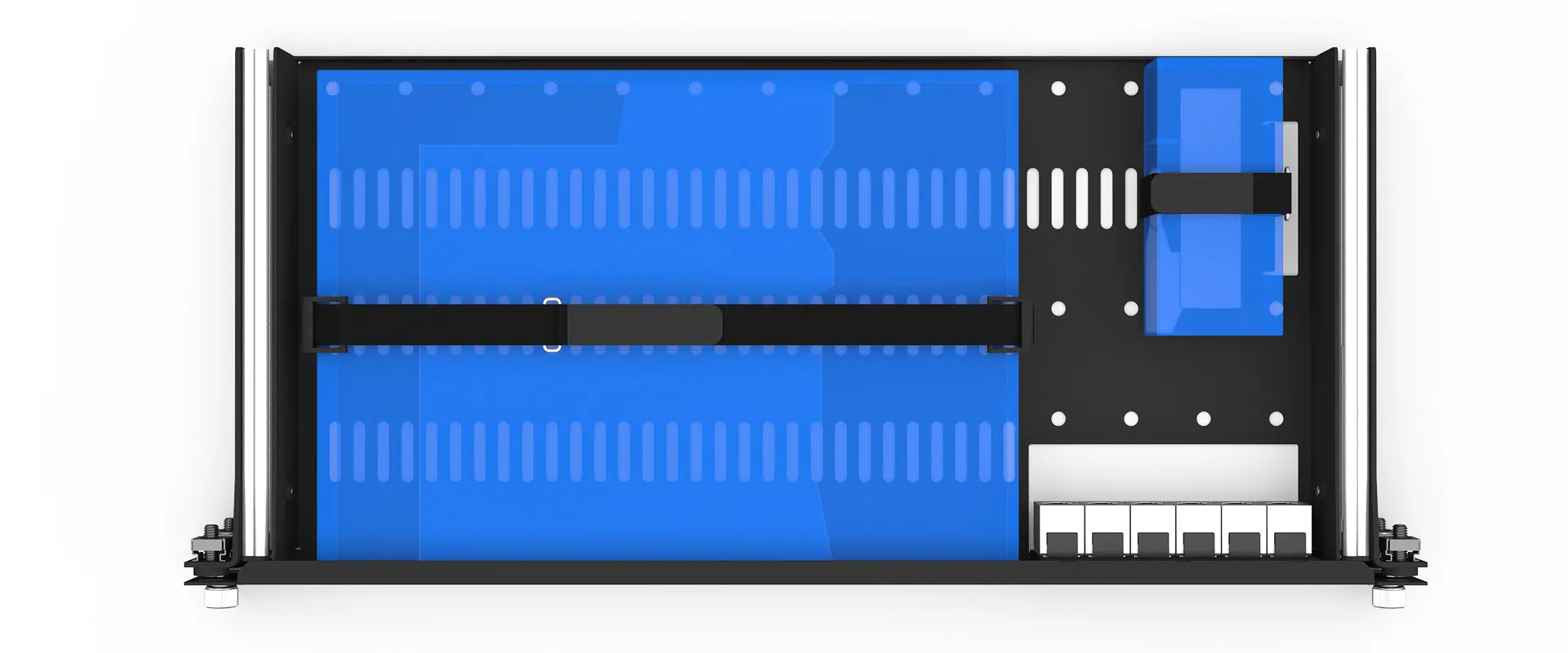

The devices are attached to the rackmount kit using Velcro straps. So no screws are needed and you don’t have to unscrew your device. The rackmount kit comes fully assembled and ready to use.

Air-System

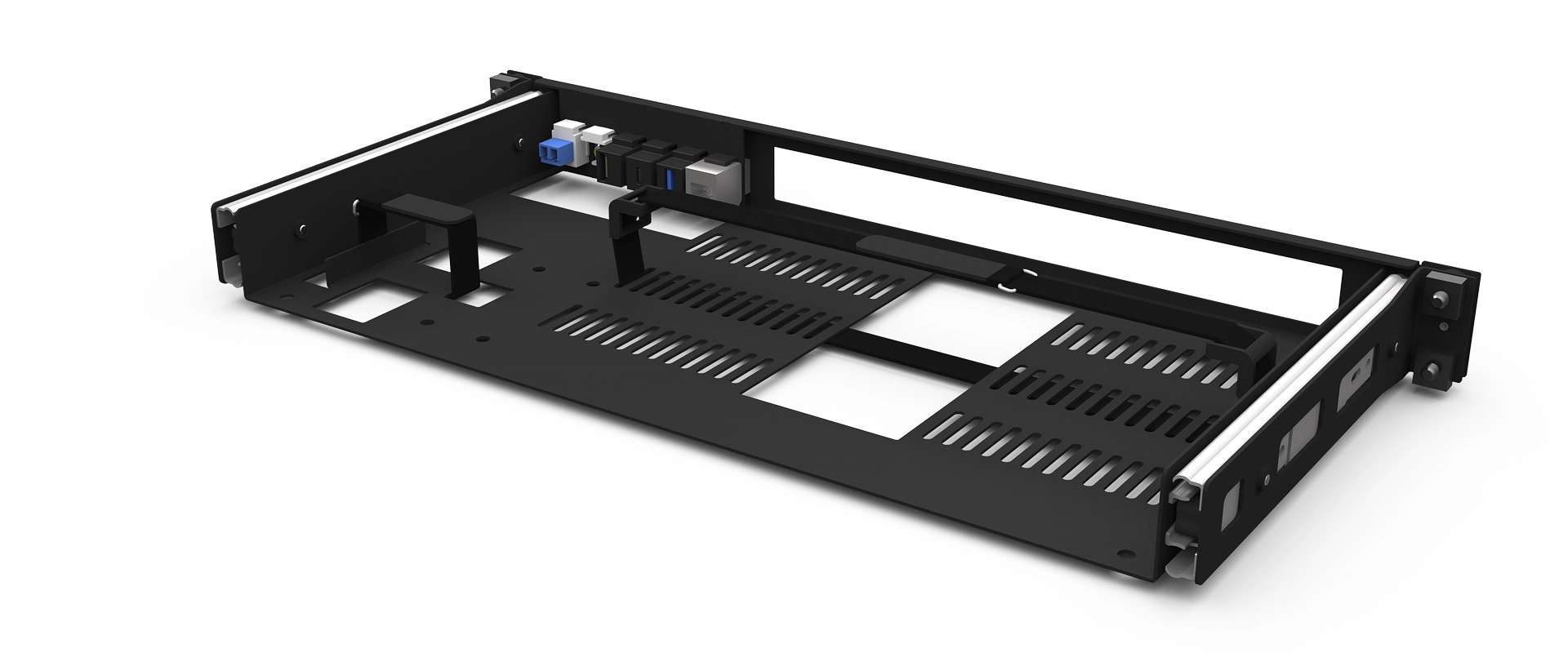

All rackmount kits are designed to support good airflow. With our self-developed spacers in combination with the Velcro straps, the device is mounted in such a way that the existing ventilation openings are not impaired. This enables us to achieve a time-saving, device-friendly assembly solution.

NM-UNI-201

Delivery time: 1-2 weeks In Stock

Supported Models:
Desktop Devices with:
Width: 100 – 275 mm
Height: Max. 33.5 mm incl. rubber bumper
Depth: Any depth
Panel front cutout: 270 x 26 mm

Rack: 19 inch
Rack Unit: 1.00U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 43.4 x 210 mm

*) Dimensions = width/height/depth

Price starting from:

162,48

Can’t find the right rack mount kit for your firewall, router, switch or mini PC from us?

With our Universal Rackmount Kit NM-UNI-201“ you will also find a clean solution for mounting in the 19 inch server cabinet for devices outside of our product range. With our „Strap-System“, we enable easy, tool-free assembly and in combination with our „Air-System“, your device always keeps a cool head.

Details

Details

This rackmount kit was specially developed for installation in a 19 inch rack.

  • All assembly and plug-in connections have been matched.
  • 6 connections individually configurable. Choose the configuration that suits you.
  • We use keystone inline couplers for our connectors.
  • Optionally extendable with our Rail System

Supported Models:

Desktop Devices with:

  • Width: 100 – 275 mm
  • Height: Max. 33.5 mm incl. rubber bumper
  • Depth: Any depth
  • Panel front cutout: 270 x 26 mm

Strap-System

The devices are attached to the rackmount kit using Velcro straps. So no screws are needed and you don’t have to unscrew your device. The rackmount kit comes fully assembled and ready to use.

Air-System

All rackmount kits are designed to support good airflow. With our self-developed spacers in combination with the Velcro straps, the device is mounted in such a way that the existing ventilation openings are not impaired. This enables us to achieve a time-saving, device-friendly assembly solution.

Configurator

Configure the Rack Mount Kit according to your requirements here.

162,48

Delivery time: 1-2 weeks In Stock
