Raspberry Pi Rackmount Kit | 5x Slot | 10 inch | 2.00U | Rail System 200mm

>> Suitable for all Single Board Computers (SBC) with Raspberry Pi form factor

10" Raspberry Pi rack
10" Raspberry Pi rackmount
10" Raspberry Pi rack mount
10" Raspberry Pi rack
Raspberry Pi rack
Raspberry Pi rack mount
Raspberry Pi rackmount
Raspberry Pi Rackmount Kit Inserts A-G
Raspberry Pi Rackmount Kit Inserts H-M

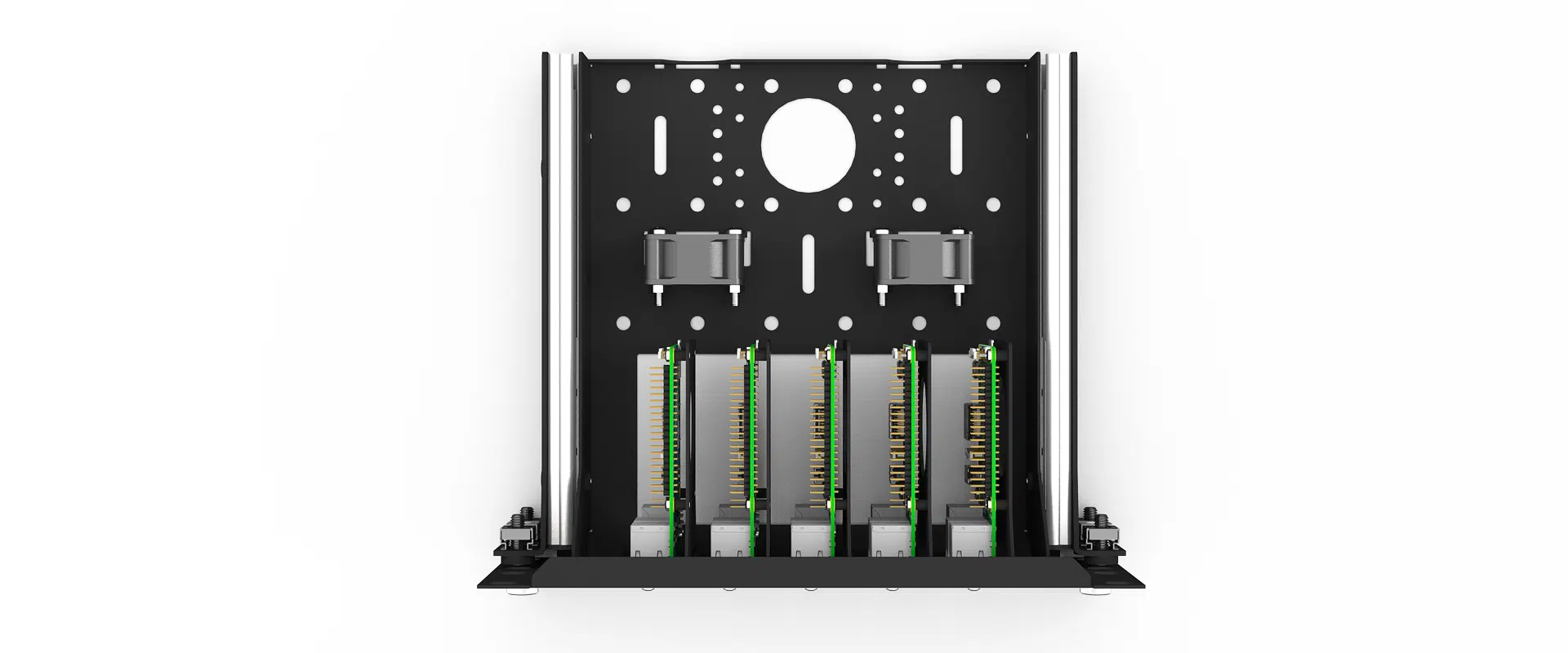

10" Raspberry Pi rack - UM-SBC-308
Slide

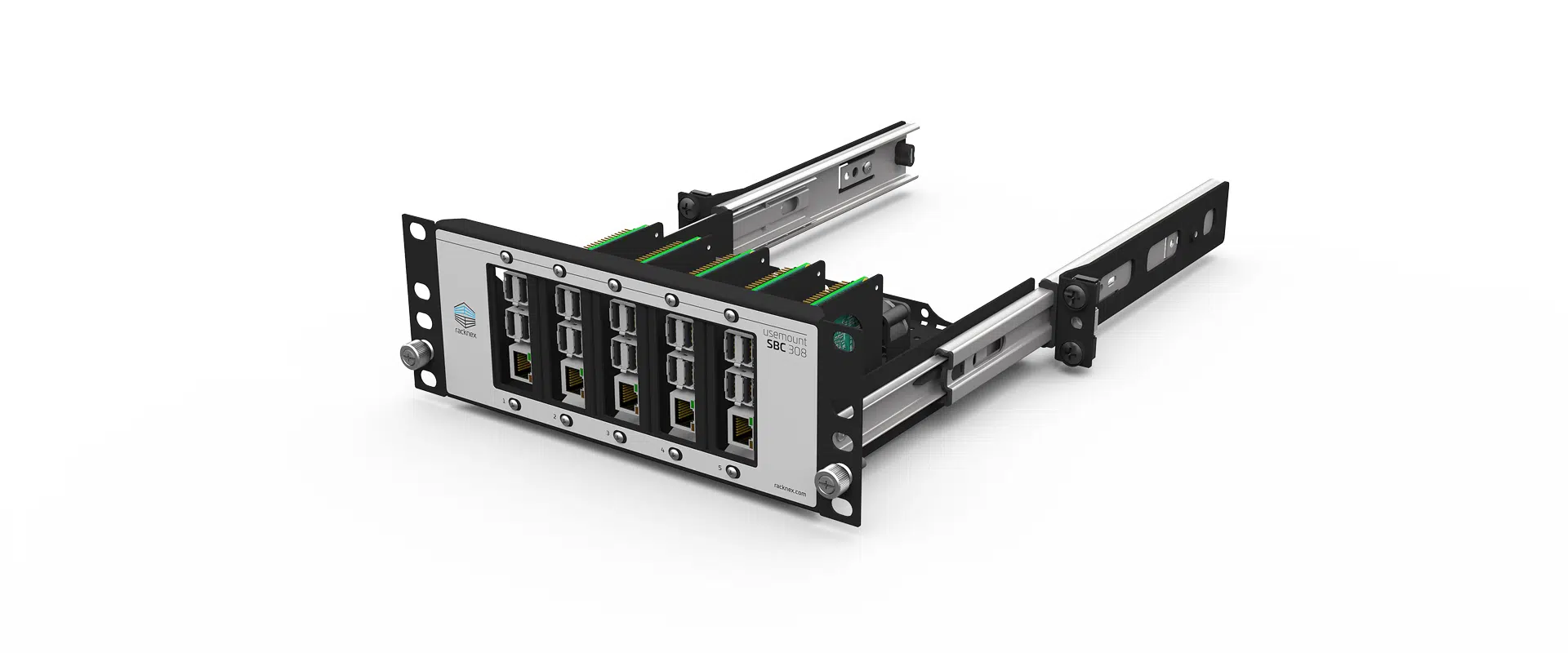

10" Raspberry Pi rackmount - UM-SBC-308

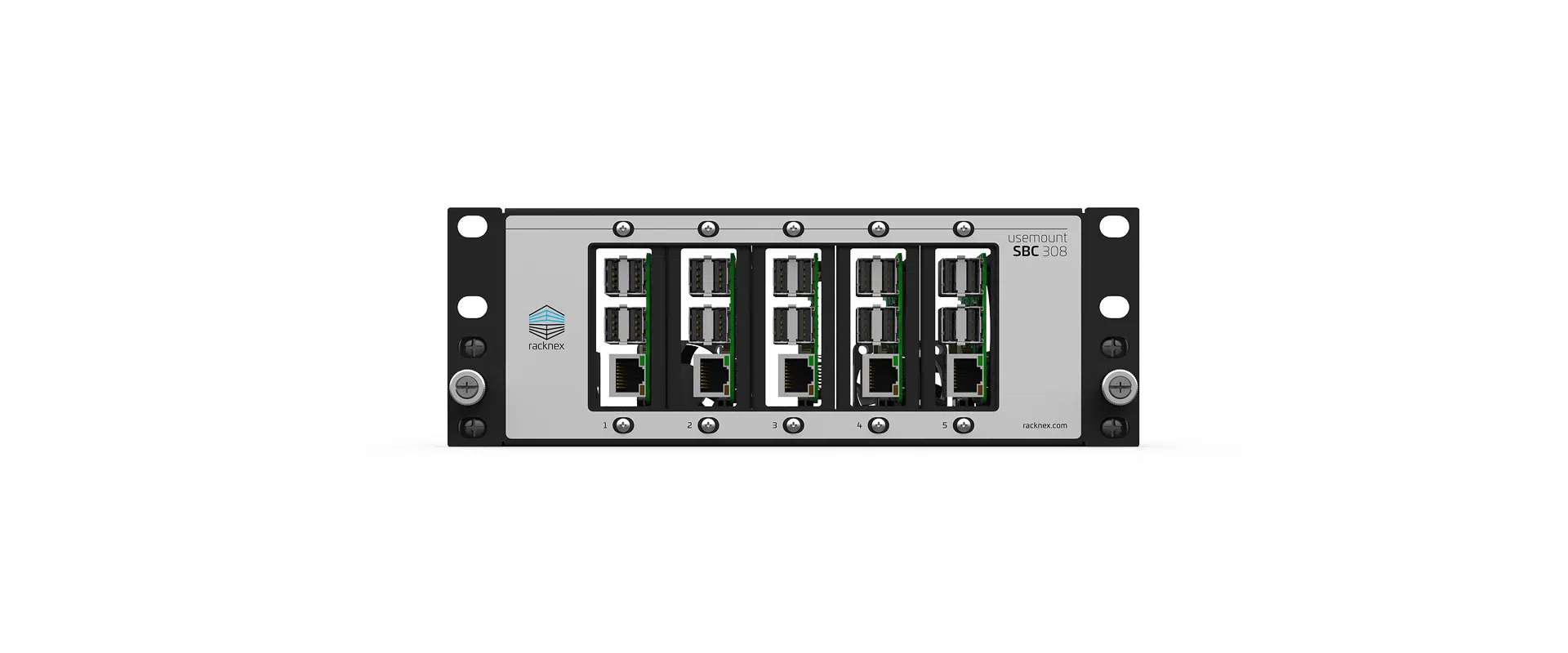

10" Raspberry Pi rack mount - UM-SBC-308

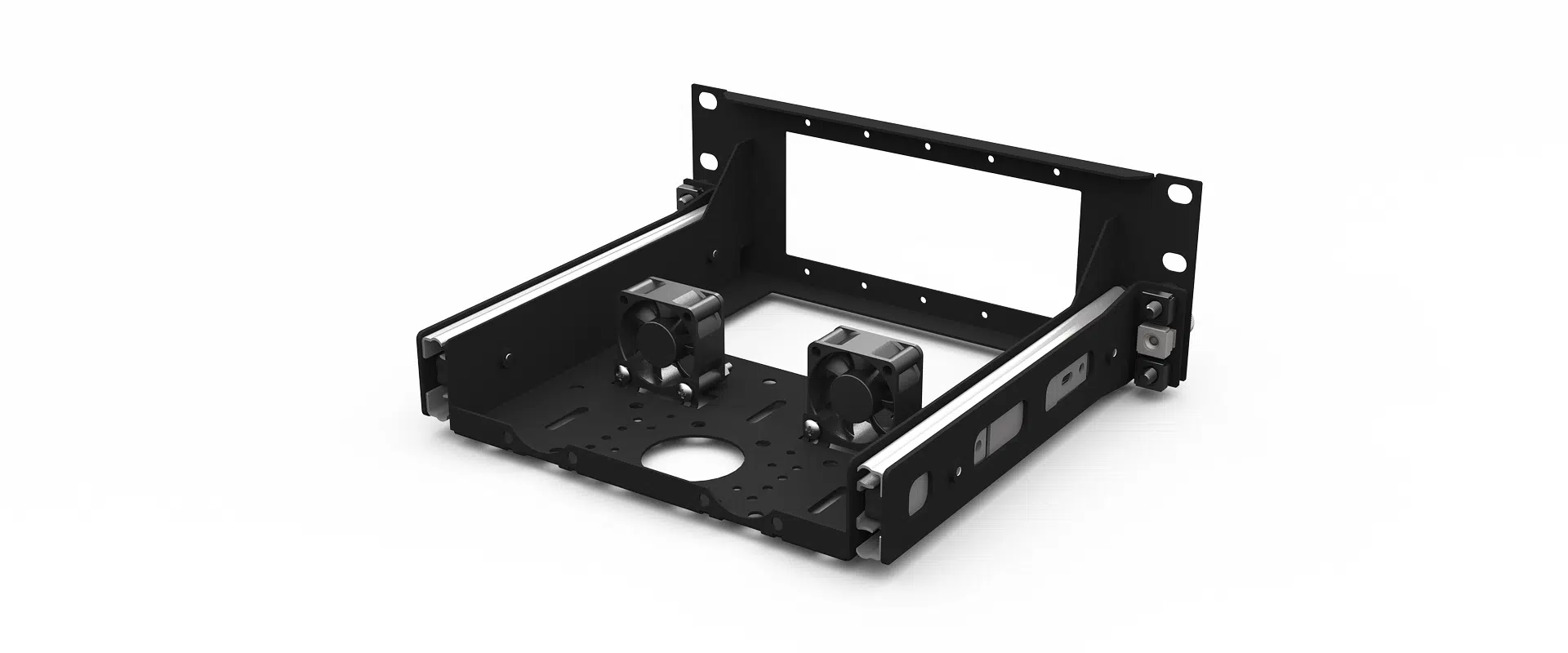

10" Raspberry Pi rack - UM-SBC-308

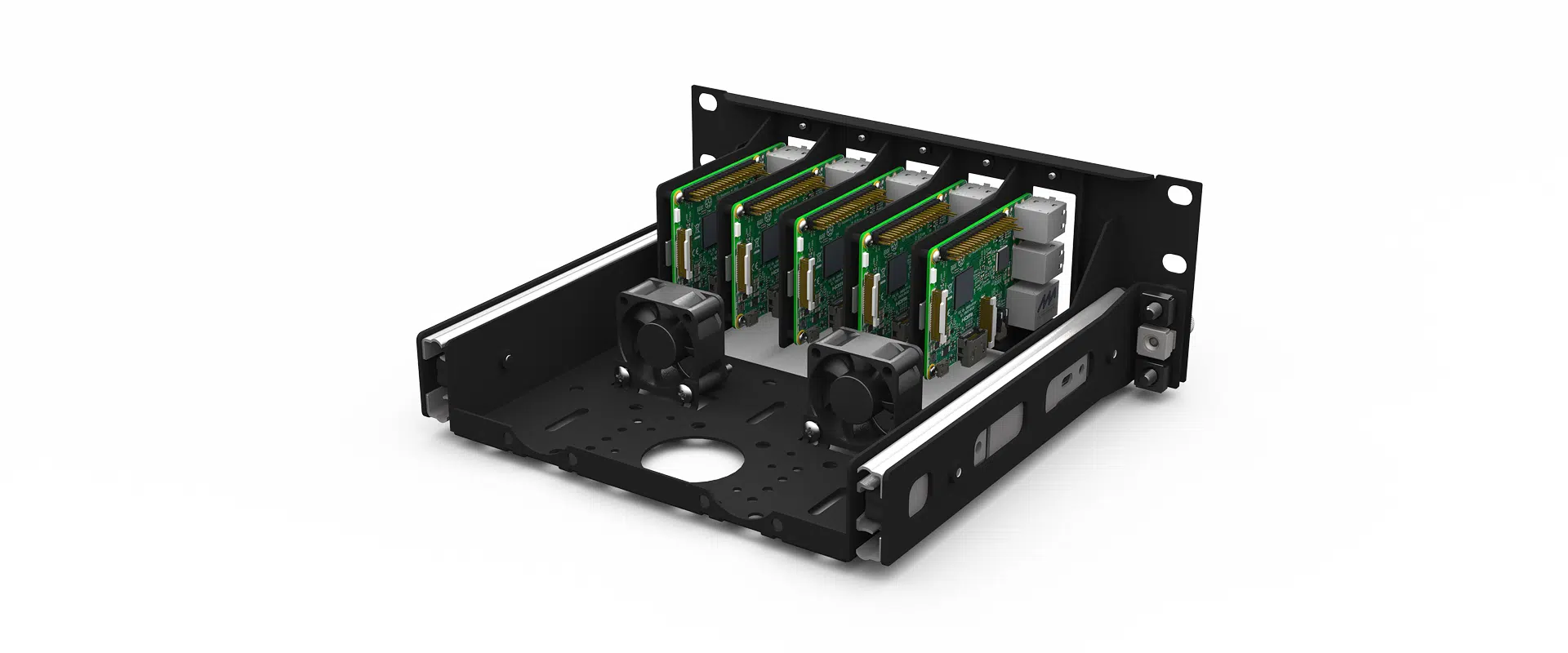

Raspberry Pi rack - UM-SBC-308

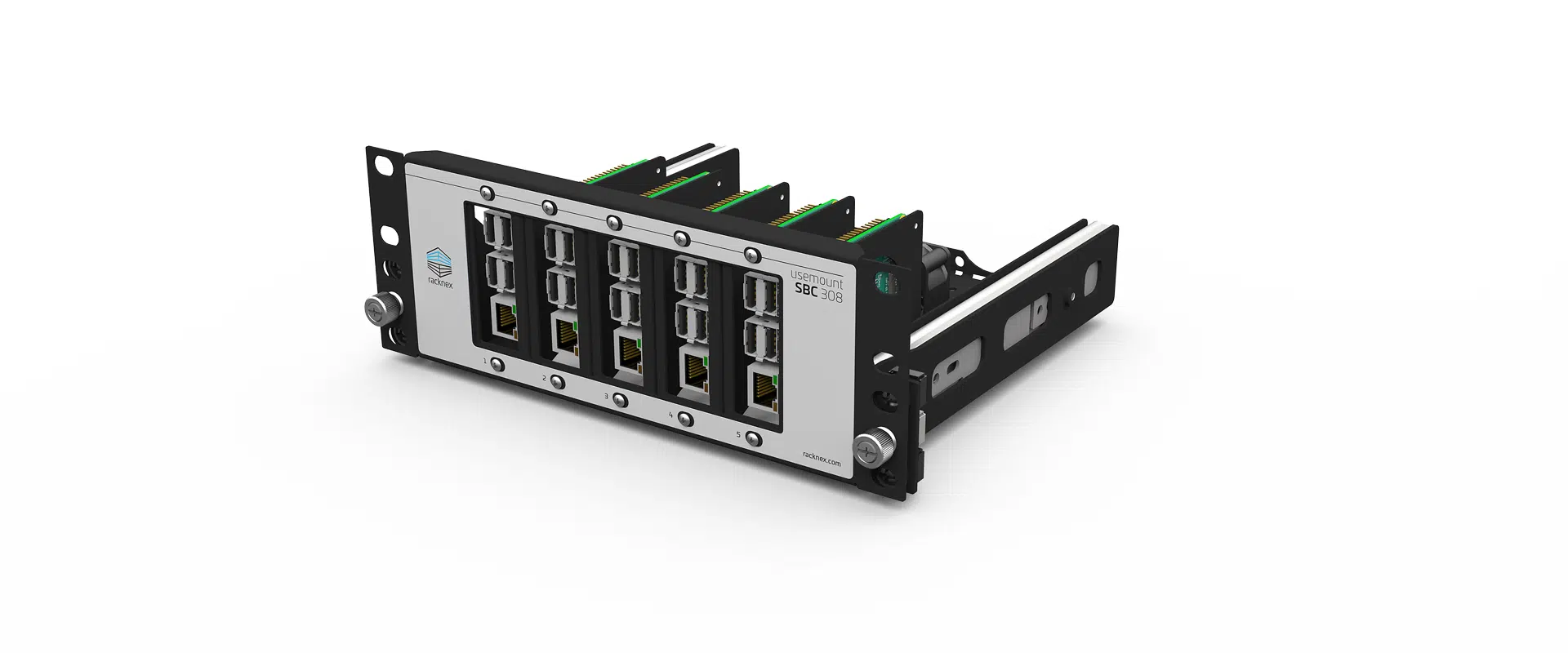

Raspberry Pi rack mount - UM-SBC-308

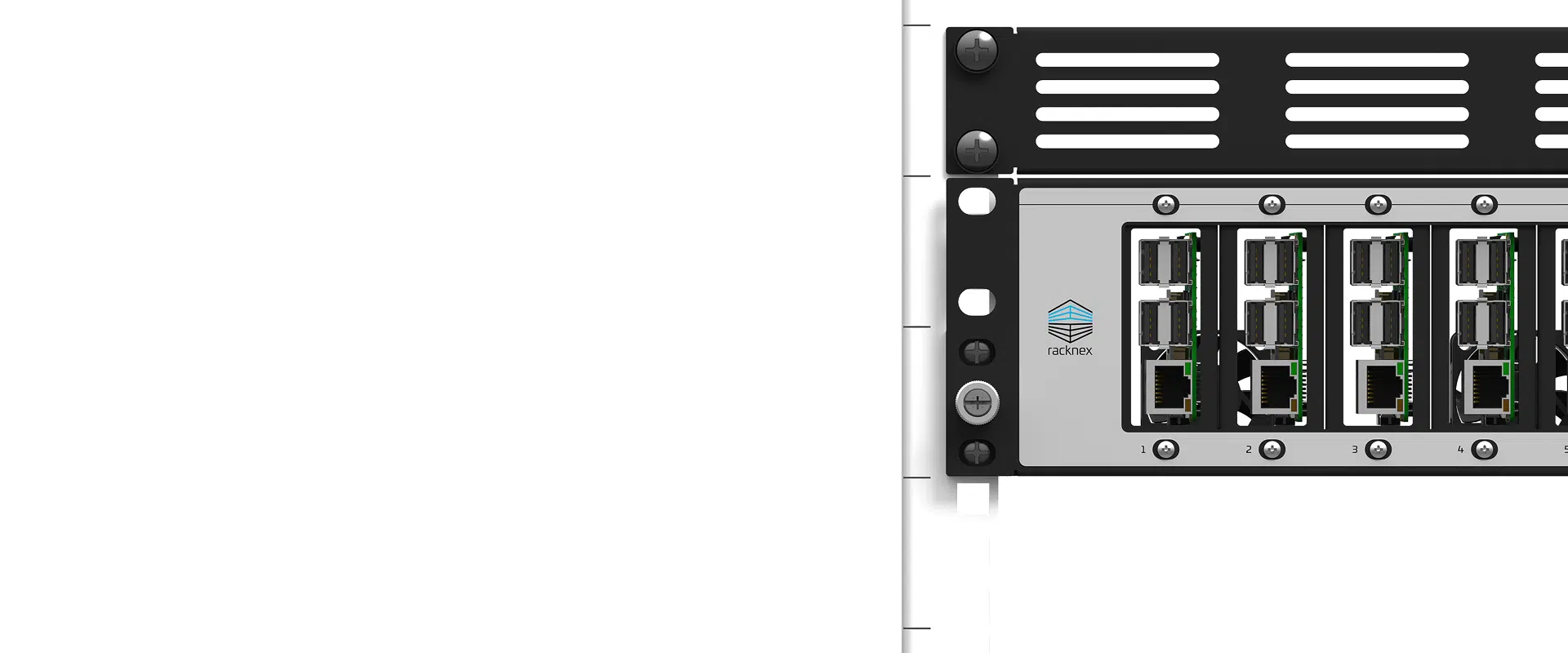

Raspberry Pi rackmount - UM-SBC-308
Raspberry Pi Rackmount Kit Inserts A-G
Raspberry Pi Rackmount Kit Inserts H-M
previous arrow
next arrow
10" Raspberry Pi rack - UM-SBC-308
Slide
10" Raspberry Pi rackmount - UM-SBC-308
10" Raspberry Pi rack mount - UM-SBC-308
10" Raspberry Pi rack - UM-SBC-308
Raspberry Pi rack - UM-SBC-308
Raspberry Pi rack mount - UM-SBC-308
Raspberry Pi rackmount - UM-SBC-308
Raspberry Pi Rackmount Kit Inserts A-G
Raspberry Pi Rackmount Kit Inserts H-M
previous arrow
next arrow

The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).

The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).

5x Pi in the 10 inch server cabinet

With the „UM-SBC-305“ you can neatly accommodate up to 5 Raspberry Pi´s or similar SBCs on 2.00U in the 10″ Rack.
All of our rackmount kits are individually configurable. Choose the configuration that suits you below.

This Raspberry Pi rackmount kit is specially designed to fit 5x single board computers into the 10 inch rack.

  • All assembly and plug-in connections have been matched.
  • We use keystone inline couplers for our connectors.
  • USB and network ports on the front.
  • Single Board Computers are not in the scope of supply.

UM-SBC-308

Delivery time: 3-4 weeks

Supported Models:
Raspberry Pi 2B
Raspberry Pi 3B
Raspberry Pi 3B+
Raspberry Pi 4B
Raspberry Pi 5
SBC with Raspberry Pi form factor | Details

Rack: 10 inch
Rack Unit: 2.00U
Material: Steel
Color: Black RAL 9005
Dimensions*: 254 x 87.8 x 210 mm

*) Dimensions = width/height/depth

Price starting from:

116,52

5x Pi in the 10 inch server cabinet

With the „UM-SBC-305“ you can neatly accommodate up to 5 Raspberry Pi´s or similar SBCs on 2.00U in the 10″ Rack.
All of our rackmount kits are individually configurable. Choose the configuration that suits you below.

This Raspberry Pi rackmount kit is specially designed to fit 5x single board computers into the 10 inch rack.

  • All assembly and plug-in connections have been matched.
  • We use keystone inline couplers for our connectors.
  • USB and network ports on the front.
  • Single Board Computers are not in the scope of supply.

Configurator

Configure the Rack Mount Kit according to your requirements here.

116,52

Delivery time: 3-4 weeks

In stock

Available build space for Raspberry Pi add-on boards

If you are toying with the idea of accommodating additional boards such as PoE-HAT or UPS in the rack, you will find the available scope below.

Insert D:

From the lower edge of the circuit board to the lower edge of the slot, you have 25.2mm available.

  • PoE-HAT: There is 4mm space from the fan screw head to the lower edge of the slot.
  • USV: There is 2mm space between the top edge of the GPIO pins and the bottom edge of the slot.
raspberry-pi-rack-mount-kits-insert-d-space

Insert E, F:

From the lower edge of the circuit board to the lower edge of the slot, you have 56.4mm available.

  • PoE-HAT: There is 27.2mm space from the fan screw head to the lower edge of the slot.
  • USV: There is 25.2mm space between the top edge of the GPIO pins and the bottom edge of the slot.
raspberry-pi-rack-mount-kits-insert-e-f-space

Single Board Computer with identical form factor for Raspberry Pi

As mentioned above, you can mount single board computers with the same form factor as the Pi 5 in the Raspberry Pi Rackmount Kit. Pay attention to the basic dimensions of the Pi and the drilling pattern/diameter.

If they match, your single-board computers are compatible with our rack and can therefore be used without any problems. Single board computers tested by us for compatibility are: ASUS Tinker Board | ODROID-C1+

single-board-computer-with-identical-form-factor-for-raspberry-pi
