Lenovo ThinkStation Rackmount Kit | 1x Slot | 19 inch | 2.33U | Rail System 300 mm
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
Lenovo ThinkStation Rackmount Kit “UM-LEN-206”

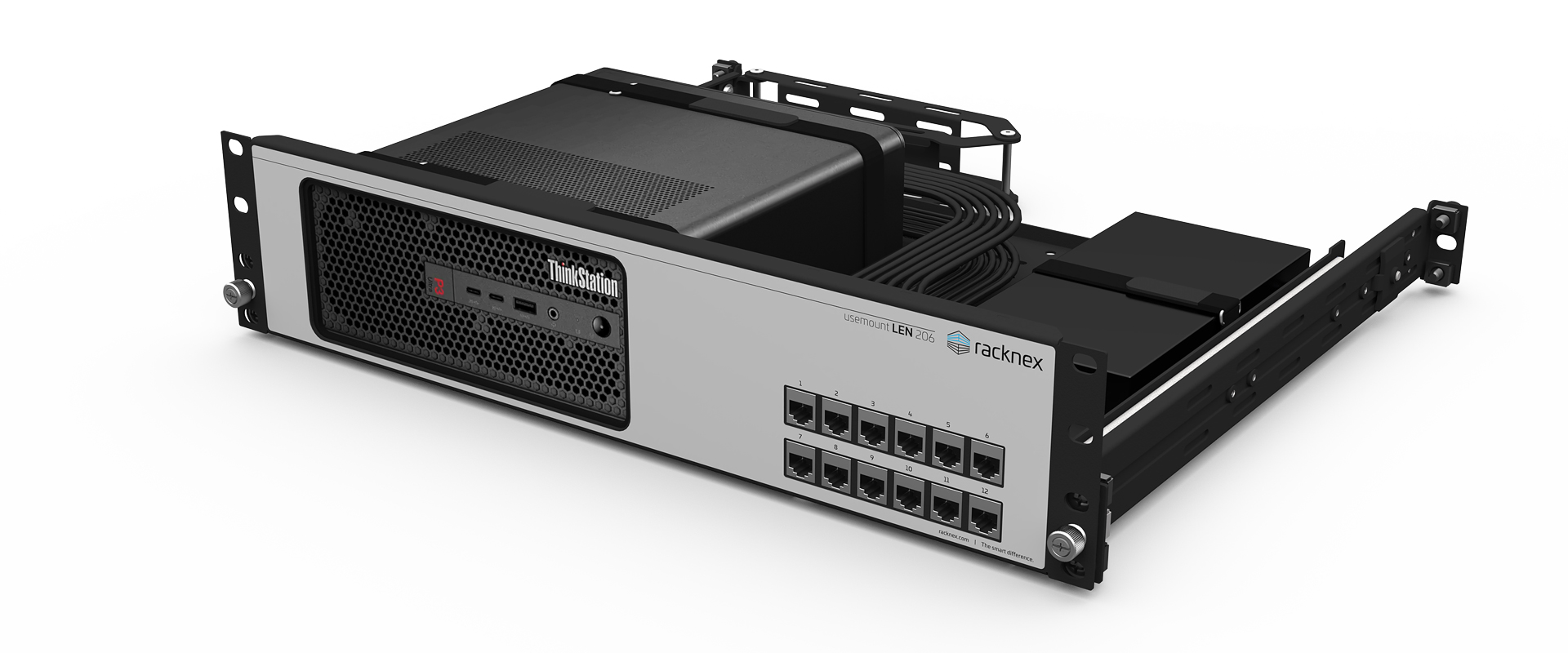

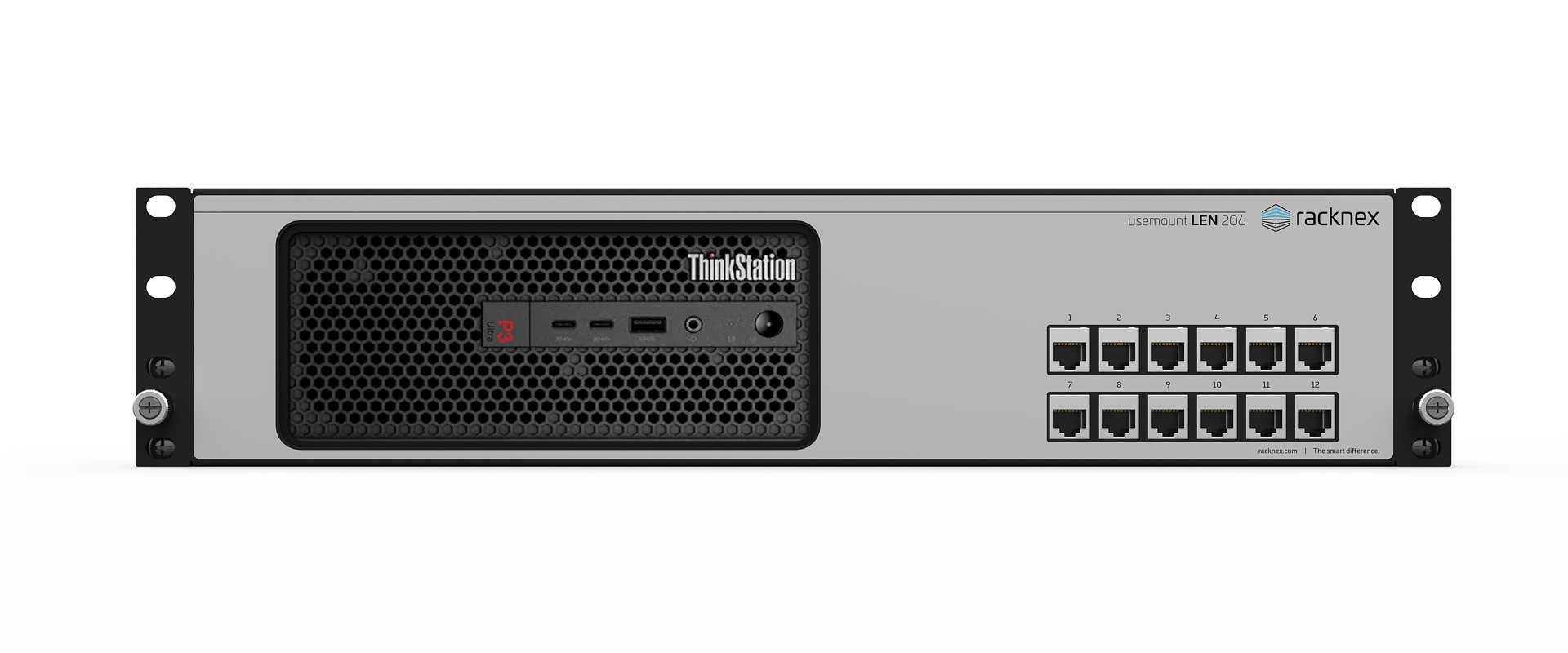

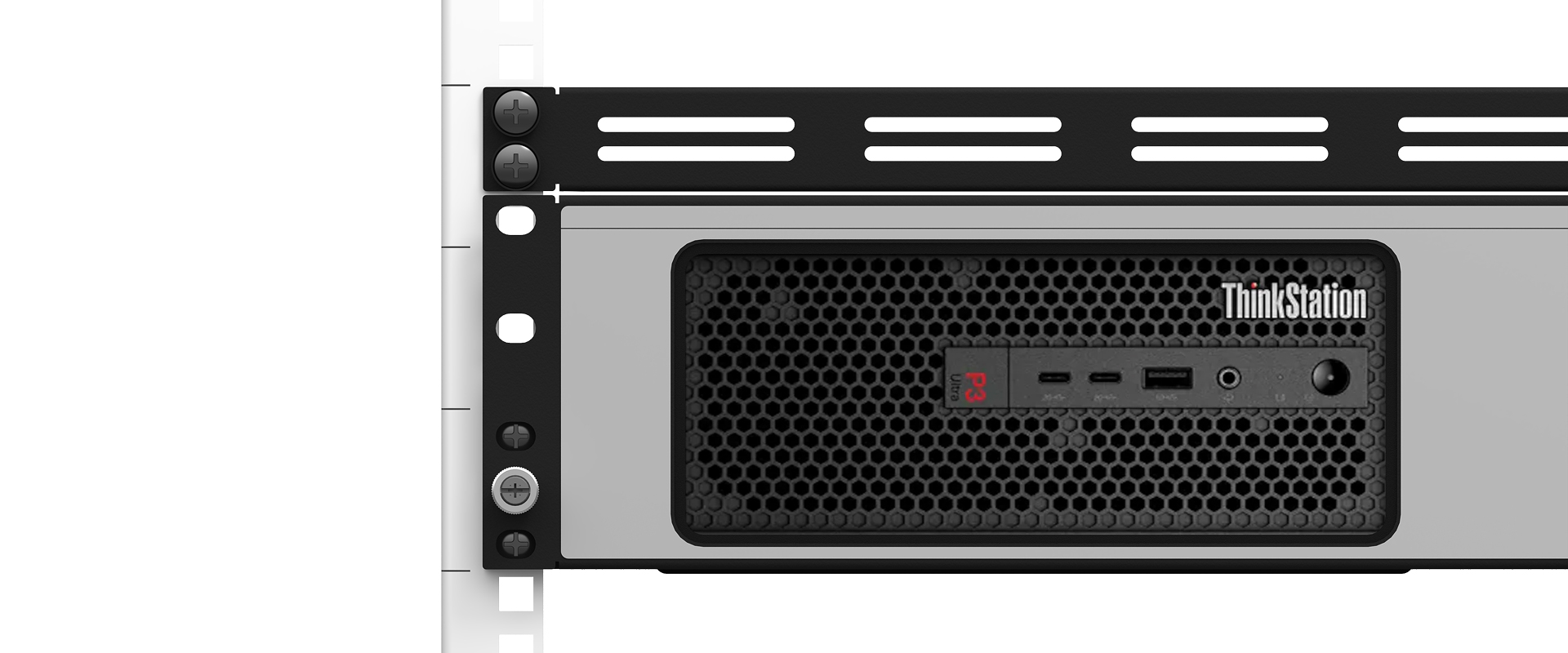

The racknex UM-LEN-206 is a 19 inch rackmount kit specifically designed for Lenovo ThinkStation devices in the Mini-tower (3.9L) form factor. It allows one compatible Lenovo mini PC and its power supply to be installed neatly and securely in a standard 19 inch rack while occupying 2.33U of rack space.
The kit is compatible with a wide range of Lenovo ThinkStation models, including Lenovo ThinkStation P3 Ultra SFF, Lenovo ThinkStation P3 Ultra SFF Gen 2, and Lenovo ThinkStation P360 Ultra, as well as other devices with dimensions (L x W x H) of 202 x 223 x 87 mm (7.95 x 8.78 x 3.43 inches).
Up to twelve connectors can be routed to the front of the rackmount kit via a cable and keystone combination. The connectors are flush-mounted, clearly labeled, and can be individually configured along with the corresponding cables. The connector openings come with blind covers as standard and can be adapted to match your exact product model.

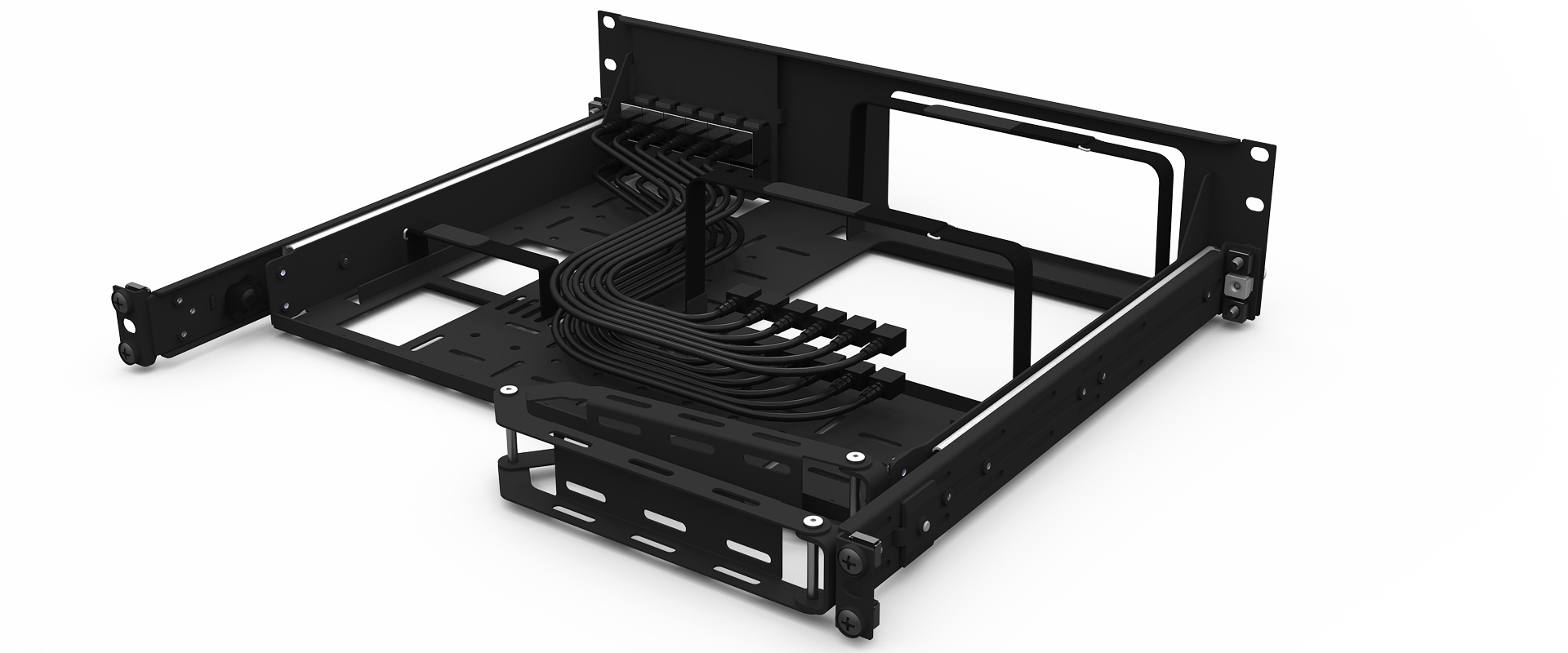

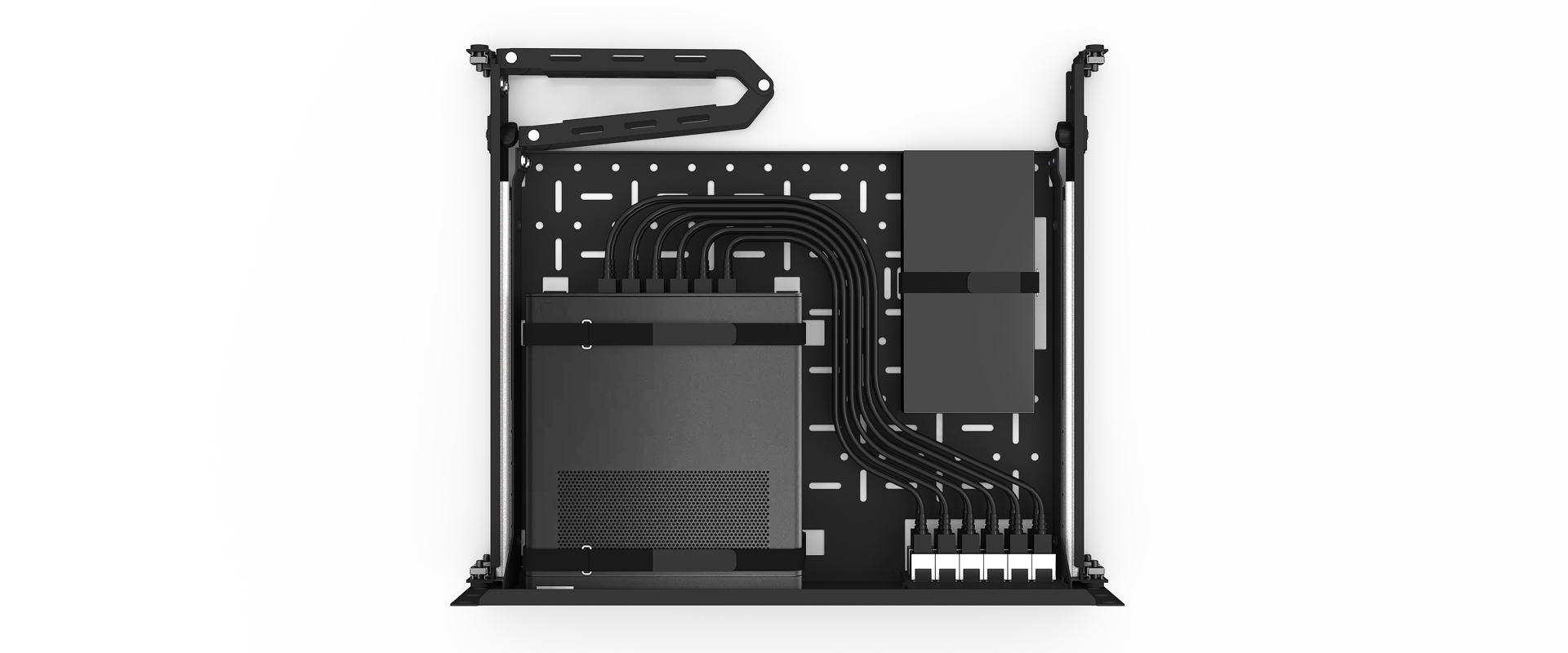

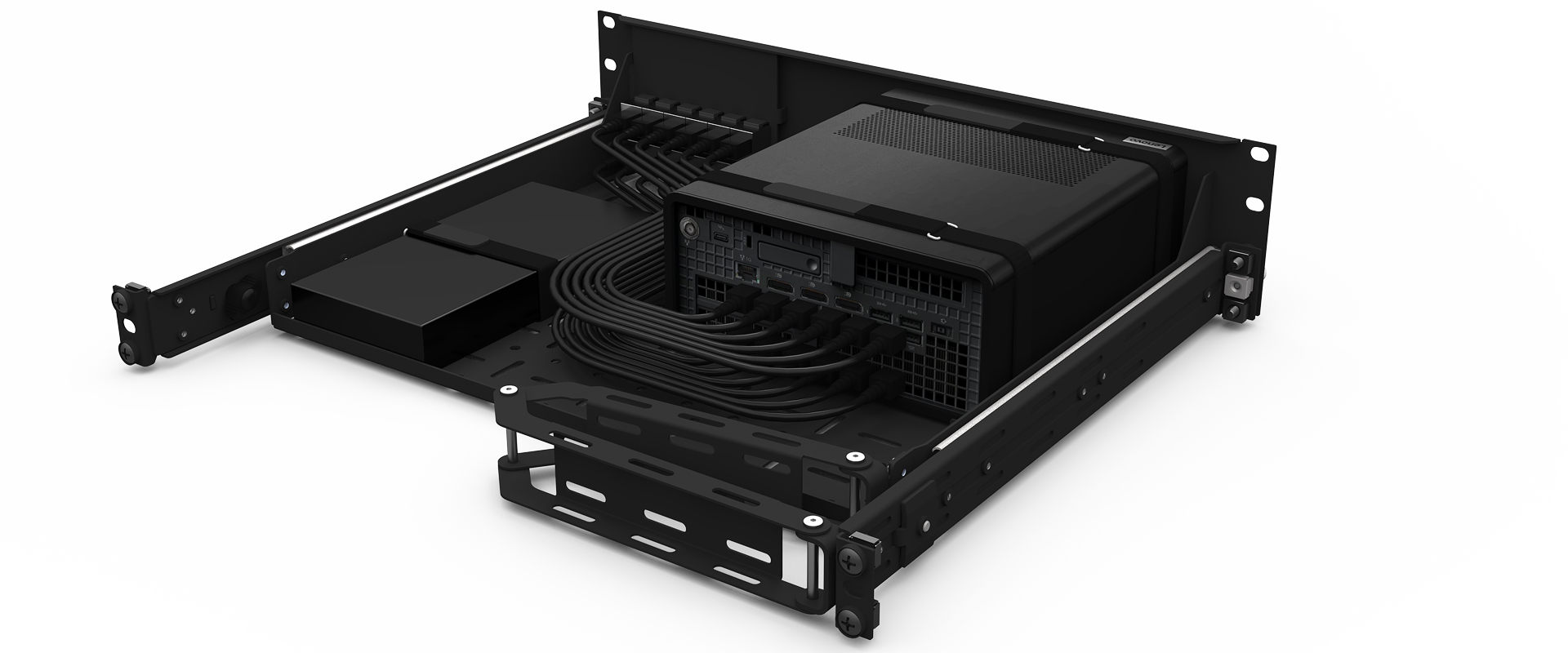

For neat cable management, the Lenovo ThinkStation Rackmount Kit features multiple fixing points throughout the rackmount kit. Using the included cable ties, cables can be neatly secured in place. To support proper airflow, the kit also includes ventilation cutouts in the mounting area. The device is gently secured to the rackmounting kit using Velcro straps and is ready for immediate use after attaching the rack mount screws included in the scope of supply.

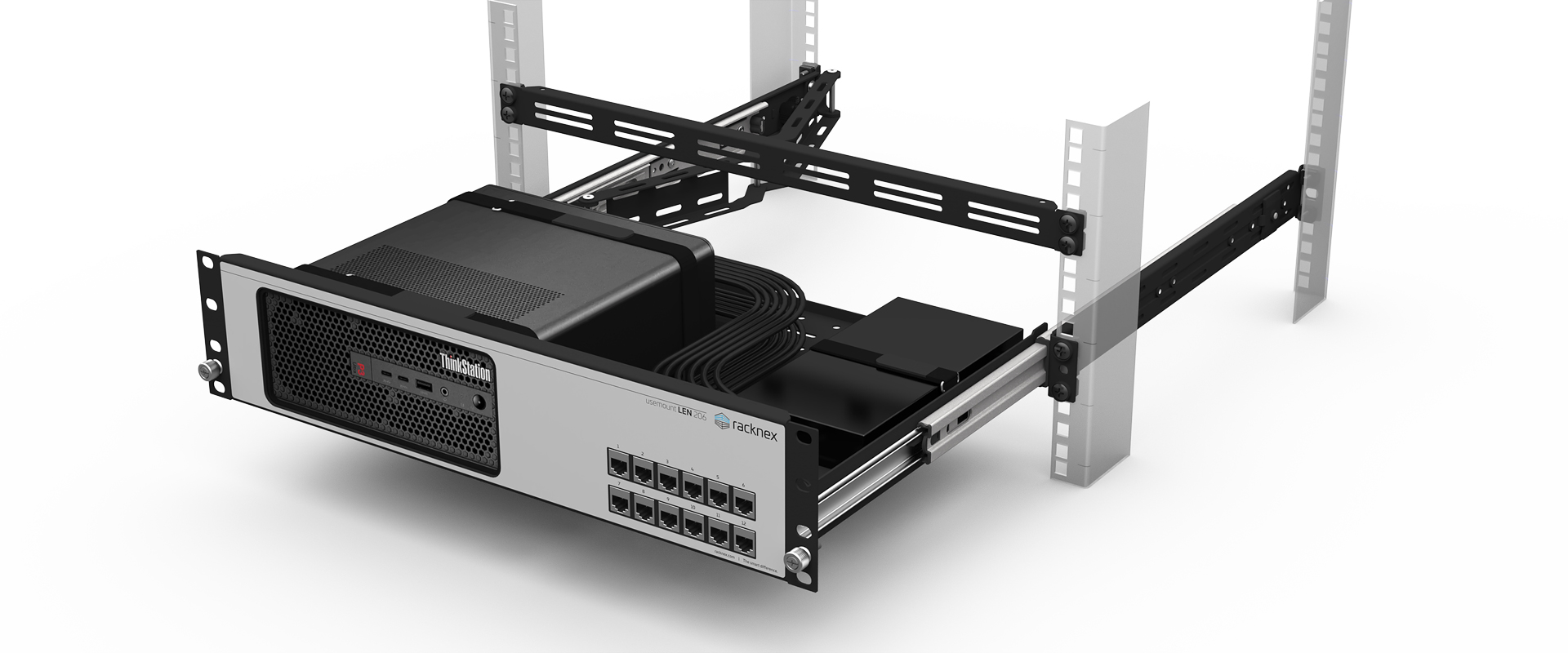

The optional “Rail System” can extend the rackmount kit by 300 mm, is mounted at four points inside the server rack and is suitable for cabinet depths of 400mm to 900mm (measured from the front posts to the rear posts). In addition to the “Rail System”, you can also configure a “Cable Managment Arm”, which ensures that your cables are safely organized and helps prevent tangles and obstructions in your 19-inch rack.
The Lenovo device is not included.
UM-LEN-206
Delivery time: 11-12 weeks
- Lenovo ThinkStation P3 Ultra SFF
- Lenovo ThinkStation P3 Ultra SFF Gen 2
- Lenovo ThinkStation P360 Ultra
- Mini-tower (3.9L)
- 202 x 223 x 87 mm (7.95 x 8.78 x 3.43 inches)
- Rack:
- 19 inch
- Rack Unit:
- 2.33U
- Material:
- Steel
- Color:
- Black RAL 9005
- Brand:
- racknex
- Dimensions:
- 483 × 335 × 102 mm
Price starting from:
207,60 €
Lenovo ThinkStation Rackmount Kit “UM-LEN-206”
The racknex UM-LEN-206 is a 19 inch rackmount kit specifically designed for Lenovo ThinkStation devices in the Mini-tower (3.9L) form factor. It allows one compatible Lenovo mini PC and its power supply to be installed neatly and securely in a standard 19 inch rack while occupying 2.33U of rack space.
The kit is compatible with a wide range of Lenovo ThinkStation models, including Lenovo ThinkStation P3 Ultra SFF, Lenovo ThinkStation P3 Ultra SFF Gen 2, and Lenovo ThinkStation P360 Ultra, as well as other devices with dimensions (L x W x H) of 202 x 223 x 87 mm (7.95 x 8.78 x 3.43 inches).
Up to twelve connectors can be routed to the front of the rackmount kit via a cable and keystone combination. The connectors are flush-mounted, clearly labeled, and can be individually configured along with the corresponding cables. The connector openings come with blind covers as standard and can be adapted to match your exact product model.
For neat cable management, the Lenovo ThinkStation Rackmount Kit features multiple fixing points throughout the rackmount kit. Using the included cable ties, cables can be neatly secured in place. To support proper airflow, the kit also includes ventilation cutouts in the mounting area. The device is gently secured to the rackmounting kit using Velcro straps and is ready for immediate use after attaching the rack mount screws included in the scope of supply.
The optional “Rail System” can extend the rackmount kit by 300 mm, is mounted at four points inside the server rack and is suitable for cabinet depths of 400mm to 900mm (measured from the front posts to the rear posts). In addition to the “Rail System”, you can also configure a “Cable Managment Arm”, which ensures that your cables are safely organized and helps prevent tangles and obstructions in your 19-inch rack.
The Lenovo device is not included.
