Raspberry Pi Rackmount Kit | 12x Slot | 19 inch | 2.00U | Rail System 200mm
>> Suitable for all Single Board Computers (SBC) with Raspberry Pi form factor
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
12 Pi on 2.00U in the 19 inch server cabinet
With the “UM-SBC-207” you can neatly accommodate up to 12 Raspberry Pi´s or similar SBCs on 2.00U in the 19″ Rack.
Each Pi is screwed to the Rackmount Kit four times with M2.5 screws (included in the scope of supply).
Single board computers are not included.
Details
Configuration options of the “UM-SBC-207”
Like every Raspberry Pi Rackmount Kit from us, you can configure the “UM-SBC-207” according to your specific needs.
Rail System
his allows your devices to be conveniently operated by pulling out the rackmount kit. A telescopic rail on each side of the Raspberry Rack allows for easy access. The rail extension is 200 mm. We recommend it if you want to always have access to your memory card without dismantling the rackmount kit.
Fan Holder for fan 40 or 60
The “UM-SBC-207” offers a mounting option for up to 6 fans (40 x 40 mm with a hole spacing of 32 x 32 mm / 60 x 60 mm with a hole spacing of 50 x 50 mm). This allows the devices to be additionally ventilated. The Fan Holder attaches to the rackmount kit with two screws behind the Pi.
Rack Panel
This allows the free space of the rack mount kit to be closed up to the next full rack unit.
UM-SBC-207
Delivery time: 1-2 weeks In Stock
Supported Models:
Raspberry Pi 2B
Raspberry Pi 3B
Raspberry Pi 3B+
Raspberry Pi 4B
Raspberry Pi 5
SBC with Raspberry Pi form factor | Details
Rack: 19 inch
Rack Unit: 2.00U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 87.8 x 210 mm
*) Dimensions = width/height/depth
Price starting from:
140,76 €
12 Pi on 2.00U in the 19 inch server cabinet
With the “UM-SBC-207” you can neatly accommodate up to 12 Raspberry Pi´s or similar SBCs on 2.00U in the 19″ Rack.
Each Pi is screwed to the Rackmount Kit four times with M2.5 screws (included in the scope of supply).
Single board computers are not included.
Details
Configuration options of the “UM-SBC-207”
Like every Raspberry Pi Rackmount Kit from us, you can configure the “UM-SBC-207” according to your specific needs.
Rail System
his allows your devices to be conveniently operated by pulling out the rackmount kit. A telescopic rail on each side of the Raspberry Rack allows for easy access. The rail extension is 200 mm. We recommend it if you want to always have access to your memory card without dismantling the rackmount kit.
Fan Holder for fan 40 or 60
The “UM-SBC-207” offers a mounting option for up to 6 fans (40 x 40 mm with a hole spacing of 32 x 32 mm / 60 x 60 mm with a hole spacing of 50 x 50 mm). This allows the devices to be additionally ventilated. The Fan Holder attaches to the rackmount kit with two screws behind the Pi.
Rack Panel
This allows the free space of the rack mount kit to be closed up to the next full rack unit.
Configurator
Configure the Rack Mount Kit according to your requirements here.

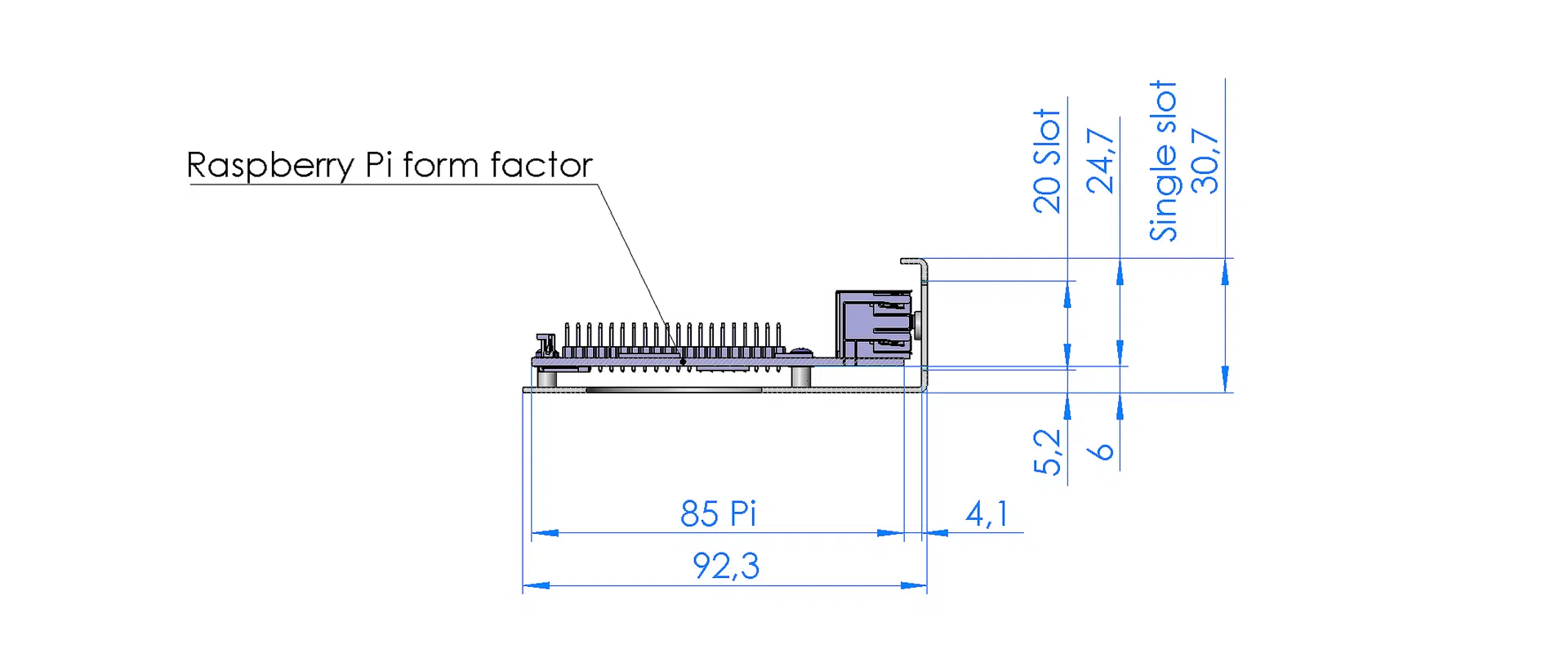

Available build space for Raspberry Pi add-on boards
If you are considering adding additional cards such as PoE HAT or PCIe expansion cards to the rack, see below for available space.
Insert D
Suitable for Raspberry Pi with Poe-HAT.
Insert E
Suitable for Raspberry Pi with Poe-HAT.
Insert F
Suitable for Raspberry Pi with Poe-HAT.
Single Board Computer with identical form factor for Raspberry Pi
As mentioned above, you can mount single board computers with the same form factor as the Pi 5 in the Raspberry Pi Rackmount Kit. Pay attention to the basic dimensions of the Pi and the drilling pattern/diameter.
If they match, your single-board computers are compatible with our rack and can therefore be used without any problems. Single board computers tested by us for compatibility are: ASUS Tinker Board | ODROID-C1+
Related products
1 review for UM-SBC-207
Only logged in customers who have purchased this product may leave a review.
Available build space for Raspberry Pi add-on boards
If you are considering adding additional cards such as PoE HAT or PCIe expansion cards to the rack, see below for available space.
Philip Neuenburg –
I have 2 of these in use now for a a while, one fully stacked with poe powered rpi4s and the second one with usb-cable-connected m.2 ssd storage adapters (wonderful thing is that two X825 V2.0 fit right together into one of the rpi4 brackets, so one of these kits can also be used instead to be filled with up to 24 external m.2 ssds). Great so far for me, rails and everything is quality built. Also nice to see they added the Noctua fans I bought myself back then (because yes, they are a wonderful choice for this) to the shop so you don’t need to buy them separably anymore.
If one would be nitpicking, possible improvements would be the availability of an external power supply for 6 fans ready to go sold in the shop (because powering from the rpis makes a fan which airflow affects 2 rpis beeing dependent on one single one of them running and the ssds for example in my case need external power anyway) and – despite the rails being great – individual cages (like for harddrives in servers) for the rpis would be even more convenient, but again, that’s already nitpicking, this kit is not exactly cheap but worth it’s money.
