NVIDIA Jetson AGX Thor Developer Kit Rack Mount Kit | 2x Slot | 19 inch | 1.66U | Rail System 300mm
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
NVIDIA Jetson AGX Thor Developer Kit Rack Mount Kit for 19-inch Racks

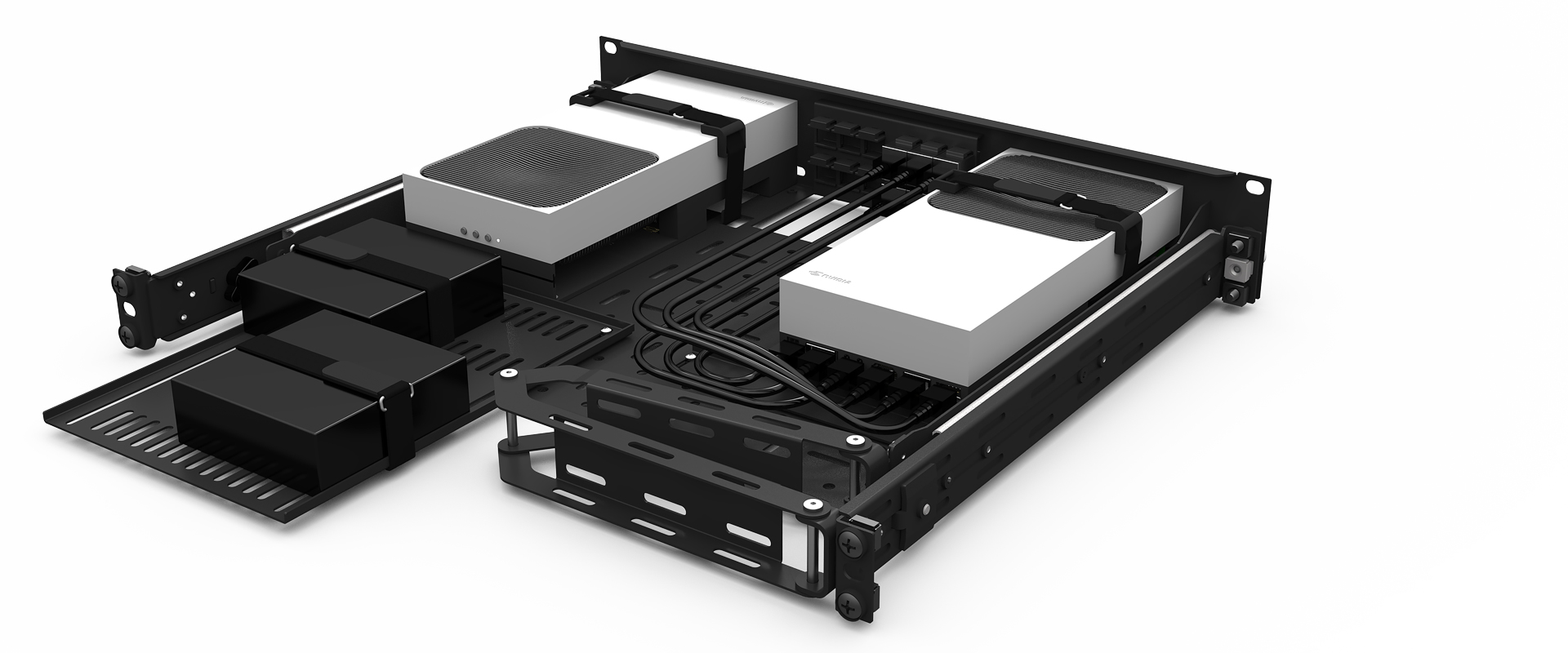

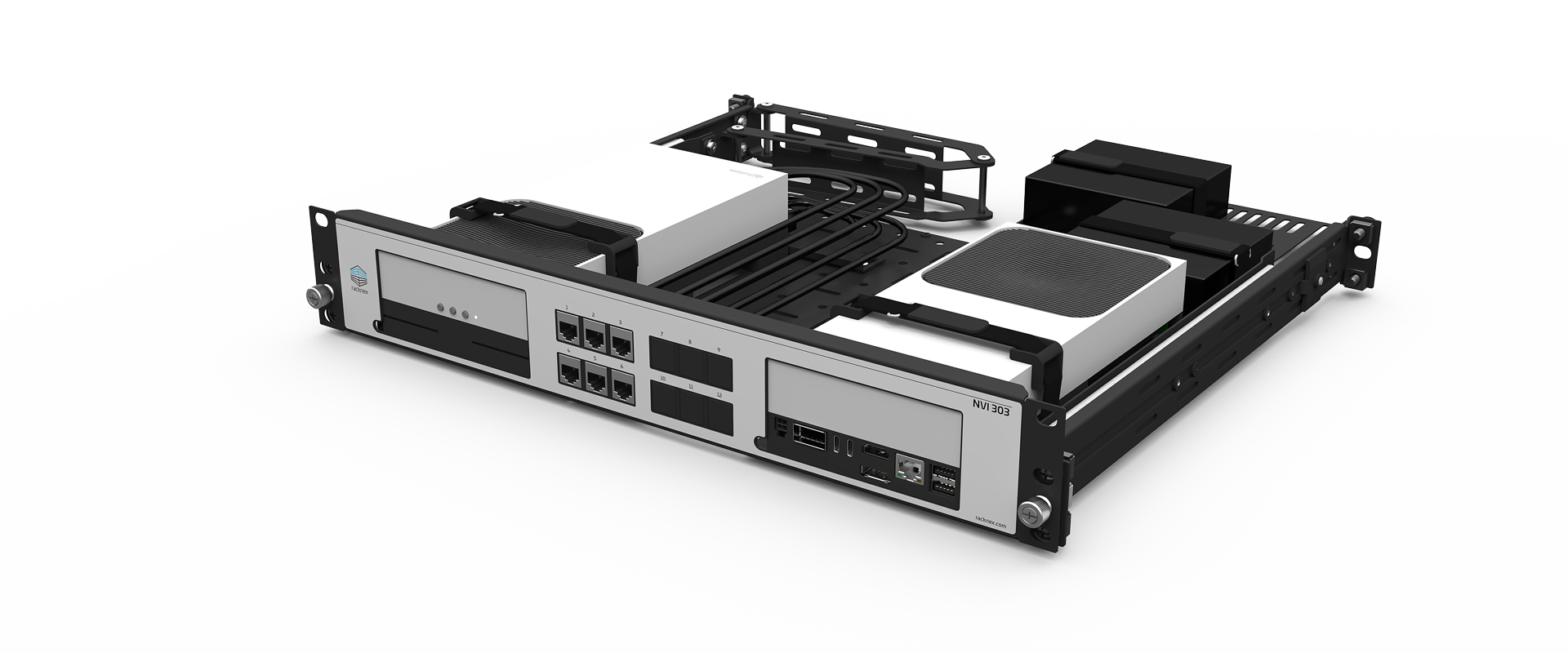

The NVIDIA Jetson AGX Thor Rack Mount Kit “UM-NVI-303” allows you to mount two NVIDIA Jetson AGX Thor Developer Kit units with their associated power supplies on 1.66U of space in a 19 inch rack.

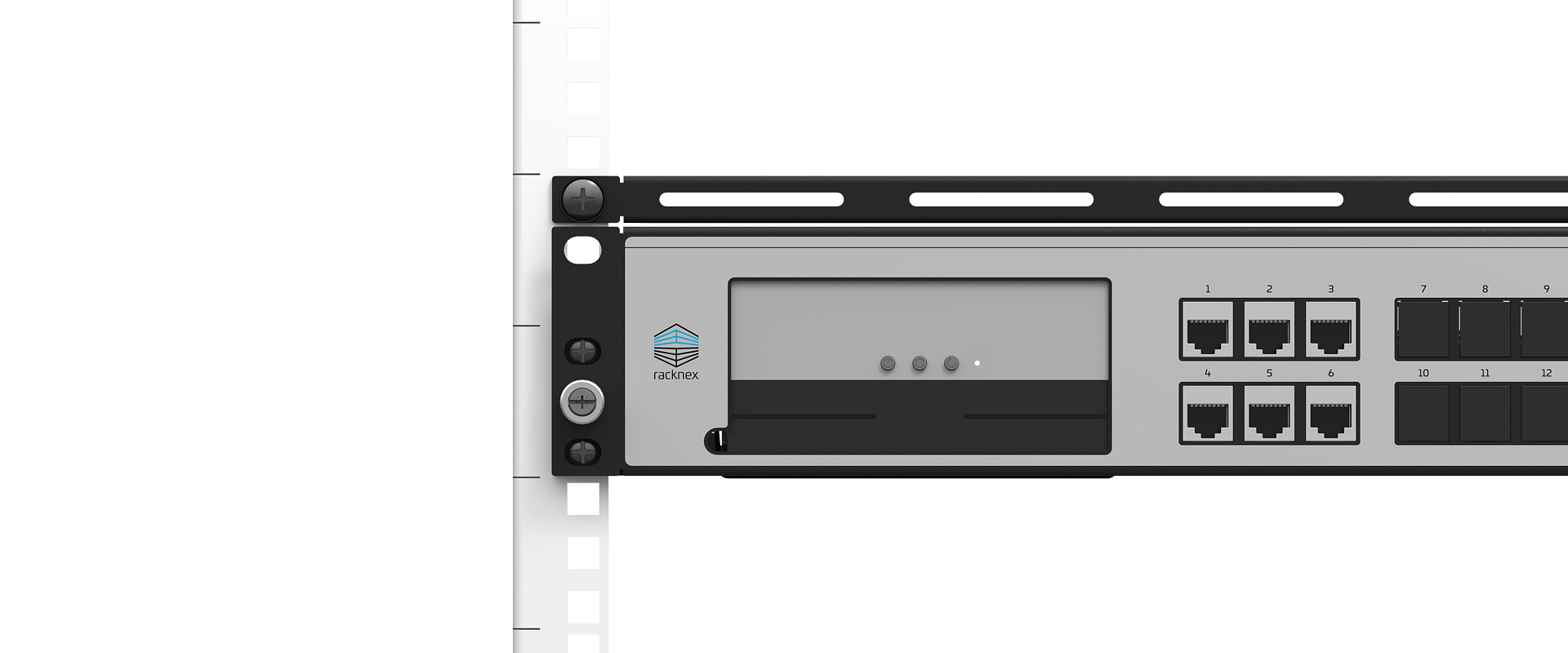

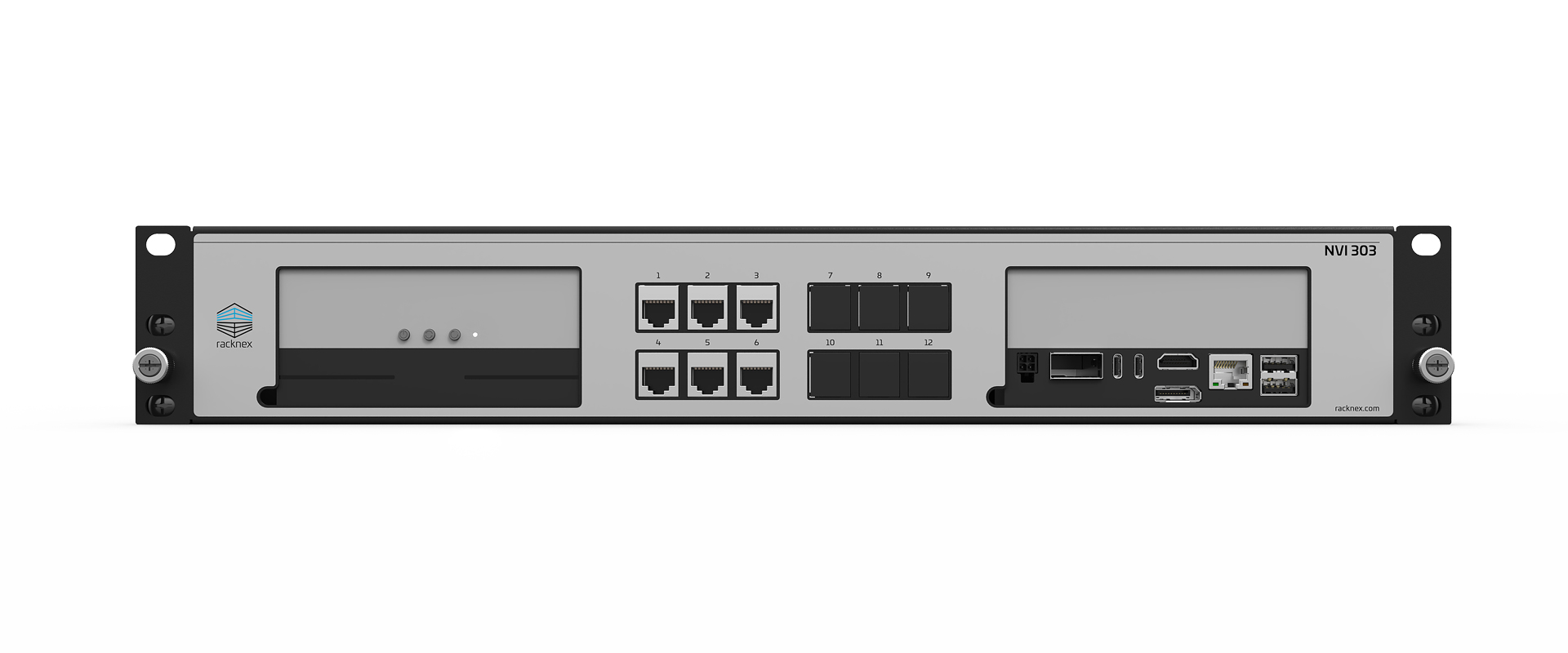

Six connectors per NVIDIA Jetson AGX Thor can be routed to the front of the rack mount kit using a cable and keystone combination. The connectors come standard with blind covers and can be configured to match your needs. The rack mount kit is designed to allow you to mount the NVIDIA Jetson AGX Thor units in either direction. Connectors facing the front or power button facing the front. The NVIDIA Jetson AGX Thor units are gently secured to the rack mount kit with a Velcro strap and are ready for immediate use after attaching the four rack mount screws (included in scope of supply).

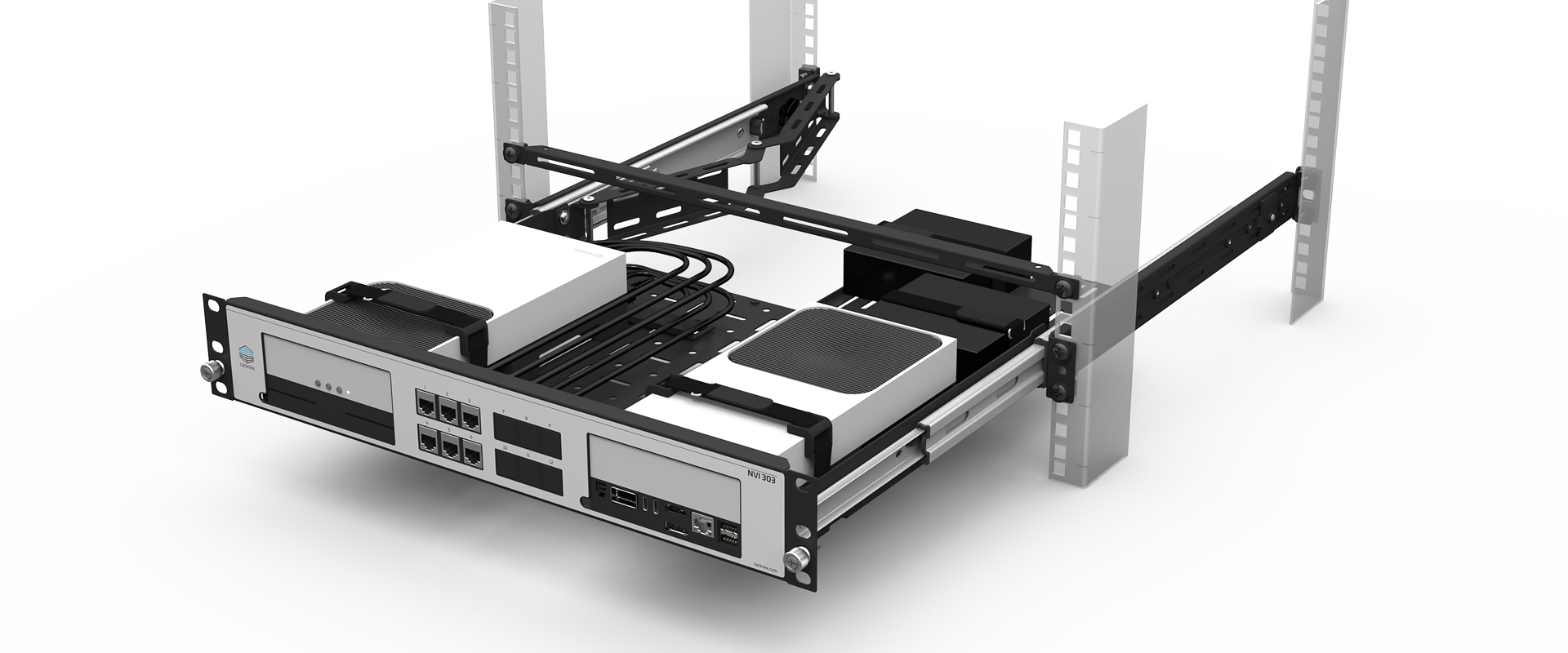

The “Rail System” allows the kit to slide out like a drawer for quick and easy access. It. extends the rack mount kit by 300 mm, is mounted at four points inside the server cabinet, and is suitable for cabinet depths of 400mm to 900mm (measured from the front posts to the rear posts). In addition to the “Rail System”, you can configure a “Cable Management Arm”, which ensures that your cables are safely organized and helps prevent tangles and obstructions in your 19-inch rack.

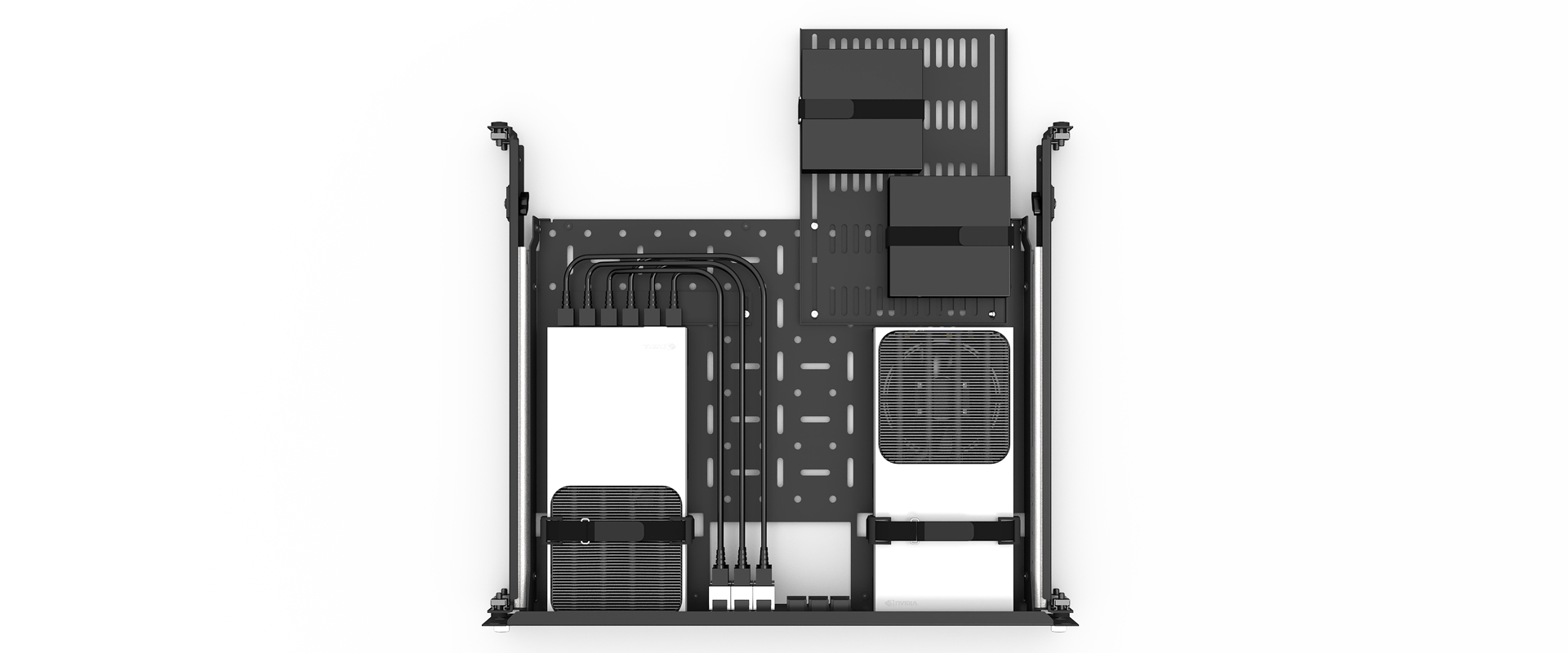

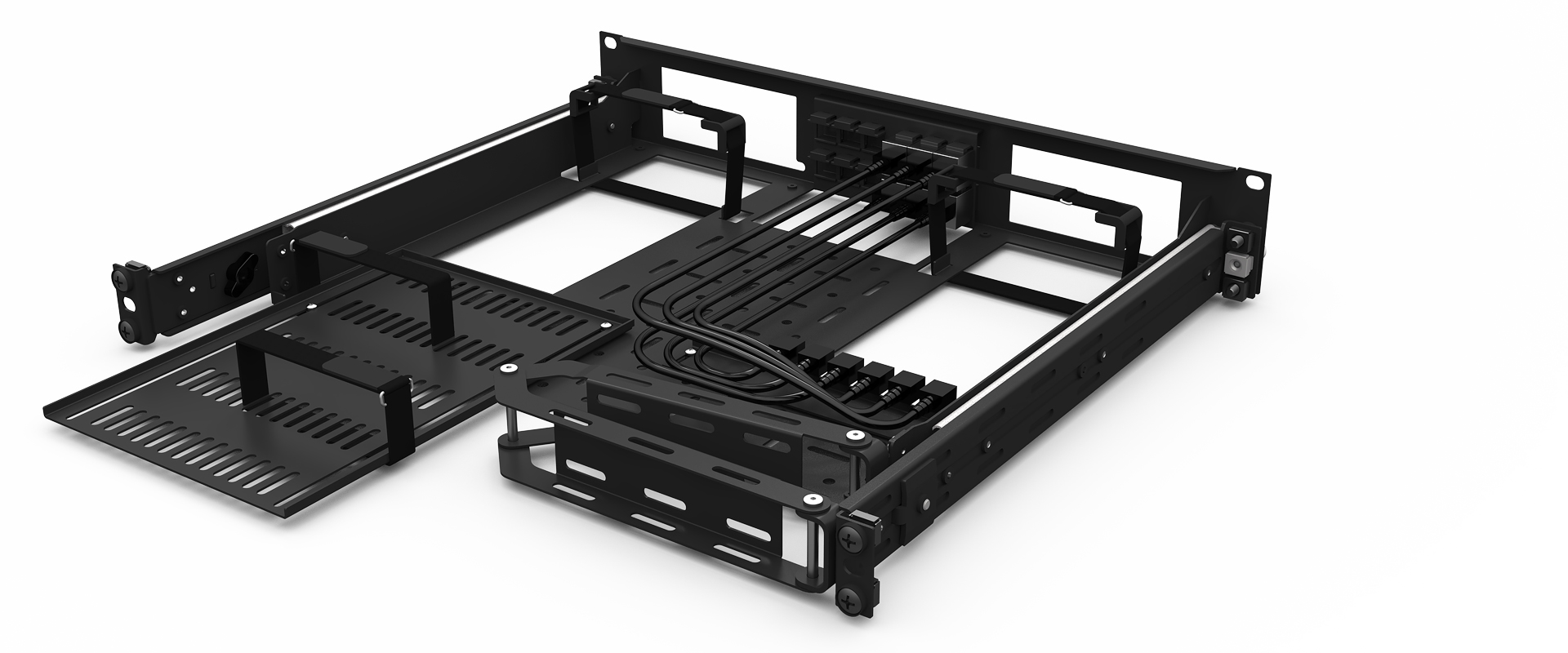

For neat cable management, the rack mount kit features holes directly behind the connectors. The included cable ties make it easy to secure cables to the rack mount kit. To help with air circulation, there are also cutouts at the points where the NVIDIA Jetson AGX Thor units attach to the rack mount kit.
Optionally, you can cover a free slot temporarily or permanently with our “Slot Cover” or add a second “Extension Plate”. Please note that two Extension Plates are not compatible with the “Cable Management Arm”.
The NVIDIA Jetson AGX Thor Developer Kits are not included in the scope of supply.
UM-NVI-303
Delivery time: 11-12 weeks
- NVIDIA Jetson AGX Thor Developer Kit
- Rack:
- 19 inch
- Rack Unit:
- 1.66U
- Material:
- Steel
- Color:
- Black RAL 9005
- Brand:
- racknex
- Dimensions:
- 483 × 335 × 73 mm
Price starting from:
387,60 €
NVIDIA Jetson AGX Thor Developer Kit Rack Mount Kit for 19-inch Racks
The NVIDIA Jetson AGX Thor Rack Mount Kit “UM-NVI-303” allows you to mount two NVIDIA Jetson AGX Thor Developer Kit units with their associated power supplies on 1.66U of space in a 19 inch rack.
Six connectors per NVIDIA Jetson AGX Thor can be routed to the front of the rack mount kit using a cable and keystone combination. The connectors come standard with blind covers and can be configured to match your needs. The rack mount kit is designed to allow you to mount the NVIDIA Jetson AGX Thor units in either direction. Connectors facing the front or power button facing the front. The NVIDIA Jetson AGX Thor units are gently secured to the rack mount kit with a Velcro strap and are ready for immediate use after attaching the four rack mount screws (included in scope of supply).
The “Rail System” allows the kit to slide out like a drawer for quick and easy access. It. extends the rack mount kit by 300 mm, is mounted at four points inside the server cabinet, and is suitable for cabinet depths of 400mm to 900mm (measured from the front posts to the rear posts). In addition to the “Rail System”, you can configure a “Cable Management Arm”, which ensures that your cables are safely organized and helps prevent tangles and obstructions in your 19-inch rack.
For neat cable management, the rack mount kit features holes directly behind the connectors. The included cable ties make it easy to secure cables to the rack mount kit. To help with air circulation, there are also cutouts at the points where the NVIDIA Jetson AGX Thor units attach to the rack mount kit.
Optionally, you can cover a free slot temporarily or permanently with our “Slot Cover” or add a second “Extension Plate”. Please note that two Extension Plates are not compatible with the “Cable Management Arm”.
The NVIDIA Jetson AGX Thor Developer Kits are not included in the scope of supply.
