Raspberry Pi
Features of our Raspberry Pi Rack Mounts
Assembly of my Raspberry Pi Rackmount Kit
The Raspberry Pi is attached to the rackmount kit using M2.5 screws (included in the scope of supply). The rackmount kit comes fully assembled and ready for use.
Air System
Cutouts for air circulation are provided at the points where the Raspberry Pi and its power supply unit are mounted and bring sufficient cooling in your system.
Rail System
With the rail system you can easily extend the Raspberry Pi by 200 mm or 300 mm. The fully extendable telescopic rails allows for easy access and makes commissioning and maintenance work on the device much easier.
Fan Management
Keep your Raspberry Pi cool – Raspberry Pi Rack Mount Kits provide mounting brackets for fans. This allows the Raspberry Pi to be additionally ventilated. Each fan attaches to the rackmount kit with two screws directly behind the Raspberry Pi.
Socket Management
Using a high-quality Keystone inline coupler and cable combination, we bring the Raspberry Pi connectors from the back to the front of the rack mounting kit. The keystones are installed flush and make further cabling in the rack much easier. Each socket is labeled on the front foil.
Scope of supply
All Raspberry Pi rack mount kits have the following as standard included in the scope of supply.
- – Rack Mount Screw Set
- – M2.5 screws (fasten Rasperry Pi’s)
- – Cable Tie 100mm
- – Cable Tie 300mm
- – Product Data Sheet
- – Assembly Instructions
Raspberry Pi Rackmount Kit accessories
In order to tailor your Raspberry Pi rackmount kit set to your individual needs, a configurator with a large selection and many combination options is available on each product page.
Our Raspberry Pi Rack Mount Kits
What is the right Raspberry Pi Rack Mount Kit for me?
We currently offer Intel Rackmount Kits, all supporting:
- – Raspberry Pi 2B
- – Raspberry Pi 3B
- – Raspberry Pi 3B+
- – Raspberry Pi 4B
- – Raspberry Pi 5
1.00U Raspberry Pi Rack Mount for 19″ racks
The following Raspberry Pi Rack Mount Kits have been specially designed and developed to be installed in a 19″ rack on 1.00U. We recommend opting for a 1.00U Raspberry Pi Rack Mount Kit if you want to build as space-efficiently as possible. The 1.00U Raspberry Pi Rack Mount Kits for 19″ racks support up to 4 Raspberry Pi’s.
UM-SBC-204
UM-SBC-204 is the right choice for you if you want to mount up to 4 Raspberry Pi’s on 1.00U in a 19″ rack and don’t need any additional features. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.
UM-SBC-209
UM-SBC-209 fits up to 4 Raspberry Pi’s on 1.00U. For each Pi, you can configure a Keystone connector from a variety of possible connectors. Holes for 3mm LEDs are also in the front. We recommend this rack mount if you need connectors like the HDMI on front of the rack mount kit or want to display the status of your Pi’s via LEDs. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.
1.00U Raspberry Pi Rack Mount Kits for 10″ racks
The following Raspberry Pi Rack Mount Kits have been specially designed and developed to be installed in a 10″ rack on 1.00U. We recommend opting for a 1.00U Raspberry Pi Rack Mount Kit if you want to build as space-efficiently as possible. The 1.00U Raspberry Pi Rack Mount Kits for 10″ racks support up to two Raspberry Pi’s. If you want to mount more than two Raspberry Pi’s in your 10″ rack, a Raspberry Pi Cluster Rack Mount for 10″ racks might be the better choice for you.
UM-SBC-305
UM-SBC-305 is the right choice for you if you want to mount up to 2 Raspberry Pi’s on 1.00U in a 10″ rack and don’t need any additional features Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.
UM-SBC-306
UM-SBC-306 fits up to 2 Raspberry Pi’s on 1.00U. For each Pi you can configure a keystone connector out of 13 possible connectors. Holes for 3mm LEDs are also in the front. We recommend this rack mount if you need connectors like the HDMI on front of the rack mount kit or want to display the status of your Pi’s via LEDsOptionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.
1.33U Raspberry Pi Rack Mount with more space for possible structers for 19″ racks
The aim of this Raspberry Pi Rack Mount Kits is to give more space from the circuit board to the top of the rack mount kit for possible structures like POE-HAT, UPS or big cooling systems. Therefore we went for 1.33U instead of the common 1.00U.
UM-SBC-202
UM-SBC-202 is the right choice for you if you want to mount up to 4 Raspberry Pi’s on 1.33U in a 19″ rack and don’t need any additional features Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.

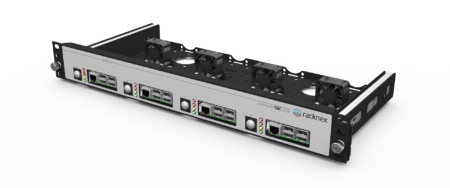

UM-SBC-203
UM-SBC-203 fits up to 4 Raspberry Pi’s on 1.33U. For each Pi, you can configure a Keystone connector from a variety of possible connectors. Holes for 3mm LEDs are also in the front. We recommend this rack mount if you need connectors like the HDMI on front of the rack mount kit or want to display the status of your Pi’s via LEDs. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.
UM-SBC-213
UM-SBC-213 is the right choice for you if you want to mount up to 4 Raspberry Pi’s with PCIe extension boards on 1.33U in a 19″ rack and don’t need any additional features. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”. With space for a PCIe expansion card for Raspberry Pi. Mount it under your Pi for a compact and fast storage solution.
UM-SBC-215
UM-SBC-215 is the right choice for you if you want to mount up to 4 Raspberry Pi’s with PCIe extension boards on 1.33U in a 19″ rack and don’t need any additional features. Optionally, you can configure a “Rail System”, to extend the rack mounting kit by 300 mm, is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 800mm (these are the minimum and maximum depth from the front posts to the rear ones), or cover a free slot temporarily / permanently with our “Slot Cover”. With space for a PCIe expansion card for Raspberry Pi. Mount it under your Pi for a compact and fast storage solution.
2.00U Raspberry Pi Rack Mount with maximum space for possible structers for 19″ racks
The aim of this Raspberry Pi Rack Mount Kits is to give more space from the circuit board to the top of the rack mount kit for possible structures like POE-HAT, UPS or big cooling systems. Therefore we went for 2.00U instead of the common 1.00U or 1.33U.
UM-SBC-212
UM-SBC-212 fits up to 4 Raspberry Pi’s with 16 ports on 2.00U in the 19“ rack. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Raspberry Pi product model. Holes for mounting up to 8 SSD´s are provided at the end of the rack mount kit. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.
With space for a PCIe expansion card for Raspberry Pi. Mount it under your Pi for a compact and fast storage solution.
2.00U Raspberry Pi Cluster Rack Mount for 19″ racks
The following rack mount kits have been designed and developed specifically for setting up a Raspberry Pi cluster in a 19″ rack. Rather than screwing the Pi directly onto the rack mount kit, the Pi mounts on an insert that screws vertically into the front of the rack mount kit. You can choose between different inserts for each Pi slot. The inserts offer a lot of flexibility in building your cluster base. We recommend going for a Raspberry Pi cluster if you want to mount many Pi’s in a 19″ rack.
UM-SBC-207
UM-SBC-207 fits up to 12 Raspberry Pi’s on 2.00U in the 19“ rack. Holes for mounting up to 8 SSD´s are provided at the end of the rack mount kit. There are many different inserts to choose from for each Pi slot. The individually configurable inserts offer a lot of flexibility when building your cluster base. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm.
UM-SBC-214
UM-SBC-214 fits up to 12 Raspberry Pi’s on 2.00U in the 19“ rack. Holes for mounting up to 8 SSD´s are provided at the end of the rack mount kit. There are many different inserts to choose from for each Pi slot. The individually configurable inserts offer a lot of flexibility when building your cluster base. Optionally, you can configure a “Rail System”, to extend the rack mounting kit by 300 mm, is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 800mm (these are the minimum and maximum depth from the front posts to the rear ones).
2.00U Raspberry Pi Cluster Rack Mount for 10″ racks
The following rack mount kits have been designed and developed specifically for setting up a Raspberry Pi cluster in a 10″ rack. Rather than screwing the Pi directly onto the rack mount kit, the Pi mounts on an insert that screws vertically into the front of the rack mount kit. You can choose between different inserts for each Pi slot. The inserts offer a lot of flexibility in building your cluster base. We recommend going for a Raspberry Pi cluster if you want to mount many Pi’s in a 10″ rack.
UM-SBC-308
UM-SBC-308 fits up to 5 Raspberry Pi’s on 2.00U in the 10“ rack. It is our 10“ rack mount that can store the most Pi’s. Holes for mounting up to 4 SSDs are provided at the end of the rack mount kit. There are many different inserts to choose from for each Pi slot. The individually configurable inserts offer a lot of flexibility when building your cluster base. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm.
3.00U Raspberry Pi Cluster Rack Mount for 19″ racks
The following rack mount kits have been designed and developed specifically for setting up a Raspberry Pi cluster in a 19″ rack. Rather than screwing the Pi directly onto the rack mount kit, the Pi mounts on an insert that screws vertically into the front of the rack mount kit. You can choose between different inserts for each Pi slot. The inserts offer a lot of flexibility in building your cluster base. We recommend going for a Raspberry Pi cluster if you want to mount many Pi’s in a 19″ rack.
UM-SBC-211
UM-SBC-211 fits up to 12 Raspberry Pi’s with 24 ports on 3.00U in the 19“ rack. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Raspberry Pi product model. Holes for mounting up to 8 SSD´s are provided at the end of the rack mount kit. There are many different inserts to choose from for each Pi slot. The individually configurable inserts offer a lot of flexibility when building your cluster base. Optionally, you can configure a “Rail System” to extend the rack mount kit by 300 mm.
