Raspberry Pi Rackmount Kit | 4x Slot – 58x30mm | 19 inch | 1.33U | Rail System 300mm
>> Suitable for all Single Board Computers (SBC) with Raspberry Pi form factor and PCIe extension card
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
4x Pi with PCIe expansion card on 1.33U in the 19 inch server cabinet
With the “UM-SBC-215” you can neatly accommodate up to four Raspberry Pi´s or similar SBCs on 1.33U in the 19″ Rack.
Each Pi is screwed to the Rackmount Kit four times with M2.5 screws (included in the scope of supply).
With space for a PCIe expansion card for Raspberry Pi. Mount it under your Pi for a compact and fast storage solution. It’s the perfect solution for turning your Raspberry Pi into a file server, media centre, reverse proxy, …
After mounting the Pi´s on the Rack, you have approx. 50 mm from the bottom of the PCIe expansion card to top of the Raspberry Pi Rack for possible structures (PoE-HAT, USV, etc.).
Single board computers are not included.
Details
Configuration options of the “UM-SBC-215”
Like every Raspberry Pi Rackmount Kit from us, you can configure the “UM-SBC-215” according to your specific needs.
Rail System
This allows your devices to be conveniently operated by pulling out the rackmount kit. A telescopic rail on each side of the Raspberry Rack allows for easy access. The rail extension is 300 mm.
The Rail System is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 800mm (these are the minimum and maximum depth from the front posts to the rear ones).
We recommend it if you want to always have access to your memory card without dismantling the rackmount kit.

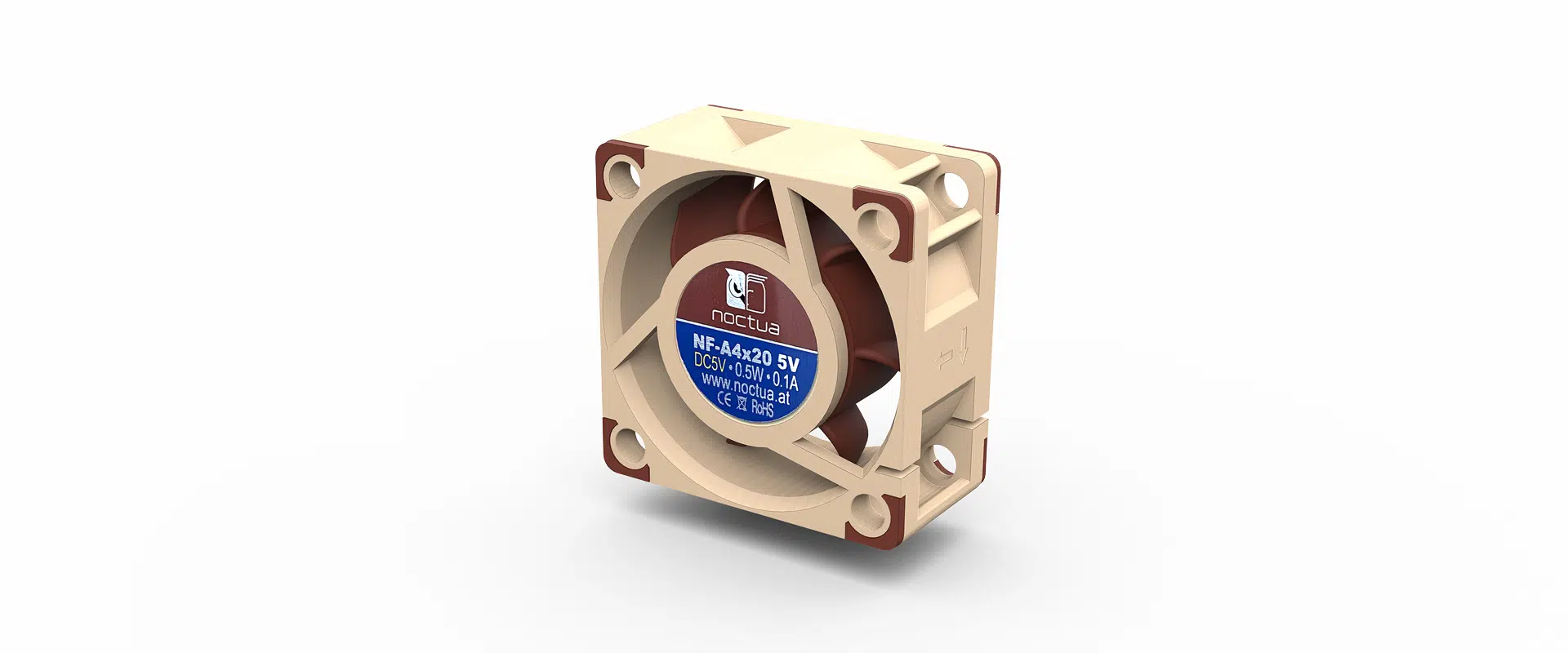

Fan 40×40
The “UM-SBC-215” offers a mounting option for up to 4 fans (40 x 40 mm with a hole spacing of 32 x 32 mm). This allows the devices to be additionally ventilated. Each fan attaches to the rackmount kit with two screws behind the Pi.

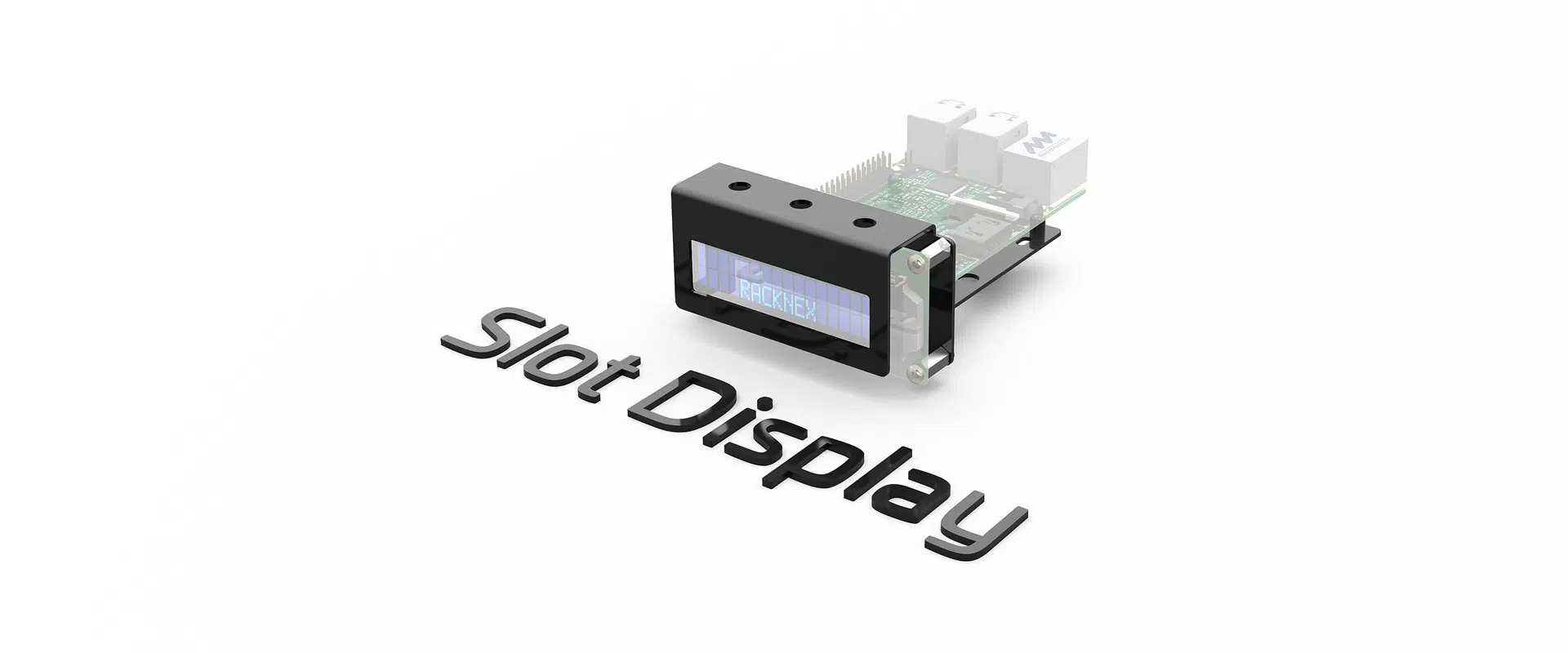

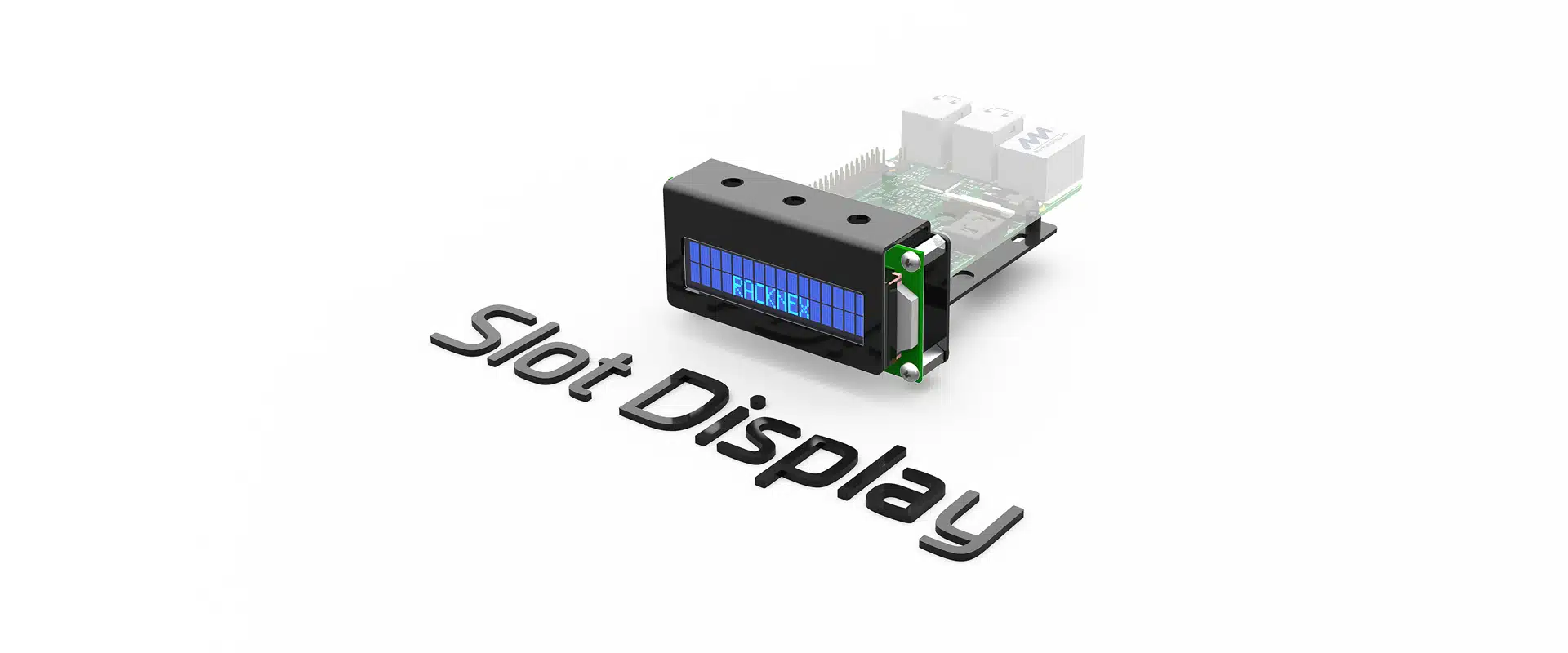

Slot Display
The slot display is a bracket that allows a display to be installed in the rack kit. It occupies one Pi slot and mounts in the same rackmount kit holes as the Pi. Can be used to display important information about your running system.
Slot Cover
This allows free slots in the rackmount kit to be covered. It mounts to the same rackmount kit holes as the Pi. Perfect if you want to temporarily cover one or more slots and upgrade your system at a later date.
Rack Panel
This allows the free space of the rack mount kit to be closed up to the next full rack unit.
UM-SBC-215
Delivery time: 1-2 weeks % SALE %
Supported Models:
Raspberry Pi 2B
Raspberry Pi 3B
Raspberry Pi 3B+
Raspberry Pi 4B
Raspberry Pi 5
SBC with Raspberry Pi form factor | Details
Rack: 19 inch
Rack Unit: 1.33U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 58.2 x 310 mm
*) Dimensions = width/height/depth
Price starting from:
Original price was: 284,40 €.142,20 €Current price is: 142,20 €.
4x Pi with PCIe expansion card on 1.33U in the 19 inch server cabinet
With the “UM-SBC-215” you can neatly accommodate up to four Raspberry Pi´s or similar SBCs on 1.33U in the 19″ Rack.
Each Pi is screwed to the Rackmount Kit four times with M2.5 screws (included in the scope of supply).
With space for a PCIe expansion card for Raspberry Pi. Mount it under your Pi for a compact and fast storage solution. It’s the perfect solution for turning your Raspberry Pi into a file server, media centre, reverse proxy, …
After mounting the Pi´s on the Rack, you have approx. 50 mm from the bottom of the PCIe expansion card to top of the Raspberry Pi Rack for possible structures (PoE-HAT, USV, etc.).
Single board computers are not included.
Details
Configuration options of the “UM-SBC-215”
Like every Raspberry Pi Rackmount Kit from us, you can configure the “UM-SBC-215” according to your specific needs.
Rail System
This allows your devices to be conveniently operated by pulling out the rackmount kit. A telescopic rail on each side of the Raspberry Rack allows for easy access. The rail extension is 300 mm.
The Rail System is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 800mm (these are the minimum and maximum depth from the front posts to the rear ones).
We recommend it if you want to always have access to your memory card without dismantling the rackmount kit.
Fan 40×40
The “UM-SBC-215” offers a mounting option for up to 4 fans (40 x 40 mm with a hole spacing of 32 x 32 mm). This allows the devices to be additionally ventilated. Each fan attaches to the rackmount kit with two screws behind the Pi.
Slot Display
The slot display is a bracket that allows a display to be installed in the rack kit. It occupies one Pi slot and mounts in the same rackmount kit holes as the Pi. Can be used to display important information about your running system.
Slot Cover
This allows free slots in the rackmount kit to be covered. It mounts to the same rackmount kit holes as the Pi. Perfect if you want to temporarily cover one or more slots and upgrade your system at a later date.
Rack Panel
This allows the free space of the rack mount kit to be closed up to the next full rack unit.
Configurator
Configure the Rack Mount Kit according to your requirements here.
Available build space for Raspberry Pi add-on boards
If you are considering adding additional cards such as PoE HAT or PCIe expansion cards to the rack, see below for available space.
1.33U | Slot – 58x30mm
Suitable for Raspberry Pi with PCIe extension card and Poe-HAT.
Single Board Computer with identical form factor for Raspberry Pi
As mentioned above, you can mount single board computers with the same form factor as the Pi 5 in the Raspberry Pi Rackmount Kit.
Pay attention to the basic dimensions of the Pi and the drilling pattern/diameter.
If they match, your single-board computers are compatible with our rack and can therefore be used without any problems.
Single board computers tested by us for compatibility are: ASUS Tinker Board | ODROID-C1+
