HP Elite Desk Pro Mini PC Rackmount Kit | 2x Slot | 19 inch | 1.00U | Rail System 300mm
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).

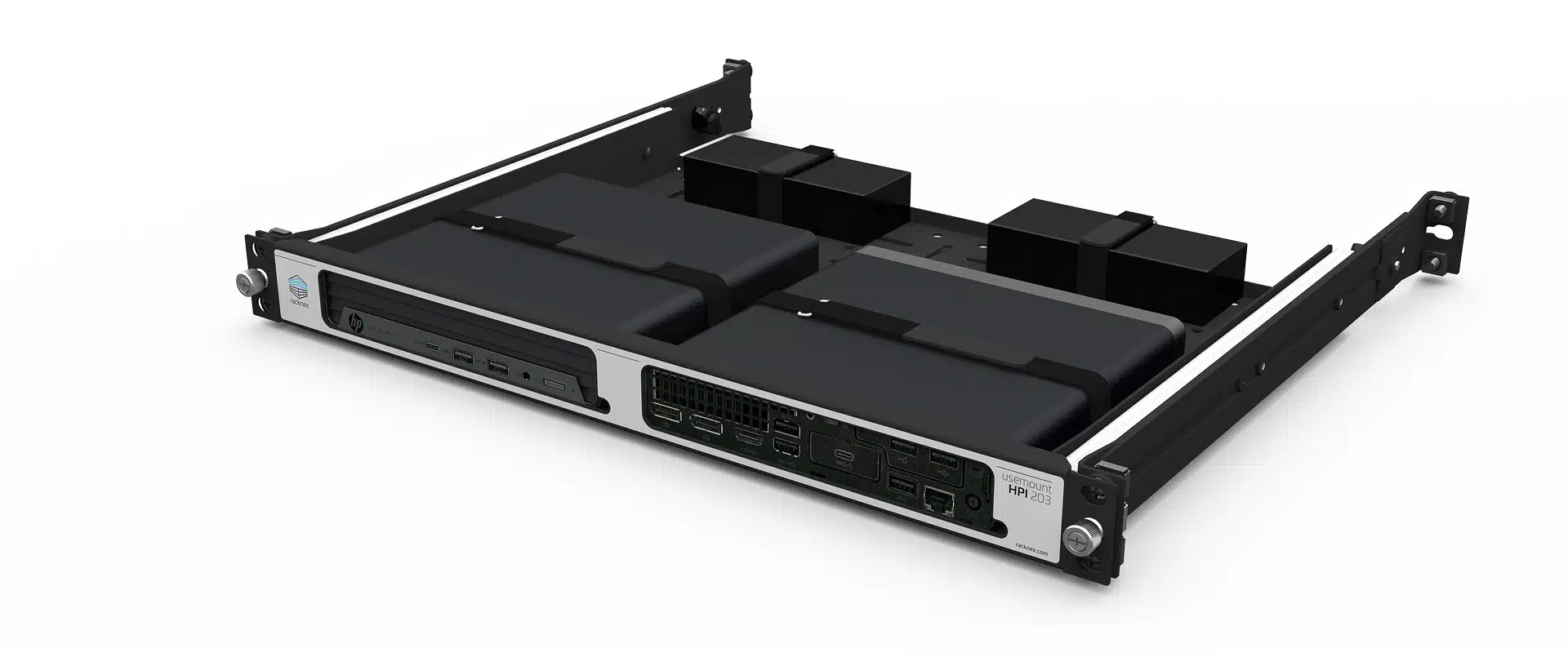

Mount two HP Mini PCs with a Rack Mount Kit neatly in the 19 inch rack
With the HP Rack Mount Kit „UM-HPI-203“ you can mount up to two HP Mini PCs with assosiated power supply on 1U in the 19 inch rack.
EliteDesk 800 G6, Elite Mini 800 G9, Elite Mini 600 G9, ProDesk 600 G6, ProDesk 400 G6, Pro Mini 400 G9 and Pro Mini 260 G9 are fully supported. The Mini-PCs are gently attached to the rack mount kit with Velcro straps and are ready for immediate use after attaching the eight rack mount screws (included in scope of supply).
The rack mount kit is designed to allow you to mount your Mini PCs in either direction. Connectors facing the front or power button facing the front.
The “Rail System” extends the rack mounting kit by 300 mm, is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 800mm (these are the minimum and maximum depth from the front posts to the rear ones).
Optionally, you can cover a free slot temporarily / permanently with our “Slot Cover”.
The HP Mini PCs are not in the scope of supply.
UM-HPI-203
Delivery time: 4-5 days In Stock
Supported Models:
HP Elite Mini 600 G9
HP Elite Mini 800 G9
HP EliteDesk 800 G6
HP Pro Mini 260 G9
HP Pro Mini 400 G9
HP ProDesk 400 G6
HP ProDesk 600 G6
Rack: 19 inch
Rack Unit: 1.00U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 43.4 x 310 mm
*) Dimensions = width/height/depth
Price starting from:
288,36 €
Mount two HP Mini PCs with a Rack Mount Kit neatly in the 19 inch rack
With the HP Rack Mount Kit „UM-HPI-203“ you can mount up to two HP Mini PCs with assosiated power supply on 1U in the 19 inch rack.
EliteDesk 800 G6, Elite Mini 800 G9, Elite Mini 600 G9, ProDesk 600 G6, ProDesk 400 G6, Pro Mini 400 G9 and Pro Mini 260 G9 are fully supported. The Mini-PCs are gently attached to the rack mount kit with Velcro straps and are ready for immediate use after attaching the eight rack mount screws (included in scope of supply).
The rack mount kit is designed to allow you to mount your Mini PCs in either direction. Connectors facing the front or power button facing the front.
The “Rail System” extends the rack mounting kit by 300 mm, is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 800mm (these are the minimum and maximum depth from the front posts to the rear ones).
Optionally, you can cover a free slot temporarily / permanently with our “Slot Cover”.
The HP Mini PCs are not in the scope of supply.
Configurator
Configure the Rack Mount Kit according to your requirements here.
