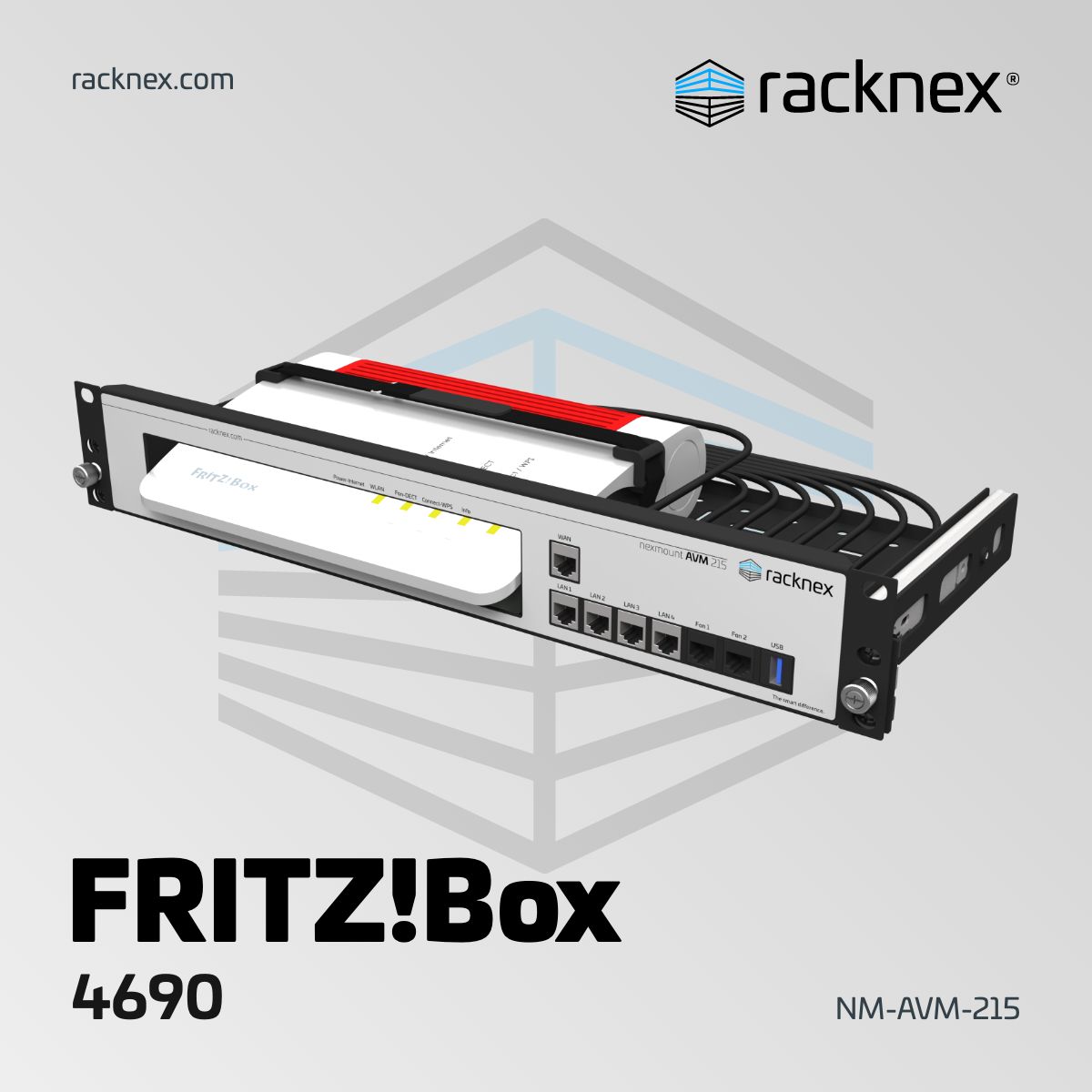

FRITZ!Box 4690 Rackmount Kit | NM-AVM-215

Secure Mounting with Full Access

The FRITZ!Box 4690 Rackmount Kit NM-AVM-215 holds your FRITZ!Box 4690 securely in place using custom-designed spacers and a strong Velcro strap. All five status LEDs—Power/Internet, WLAN, Fon/DECT, Connect/WPS, and Info—remain fully visible. The WLAN, Fon/DECT, and Connect/WPS buttons are also fully accessible, so you can control essential functions without removing the device from the rack.

Front-Facing Connectors & Clear Labeling

The rear connectors of the FRITZ!Box 4690 are routed to the front of the rack using cables that connect to high-quality keystone modules. These modules sit flush with the front panel of the FRITZ!Box 4690 Rackmount Kit, giving you easy access to all ports from the front. Our custom front foil mirrors the original FRITZ!Box labeling, so both ports and LEDs are clearly marked—just like on the device itself.

All connectors of the FRITZ!Box 4690 are supported:

• 5x network ports
• 2x phone ports
• 1x USB port

Optimized Ventilation & Cable Management

The FRITZ!Box 4690 Rackmount Kit NM-AVM-215 is designed with multiple ventilation holes directly beneath the FRITZ!Box to ensure proper airflow and prevent overheating. Additionally, numerous holes across the rackmount kit allow for flexible and tidy cable management, helping you maintain a clean and organized rack setup. Cable ties are included for convenient cable management.

Flexible Configuration Options

The FRITZ!Box 4690 Rackmount Kit NM-AVM-215 offers a variety of configuration options to tailor the setup to your needs:

Extendable Rail System

With the optional Rail System, the rackmount kit can extend up to 300mm like a drawer, providing easy access to the back of the FRITZ!Box without removing it from the rack. This saves time and adds convenience when accessing the back for maintenance or cable work.

Customizable Connectors & Cables

The standard kit includes 5x network connectors and no cables. The USB and phone connectors come pre-filled with blind connectors by default. If you require USB, phone, and/or shielded connectors or cables, these can be configured to suit your specific requirements.

Adjustable Rack Mounting Screws

Choose between square rack hole mounting or #10-32 UNF threaded hole mounting screws to match your server rack specifications.
