ASUS / Intel NUC Slim Rackmount Kit | 2x Slot | 19 inch | 1.00U | Rail System 200mm

Mount two ASUS / Intel NUCs on 1.00U in the 19 inch rack

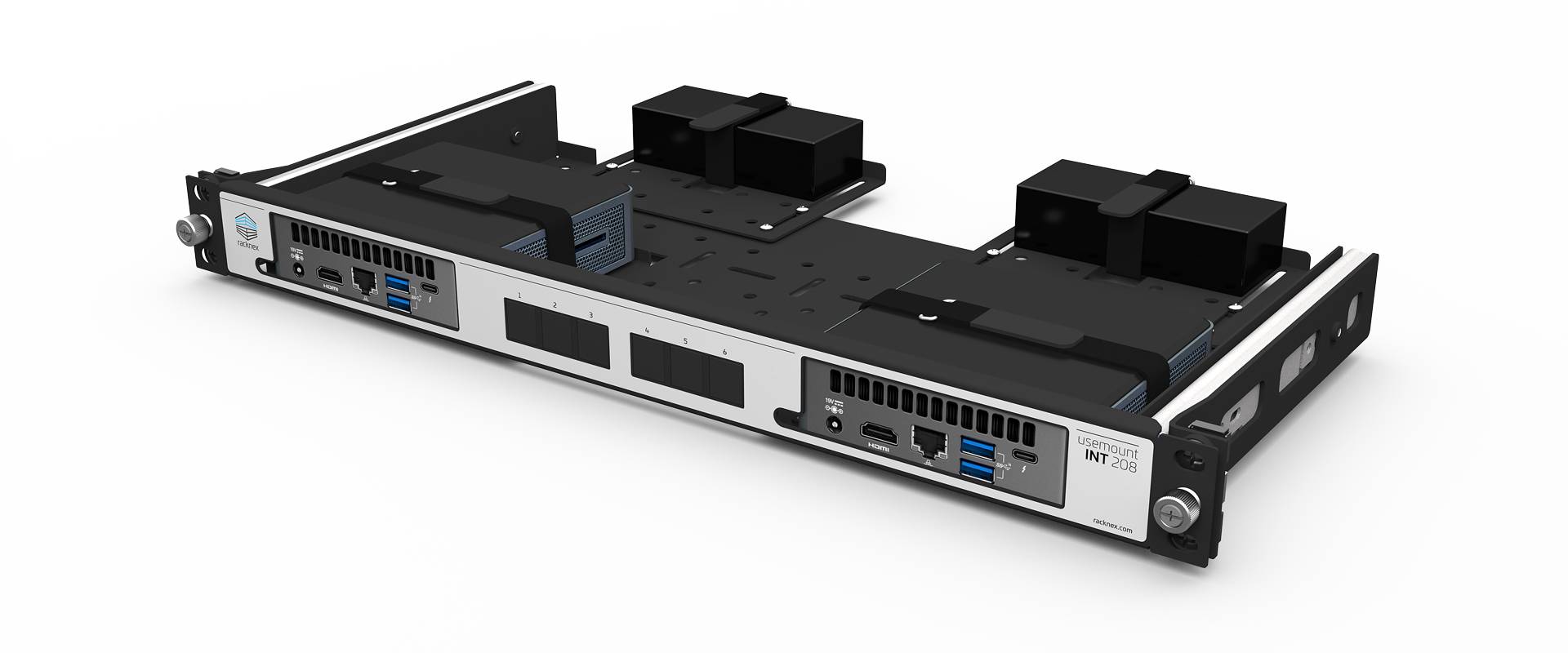

The ASUS / Intel NUC Rack Mount Kit “UM-INT-208” allows mounting two ASUS / Intel NUCs with form factor Slim on 1.00U in a 19 inch rack.

ASUS / Intel NUCs with form factor slim are those that have a height of 36 – 38 mm. The ASUS NUC 12 Pro Slim, ASUS NUC 13 Pro Slim, ASUS NUC 14 Pro Slim, Intel NUC 8 Pro Kit Slim, Intel NUC 10 Performance Kit Slim, Intel NUC 11 Performance Kit Slim, Intel NUC 11 Pro Kit Slim, Intel NUC 12 Pro Kit Slim and Intel NUC 13 Pro Kit Slim are fully supported.

The NUCs can be mounted in either direction. The power button faces forward or the NUC ports face forward. If the NUC ports point to the front, the power supply cable can be routed in the small recess at the front. The ASUS / Intel NUCs themselves are gently attached to the rack mount kit with Velcro straps.

Three connectors per NUC can be routed to the front of the rack mount kit via a cable and keystone combination. Connectors come standard with blind covers and can be configured to match your exact NUC product model.

For neat cable management, the rack mount kit features holes directly behind the connectors. The included cable ties make it easy to secure cables to the rack mount kit. To help with air circulation, there are also cutouts where the NUC attaches to the rack mount kit.

Optionally, you can extend the rack mount kit by 200 mm with our “Rail System” or cover a free slot temporarily or permanently with a “Slot Cover”.
The ASUS / Intel NUC are not included in the scope of delivery.
