Features of our Lenovo Rack Mounts
Assembly of my Lenovo Rackmount Kit
The Lenovo is attached to the rackmount kit using Velcro straps. So no screws are necessary and you don’t have to unscrew your device. The rackmount kit comes fully assembled and ready for use.
All rackmount kits are designed to support good air circulation. Using our self-developed spacers in combination with the Velcro straps, the Lenovo is mounted in such a way that the existing ventilation openings are not affected. This allows us to achieve a time-saving and device-friendly assembly solution.
Air System
Cutouts for air circulation are provided at the points where the Lenovo and its power supply unit are mounted and bring sufficient cooling in your system.
Rail System
With the rail system you can easily extend the Lenovo by 200 mm or 300 mm. The fully extendable telescopic rails allows for easy access and makes commissioning and maintenance work on the device much easier.
Strap System
The Lenovo is attached to our rackmount kits in a screwless, secure and non-slip manner using a special strap system, without screws or other aids affecting the device. To avoid damage to the housing, the straps are fixed with high-quality Velcro. This also prevents a possible loss of warranty.
Socket Management
Using a high-quality Keystone inline coupler and cable combination, we bring the Lenovo connectors from the back to the front of the rack mounting kit. The keystones are installed flush and make further cabling in the rack much easier. Each socket is labeled with a front foil.
Scope of supply
All Lenovo rack mount kits have the following as standard included in the scope of supply.
- – Rack Mount Screw Set
- – Cable Tie 100mm
- – Cable Tie 300mm
- – Velcro Strap
- – Product Data Sheet
- – Assembly Instructions
Lenovo Rackmount Kit accessories
In order to tailor your Lenovo rackmount kit set to your individual needs, a configurator with a large selection and many combination options is available on each product page.
Our Lenovo Rack Mount Kits
What is the right Lenovo Rack Mount Kit for me?
We currently offer Lenovo Rackmount Kits, all supporting:
- – Lenovo Tiny ThinkCentre Tiny Series
- – Lenovo Tiny ThinkStation Tiny Series
- – Lenovo ThinkCentre Neo Ultra USFF
- – Lenovo ThinkStation PGX SFF Workstation
1.00U Lenovo Rack Mount for 19″ racks
The following Lenovo rackmount kits are specifically designed and developed for installation in a 19″ rack on 1.00U.

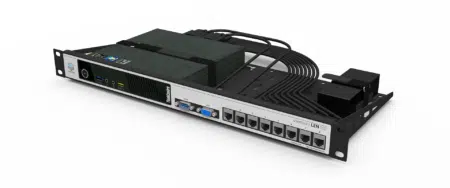

This Lenovo Rack Mount Kit is designed to mount one Lenovo ThinkCentre Tiny / ThinkStation Tiny Mini PC with power supply and 10 ports in 19 inch racks on 1.00U. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Lenovo product model
This Lenovo Rack Mount Kit is specially designed for mounting two Lenovo ThinkCentre Tiny / ThinkStation Tiny Mini PCs with power supplies on 1.00U with power supply in a 19-inch rack. The Lenovo Mini PCs can be mounted in either directions. Ports face forward or power switch faces front. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.
ThisLenovo Rack Mount Kit is designed to mount one Lenovo ThinkCentre Tiny / ThinkStation Tiny Mini PC with power supply and 10 ports in 19 inch racks on 1.00U. To cover every product type we have made all connections configurable. Select the connector configuration that matches your Lenovo product model. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200mm.
This Lenovo Rack Mount Kit is specially designed for mounting two Lenovo ThinkCentre Tiny / ThinkStation Tiny Mini PCs with power supplies on 1.00U in a 19-inch rack. The Lenovo Mini PCs can be mounted in either directions. Ports face forward or power switch faces front. Optionally, you can configure a “Rail System” to extend the rack mounting kit by 300 mm, is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 900mm (these are the minimum and maximum depth from the front posts to the rear ones), or cover a free slot temporarily / permanently with our our “Slot Cover”.
1.33U Lenovo Rack Mount for 19″ racks
The following Lenovo rackmount kits are specifically designed and developed for installation in a 19″ rack on 1.33U.
This Lenovo Rack Mount Kit is designed to mount two Lenovo ThinkStation PGX Small Form Factor Workstation units with their associated power supplies on 1.33U in a 19 inch rack. To cover every product type, we have made eight connections configurable. Choose the connector configuration that fits your Lenovo product model. Optionally, you can configure a “Rail System” to extend the rack mount kit by 200 mm, or cover a free slot temporarily / permanently with our “Slot Cover”.
2.66U Lenovo Rack Mount for 19″ racks
The following Lenovo rackmount kits are specifically designed and developed for installation in a 19″ rack on 2.66U.

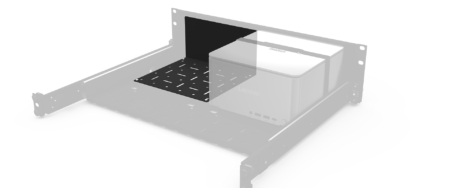

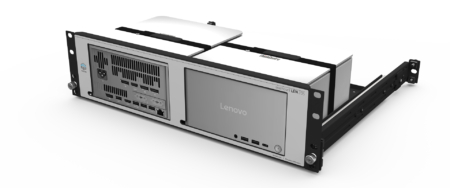

This Lenovo Rack Mount Kit is specially designed for mounting two Lenovo ThinkCentre Neo Ultra USFF Mini PCs with power supply on 2.66U in a 19-inch rack. The Lenovo Mini PCs can be mounted in either directions. Ports face forward or power switch faces front. Optionally, you can configure a “Rail System” to extend the rack mounting kit by 300 mm, is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 900mm (these are the minimum and maximum depth from the front posts to the rear ones), or cover a free slot temporarily / permanently with our our “Slot Cover”.
