Minisforum MS-S1 Max Rackmount Kit | 1x Slot | 19 inch | 2.00U | Rail System 300mm
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).

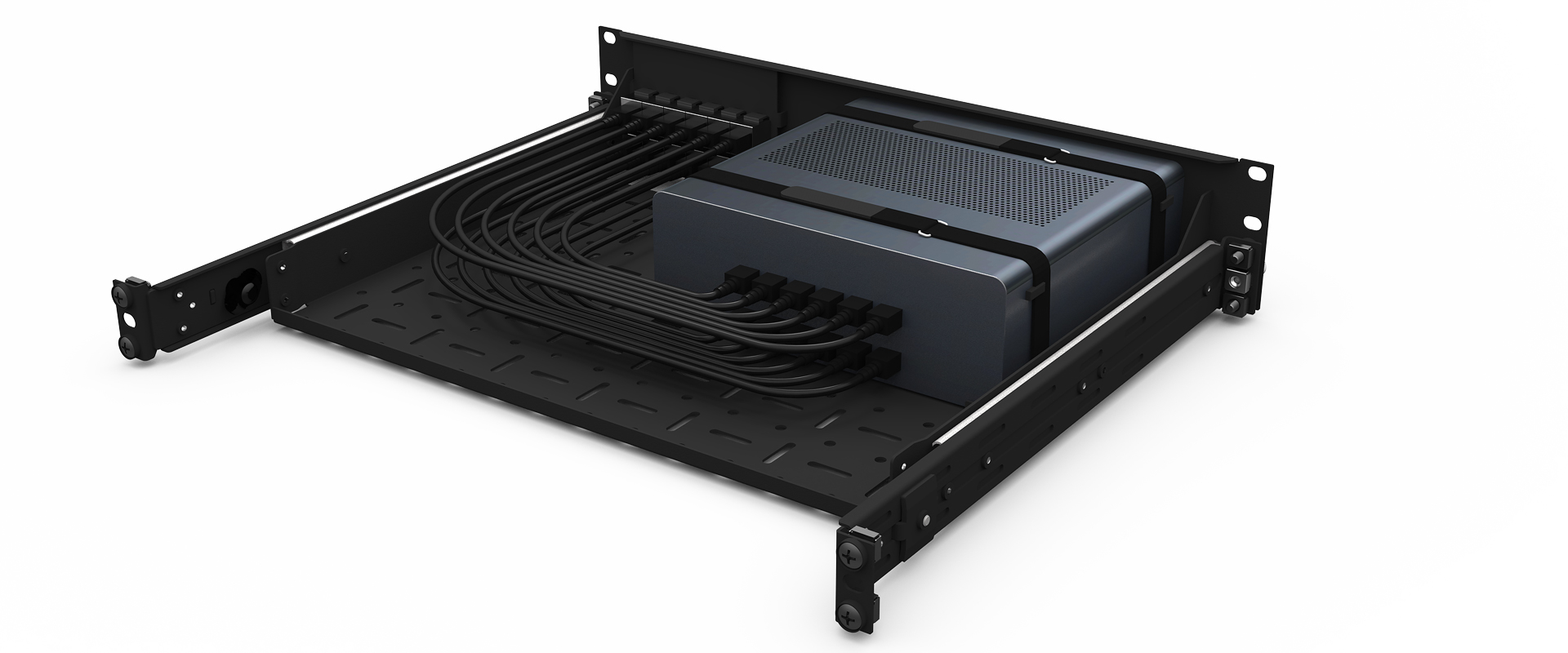

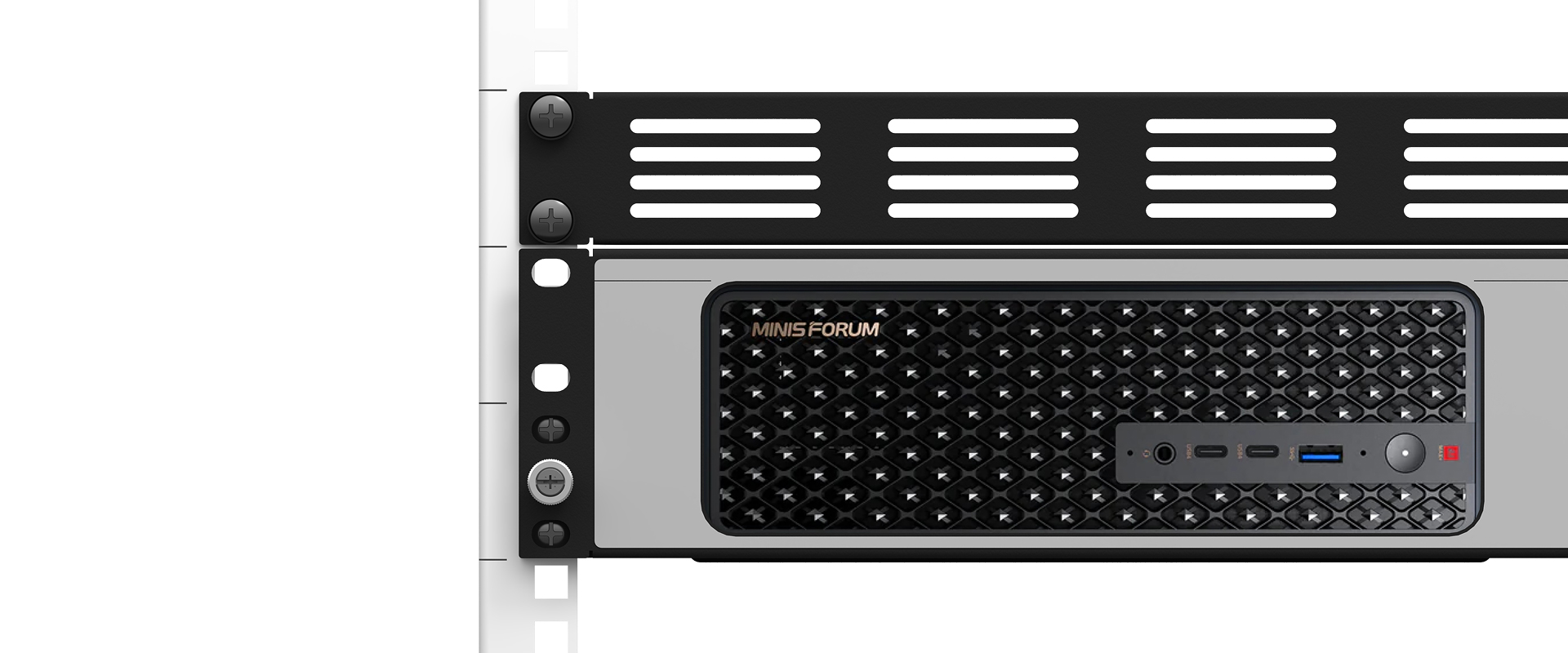

Mount the Minisforum MS-S1 Max neatly in the 19 inch rack
With the Minisforum Rackmount Kit„UM-MIN-206“ you can mount one Minisforum MS-S1 Max on only 2.00U in the 19 inch rack.
Connectors are routed to the front of the rackmount kit via a cable/keystone combination. The connectors come standard with blind covers and can be configured to match your exact product model. Cables are not included. Network connectors and cables can be shielded if desired.

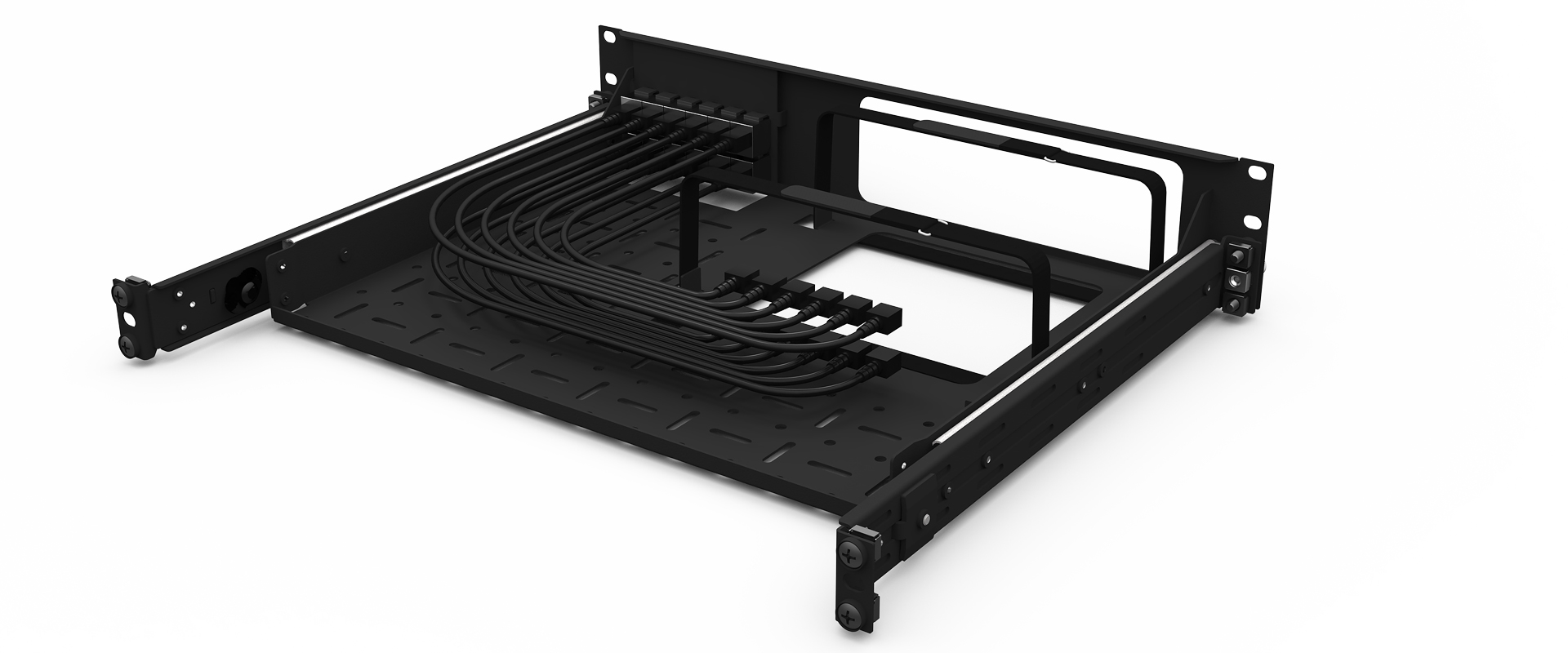

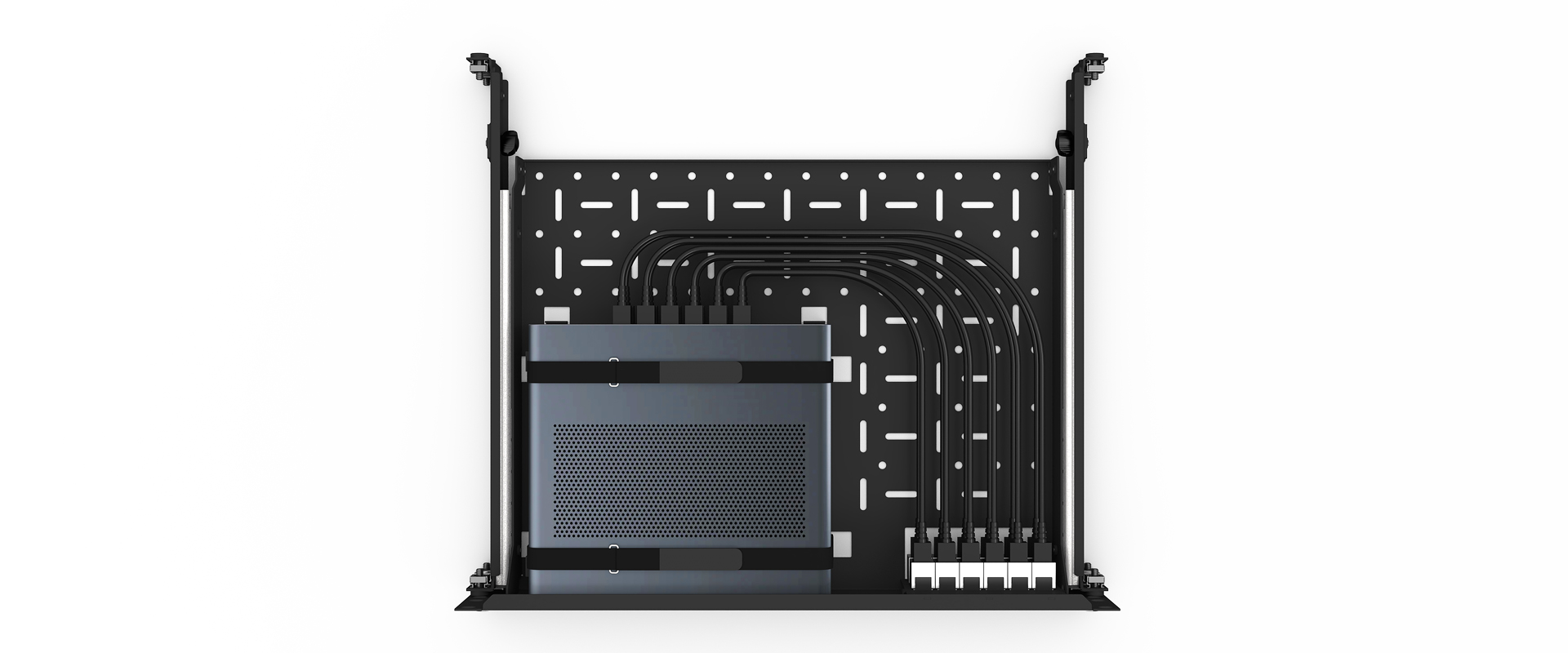

For neat cable management, the Minisforum MS-S1 Max Rackmount Kit has holes directly behind the connectors. With the included cable ties, the cables can be well secured to the rackmount kit. To help with air circulation, there are also cutouts where the Minisforum mount to the rackmount kit.
The MS-S1 Max is gently attached to the Minisforum Rackmount Kit with one Velcro strap and is ready for immediate use after attaching the rack mount screws (included in scope of supply).
The “Rail System” extends the rack mounting kit by 300 mm, is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 900mm (these are the minimum and maximum depth from the front posts to the rear ones).
The Minisforum MS-S1 Max is not in the scope of supply.
UM-MIN-206
Delivery time: 11-12 weeks
- Minisforum MS-S1 Max
- Rack:
- 19 inch
- Rack Unit:
- 2.00U
- Material:
- Steel
- Color:
- Black RAL 9005
- Brand:
- racknex
- Dimensions:
- 483 × 335 × 88 mm
Price starting from:
191,76 €
Mount the Minisforum MS-S1 Max neatly in the 19 inch rack
With the Minisforum Rackmount Kit„UM-MIN-206“ you can mount one Minisforum MS-S1 Max on only 2.00U in the 19 inch rack.
Connectors are routed to the front of the rackmount kit via a cable/keystone combination. The connectors come standard with blind covers and can be configured to match your exact product model. Cables are not included. Network connectors and cables can be shielded if desired.
For neat cable management, the Minisforum MS-S1 Max Rackmount Kit has holes directly behind the connectors. With the included cable ties, the cables can be well secured to the rackmount kit. To help with air circulation, there are also cutouts where the Minisforum mount to the rackmount kit.
The MS-S1 Max is gently attached to the Minisforum Rackmount Kit with one Velcro strap and is ready for immediate use after attaching the rack mount screws (included in scope of supply).
The “Rail System” extends the rack mounting kit by 300 mm, is attached 4 times in the server cabinet and is suitable for cabinet depths of 400mm to 900mm (these are the minimum and maximum depth from the front posts to the rear ones).
The Minisforum MS-S1 Max is not in the scope of supply.
