Fortinet FortiGate 80F / 80F-Bypass / 81F Rackmount Kit | 19 inch | 1.33U
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
19″ Rack Mount Kit for FortiGate 80F, 80F-Bypass, 81F – NM-FOR-009

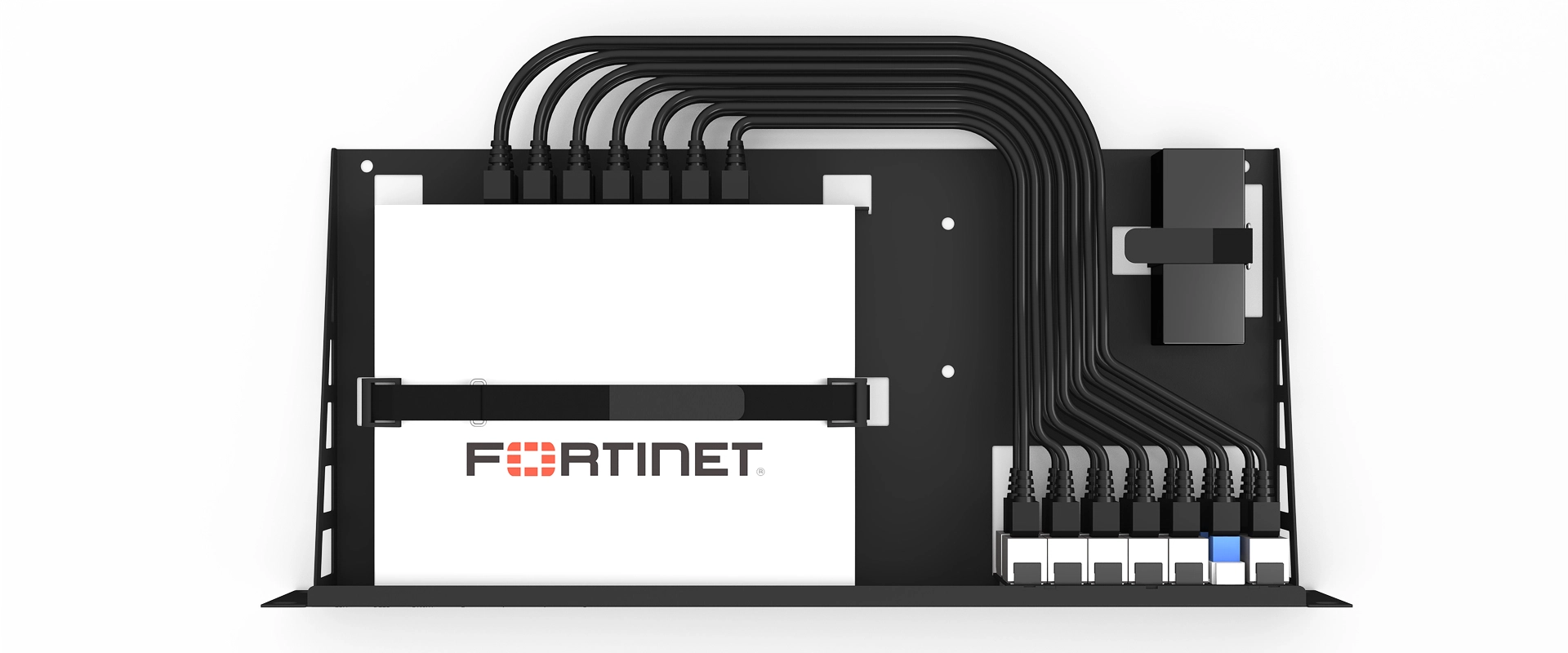

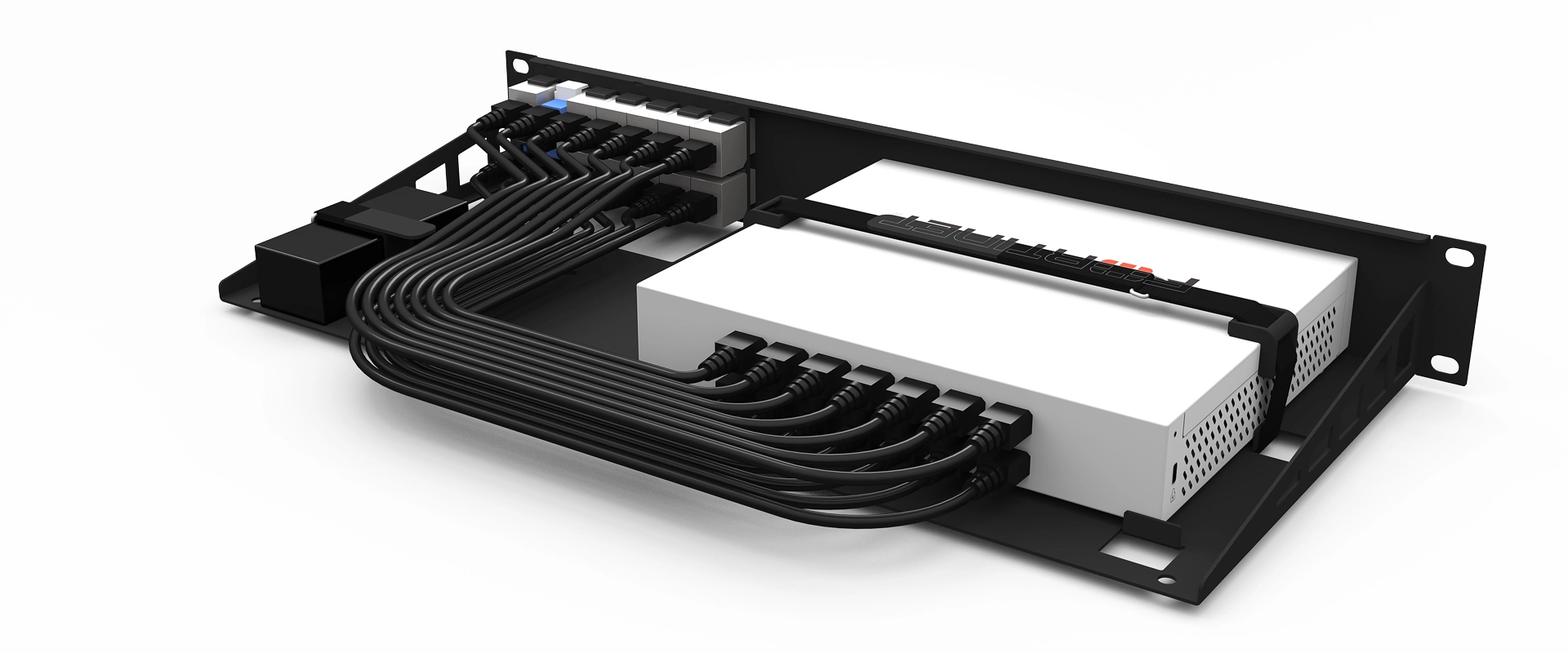

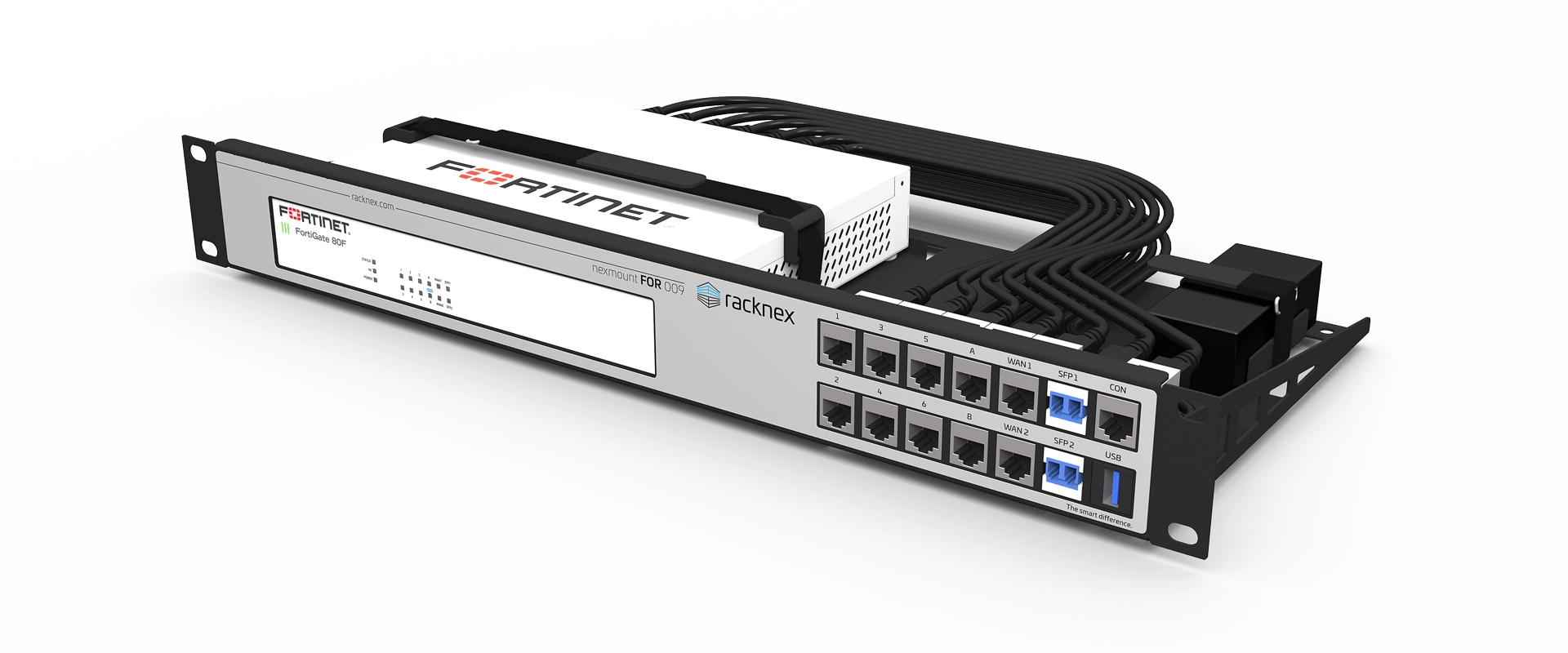

Rack Mount Kit “NM-FOR-009″ allows you to neatly mount your Fortinet Fortigate 80F, 80F-Bypass and 81F with the associated power supply unit in a 19” rack.

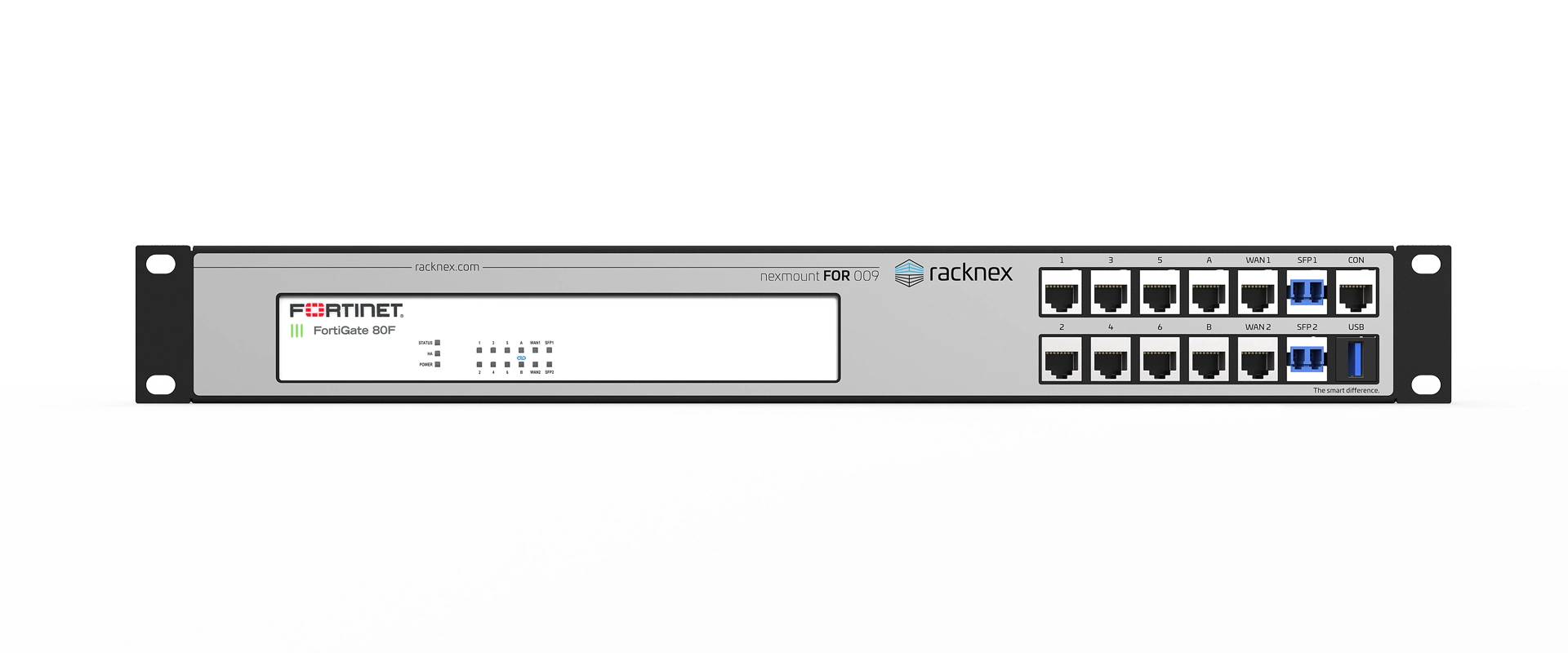

All connections are conveniently accessible on the front of the rack mount kit. This greatly simplifies further wiring in the rack.
You can configure the FortiGate Rack Mount Kit according to your needs.
Choose between unshielded or shielded connections and determine which cables you really need.
The FortiGate is mounted securely and non-slip on the rack mount kit using a special Strap System. Without using screws or other aids acting on the device.
The straps are fixed with high-quality Velcro. In combination with our spacer, a sufficient distance is created between the Velcro and the FortiGate to prevent damage to the housing.
This also prevents a possible loss of warranty.

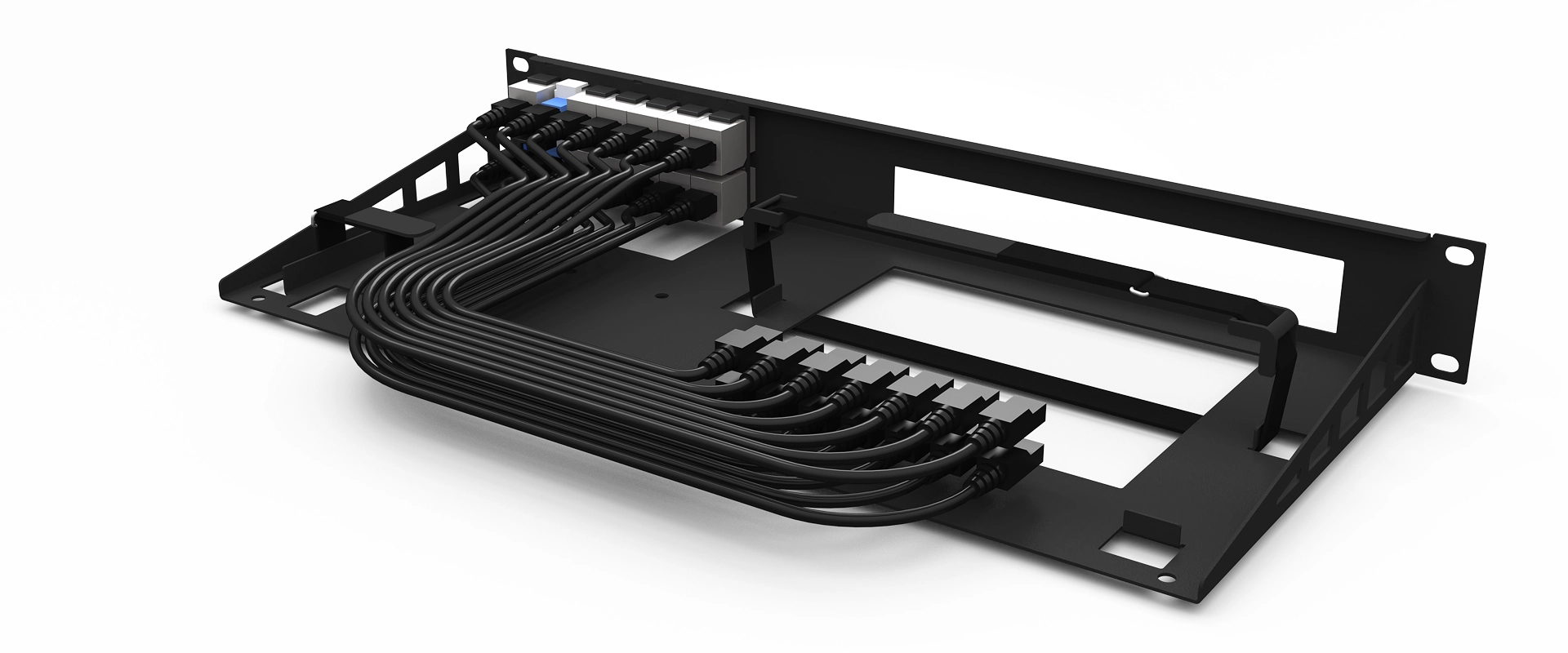

Cutouts on the bottom and side surfaces of the rack mount kit ensure sufficient cooling in the system.
Even after attachment to the rack mount kit, the outlets are not covered by our screwless Strap System.
A front foil labels each connector of the FortiGate and gives a unique look.

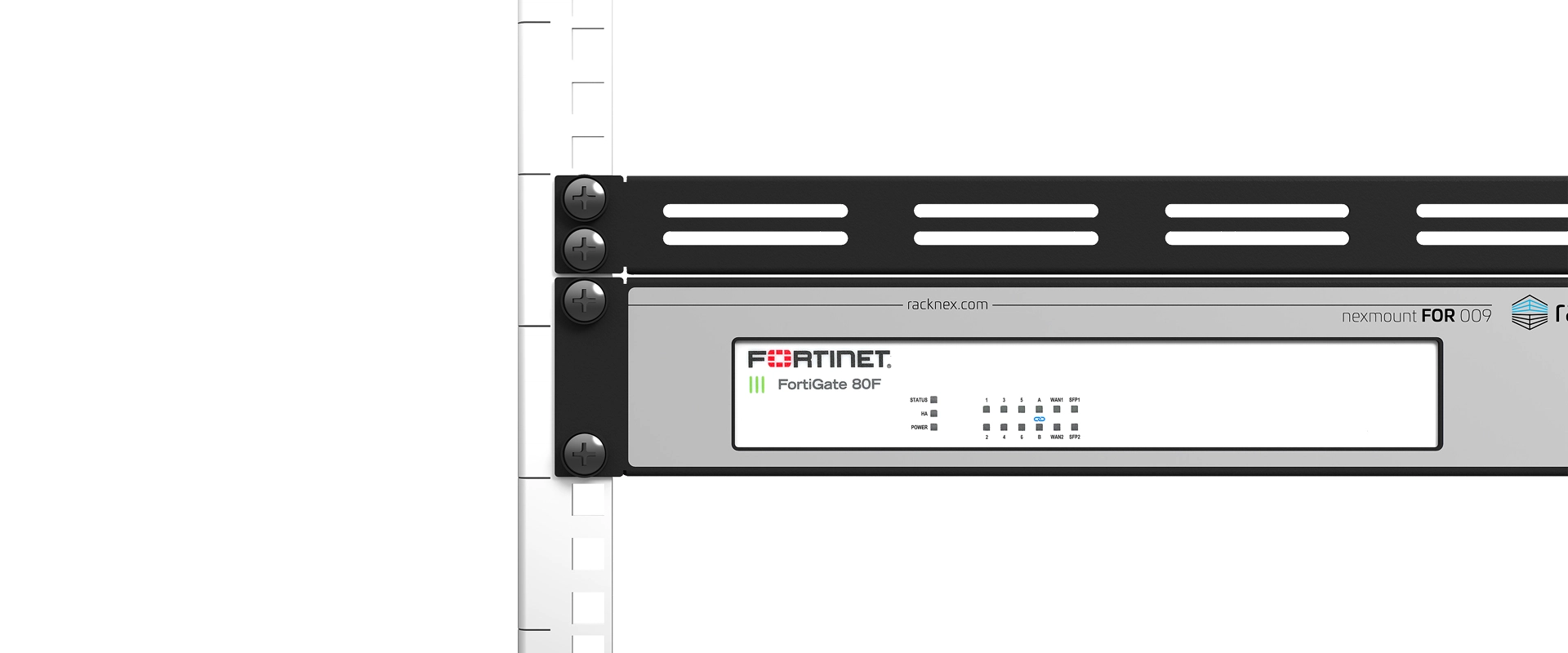

“NM-FOR-009” occupies 1.33U.
NM-FOR-009
Delivery time: 4-5 days In Stock
Supported Models:
Fortinet FortiGate 80F
Fortinet FortiGate 80F-Bypass
Fortinet FortiGate 81F
Rack: 19 inch
Rack Unit: 1.33U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 58.2 x 210 mm
*) Dimensions = width/height/depth
Price starting from:
160,68 €
19″ Rack Mount Kit for FortiGate 80F, 80F-Bypass, 81F – NM-FOR-009
Rack Mount Kit “NM-FOR-009″ allows you to neatly mount your Fortinet Fortigate 80F, 80F-Bypass and 81F with the associated power supply unit in a 19” rack.
All connections are conveniently accessible on the front of the rack mount kit. This greatly simplifies further wiring in the rack.
You can configure the FortiGate Rack Mount Kit according to your needs.
Choose between unshielded or shielded connections and determine which cables you really need.
The FortiGate is mounted securely and non-slip on the rack mount kit using a special Strap System. Without using screws or other aids acting on the device.
The straps are fixed with high-quality Velcro. In combination with our spacer, a sufficient distance is created between the Velcro and the FortiGate to prevent damage to the housing.
This also prevents a possible loss of warranty.
Cutouts on the bottom and side surfaces of the rack mount kit ensure sufficient cooling in the system.
Even after attachment to the rack mount kit, the outlets are not covered by our screwless Strap System.
A front foil labels each connector of the FortiGate and gives a unique look.
“NM-FOR-009” occupies 1.33U.
