Fortinet FortiGate 40F / 41F / 60E / 60F / 61E / 61F / 70F / 71F Rackmount Kit | 19 inch | 1.33U
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
19″ Rack Mount Kit for FortiGate 40F/41F, 60F/61F, 70F/71F – NM-FOR-002

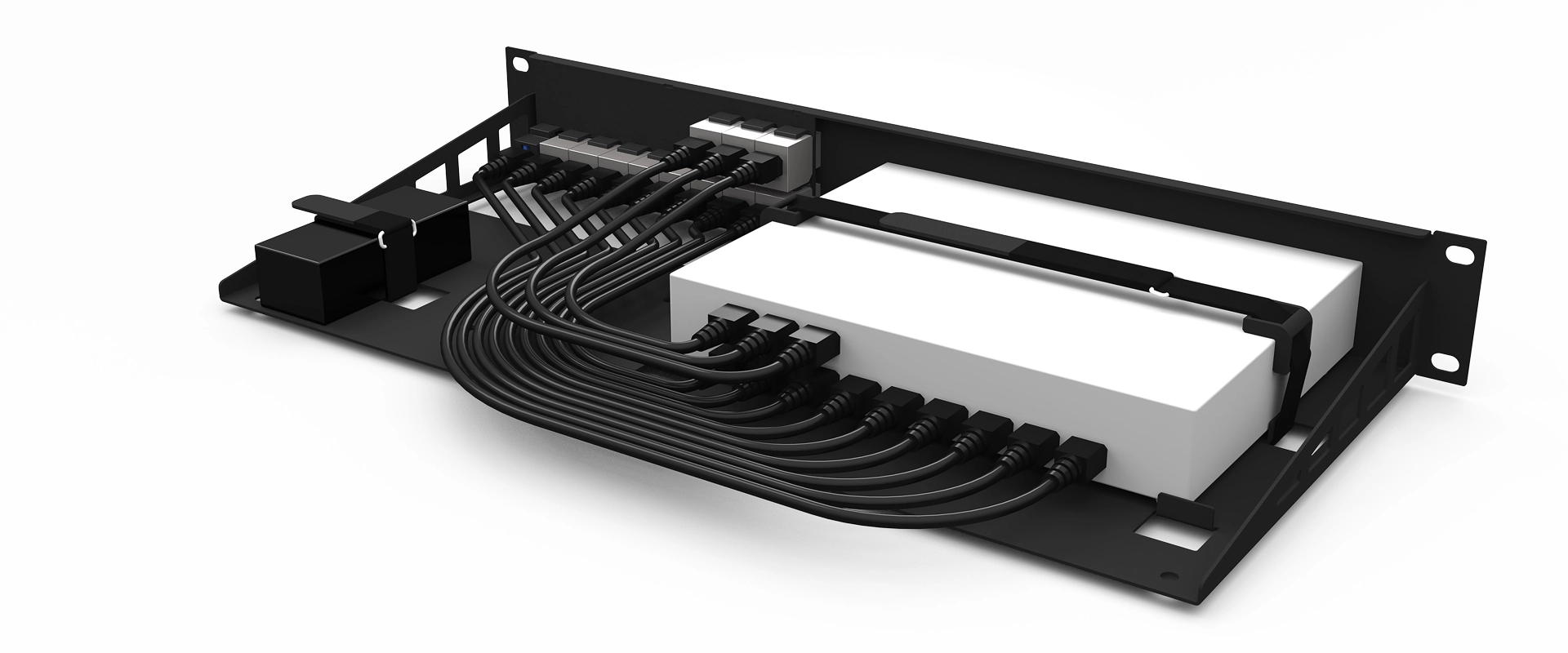

Rack Mount Kit “NM-FOR-002″ allows you to neatly mount your Fortinet Fortigate 40F, 41F, 60F, 61F, 70F and 71F with the associated power supply unit in a 19” rack.
The older FortiGate models 60E, 60E-DSL, 60E-PoE and 61E are also fully supported.

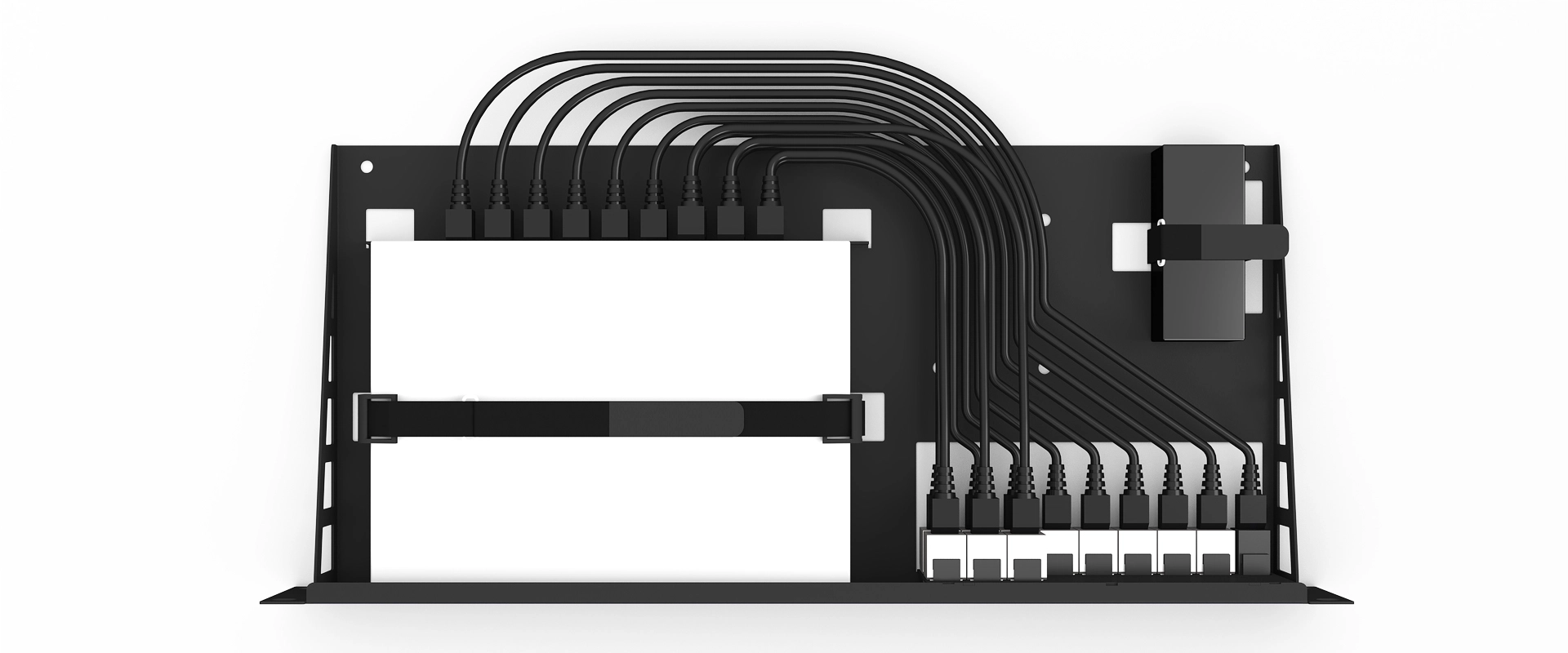

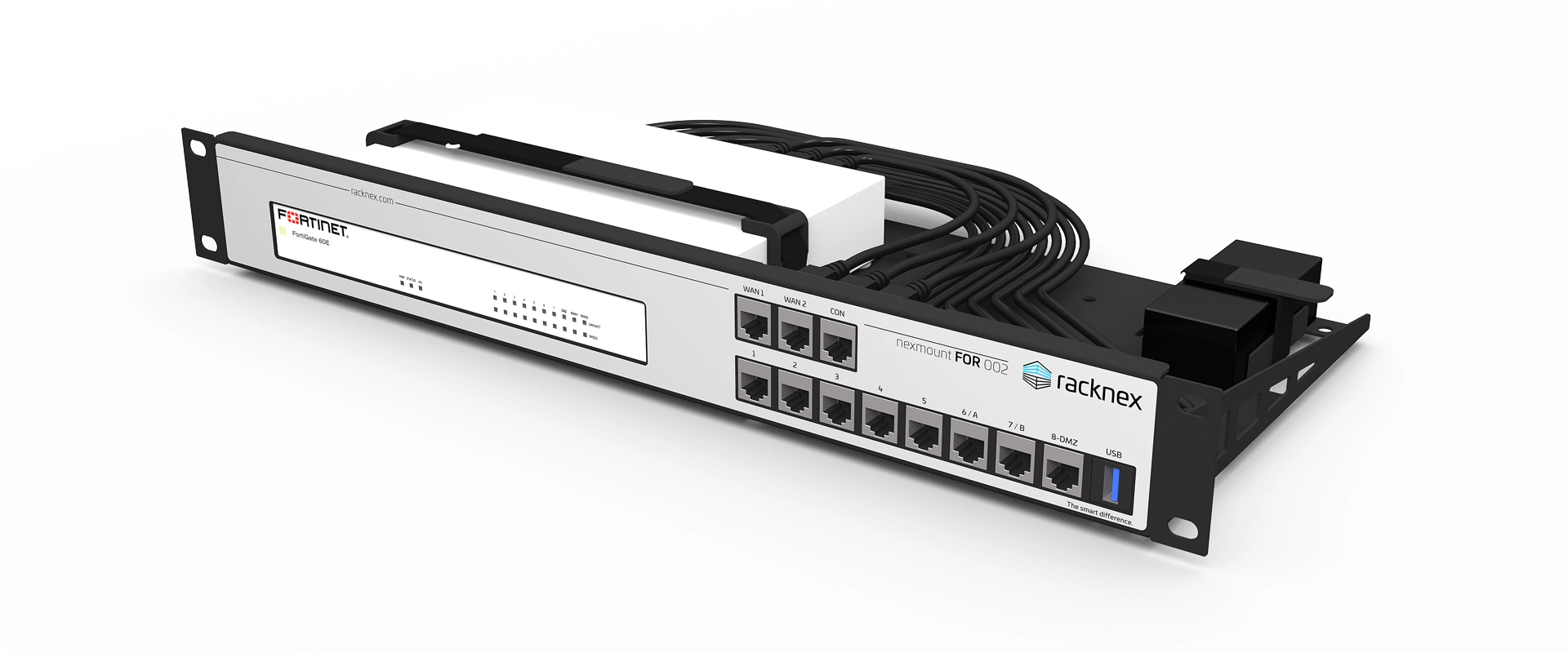

All connections are conveniently accessible on the front of the rack mount kit. This greatly simplifies further wiring in the rack.
You can configure the FortiGate Rack Mount Kit according to your needs.
Choose between unshielded or shielded connections and determine which cables you really need.

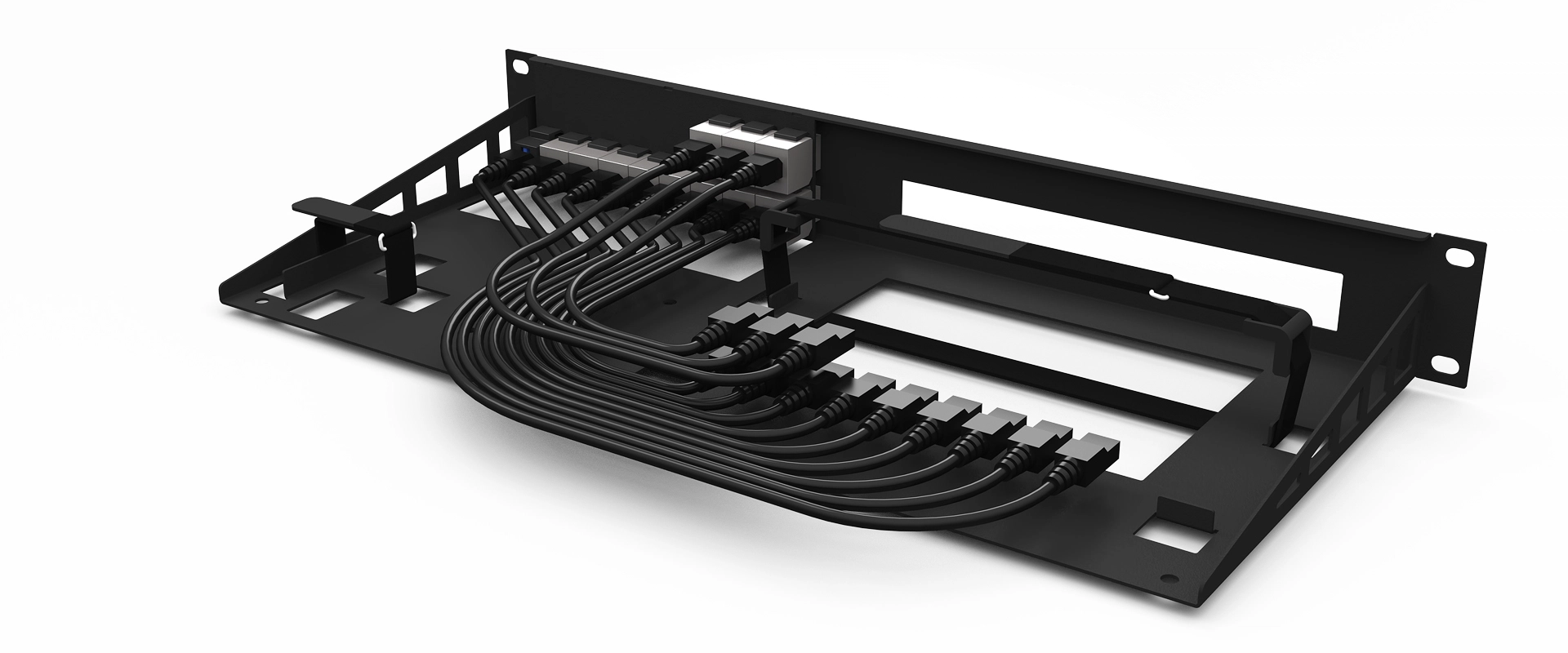

The FortiGate is mounted securely and non-slip on the rack mount kit using a special Strap System. Without using screws or other aids acting on the device.
The straps are fixed with high-quality Velcro. In combination with our spacer, a sufficient distance is created between the Velcro and the FortiGate to prevent damage to the housing.
This also prevents a possible loss of warranty.
Cutouts on the bottom and side surfaces of the rack mount kit ensure sufficient cooling in the system.
Even after attachment to the rack mount kit, the outlets are not covered by our screwless Strap System.

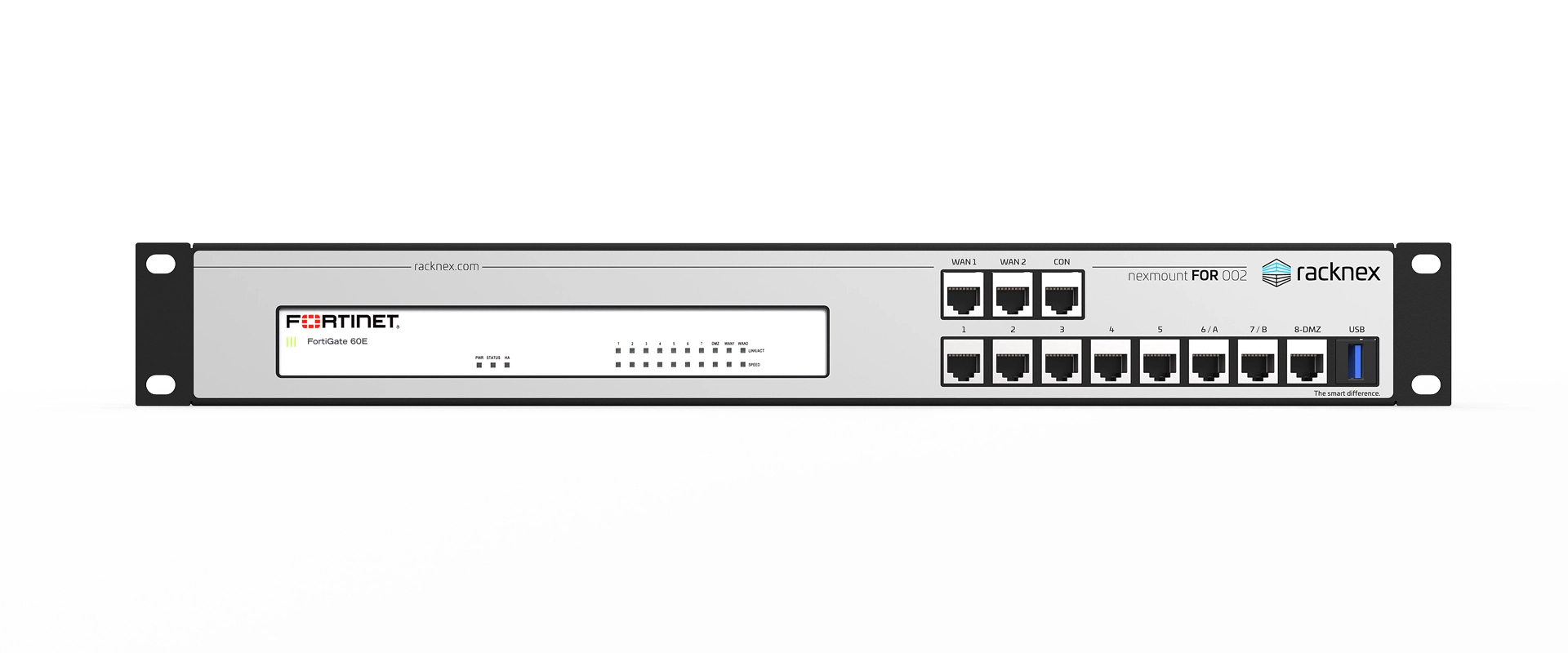

A front foil labels each connector of the FortiGate and gives a unique look.

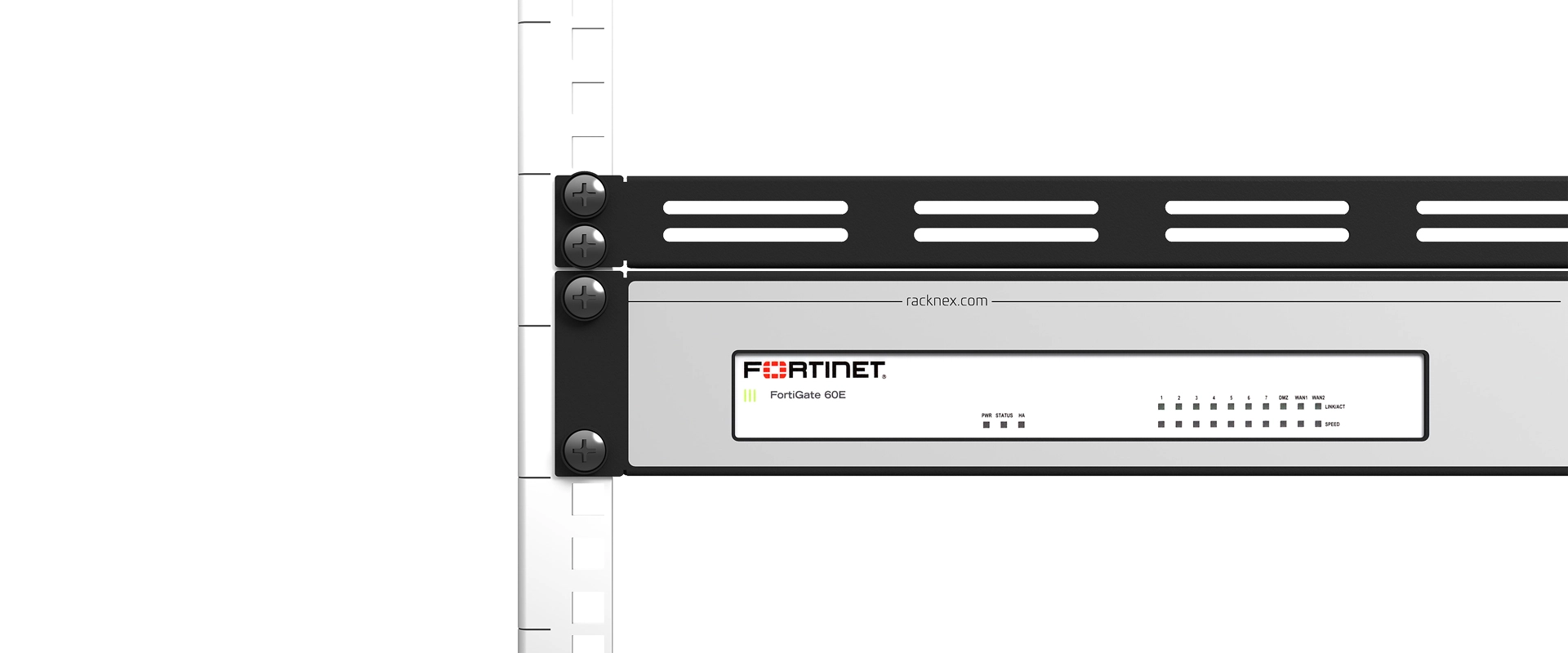

“NM-FOR-002” occupies 1.33U.
NM-FOR-002
Delivery time: 1-2 weeks In Stock
Supported Models:
Fortinet FortiGate 40F
Fortinet FortiGate 40F-3G4G
Fortinet FortiGate 41F
Fortinet FortiGate 41F-3G4G
Fortinet FortiGate 60E
Fortinet FortiGate 60E-DSL
Fortinet FortiGate 60E-PoE
Fortinet FortiGate 60F
Fortinet FortiGate 61E
Fortinet FortiGate 61F
Fortinet FortiGate 70F
Fortinet FortiGate 71F
Rack: 19 inch
Rack Unit: 1.33U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 58.2 x 210 mm
*) Dimensions = width/height/depth
Price starting from:
154,80 €
19″ Rack Mount Kit for FortiGate 40F/41F, 60F/61F, 70F/71F – NM-FOR-002
Rack Mount Kit “NM-FOR-002″ allows you to neatly mount your Fortinet Fortigate 40F, 41F, 60F, 61F, 70F and 71F with the associated power supply unit in a 19” rack.
The older FortiGate models 60E, 60E-DSL, 60E-PoE and 61E are also fully supported.
All connections are conveniently accessible on the front of the rack mount kit. This greatly simplifies further wiring in the rack.
You can configure the FortiGate Rack Mount Kit according to your needs.
Choose between unshielded or shielded connections and determine which cables you really need.
The FortiGate is mounted securely and non-slip on the rack mount kit using a special Strap System. Without using screws or other aids acting on the device.
The straps are fixed with high-quality Velcro. In combination with our spacer, a sufficient distance is created between the Velcro and the FortiGate to prevent damage to the housing.
This also prevents a possible loss of warranty.
Cutouts on the bottom and side surfaces of the rack mount kit ensure sufficient cooling in the system.
Even after attachment to the rack mount kit, the outlets are not covered by our screwless Strap System.
A front foil labels each connector of the FortiGate and gives a unique look.
“NM-FOR-002” occupies 1.33U.
