ASUS NUC 14 Pro+ Rackmount Kit | 2x Slot | 19 inch | 1.33U | Rail System 200mm
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).
The illustrations shown, partly with cables shown schematically, are symbolic representations. They can contain extras that are subject to a surcharge (see configurator).

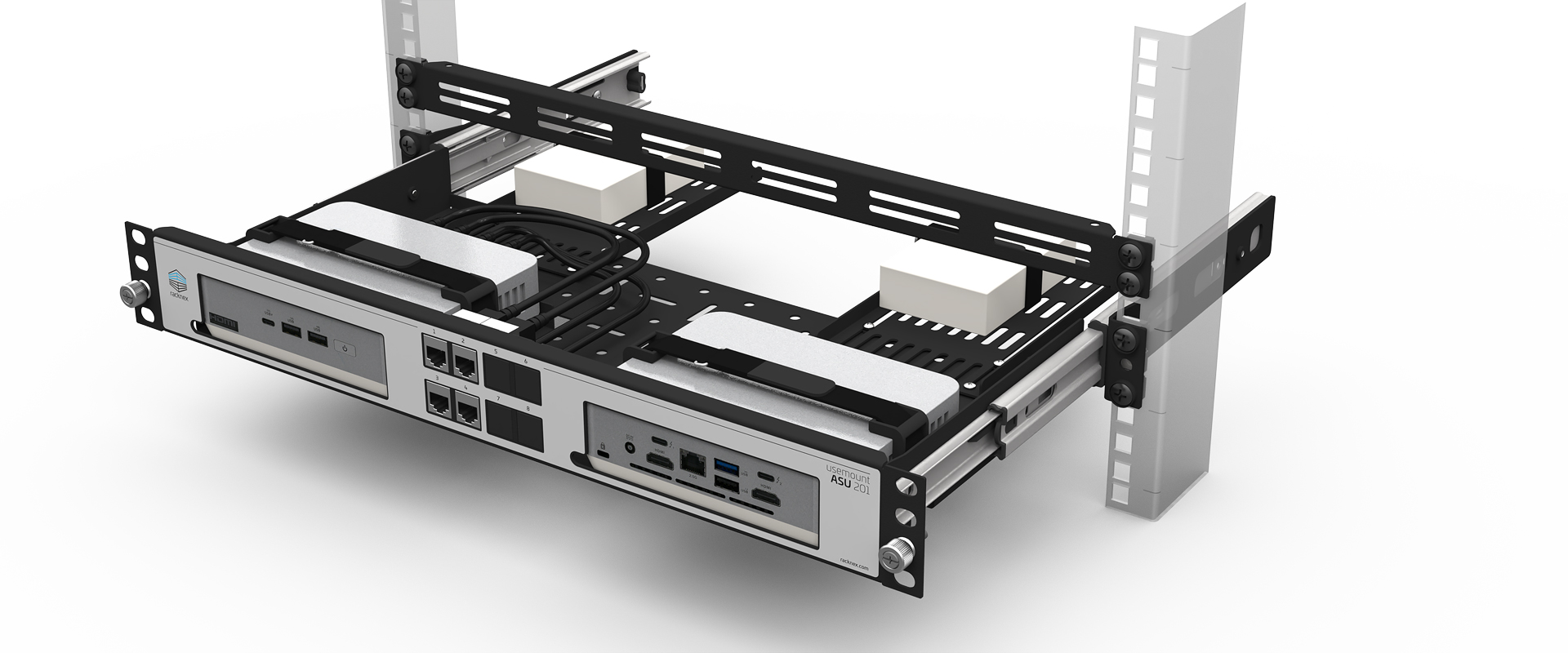

Mount two ASUS NUC 14 Pro+ in the 19 inch rack
The ASUS NUC Rack Mount Kit “UM-ASU-201” allows mounting two ASUS NUC 14 Pro+ on 1.33U in a 19 inch rack.
The ASUS NUCs can be mounted in either direction. The power button faces forward or the NUC ports face forward. If the NUC ports point to the front, the power supply cable can be routed in the small recess at the front. The ASUS NUCs themselves are gently attached to the rack mount kit with Velcro straps.
Four connectors per NUC can be routed to the front of the rackmount kit via a cable and keystone combination. Connectors come standard with blind covers and can be configured to match your exact ASUS NUC product model.
For neat cable management, the rackmount kit features holes directly behind the connectors. The included cable ties make it easy to secure cables to the rack mount kit. To help with air circulation, there are also cutouts where the NUC attaches to the rack mount kit.
Optionally, you can extend the rack mount kit by 200 mm with our “Rail System” or cover a free slot temporarily or permanently with a “Slot Cover”.
The ASUS NUCs are not included in the scope of delivery.
UM-ASU-201
Delivery time: 7-8 weeks
Supported Models:
ASUS NUC 14 Pro+
Rack: 19 inch
Rack Unit: 1.33U
Material: Steel
Color: Black RAL 9005
Dimensions*: 482.6 x 58.2 x 210 mm
*) Dimensions = width/height/depth
Price starting from:
177,72 €
Mount two ASUS NUC 14 Pro+ in the 19 inch rack
The ASUS NUC Rack Mount Kit “UM-ASU-201” allows mounting two ASUS NUC 14 Pro+ on 1.33U in a 19 inch rack.
The ASUS NUCs can be mounted in either direction. The power button faces forward or the NUC ports face forward. If the NUC ports point to the front, the power supply cable can be routed in the small recess at the front. The ASUS NUCs themselves are gently attached to the rack mount kit with Velcro straps.
Four connectors per NUC can be routed to the front of the rackmount kit via a cable and keystone combination. Connectors come standard with blind covers and can be configured to match your exact ASUS NUC product model.
For neat cable management, the rackmount kit features holes directly behind the connectors. The included cable ties make it easy to secure cables to the rack mount kit. To help with air circulation, there are also cutouts where the NUC attaches to the rack mount kit.
Optionally, you can extend the rack mount kit by 200 mm with our “Rail System” or cover a free slot temporarily or permanently with a “Slot Cover”.
The ASUS NUCs are not included in the scope of delivery.
